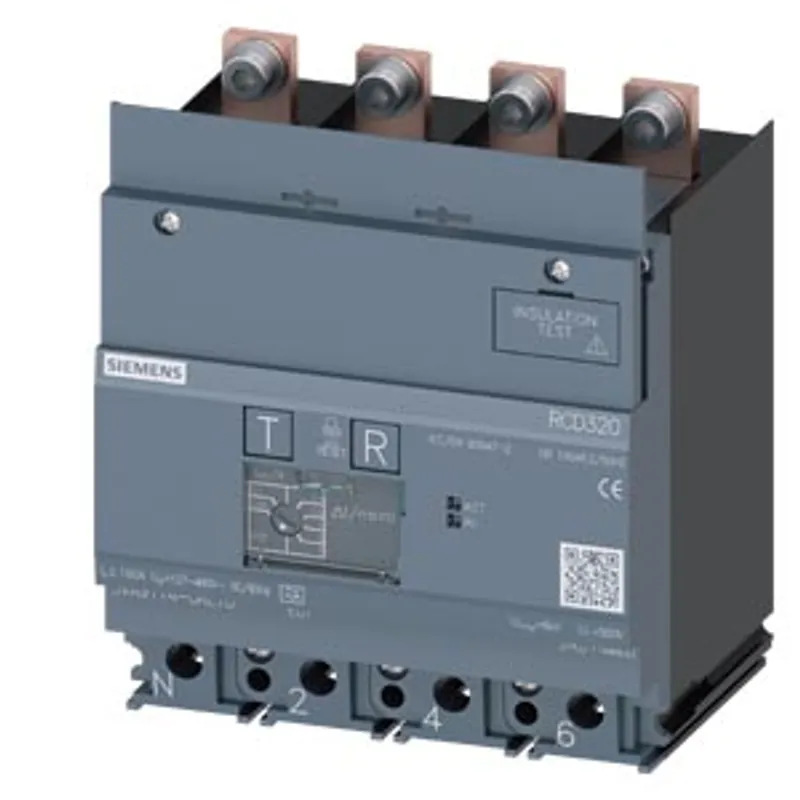

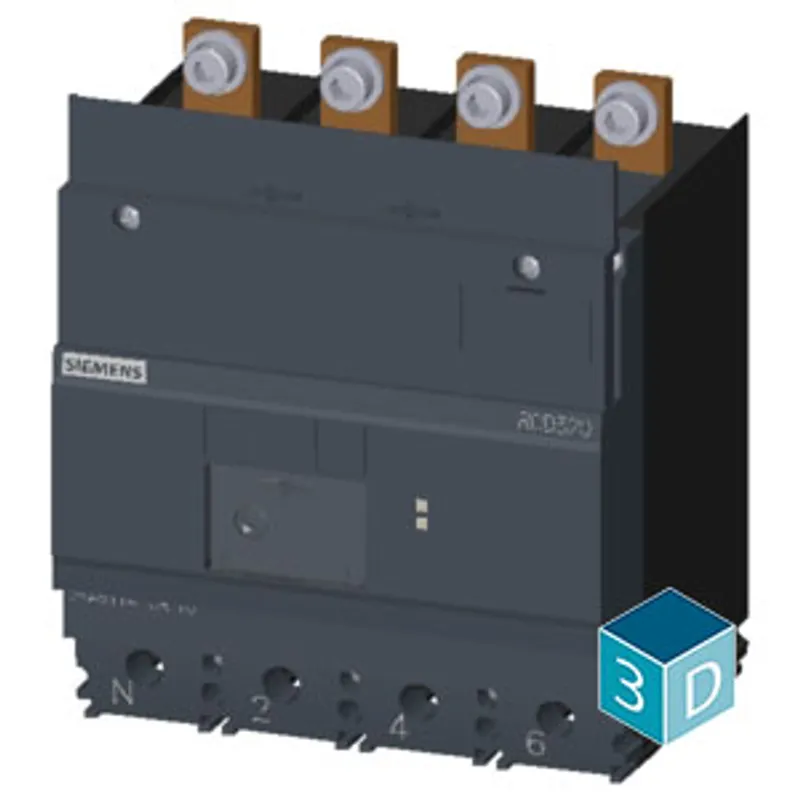

Siemens 3VA9114-0RL10

Residual current device RCD320 basic RCD type A loadside mounted rated resid. current 0.03...5 A at 50/60 Hz…

MPN: 3VA9114-0RL10
Category: Accessories and Spare Parts 3VA9, for IEC Circuit Breakers up to 1250A

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3VA9114-0RL10?

residual current device RCD320 basic RCD type A loadside mounted rated resid. current 0.03...5 A at 50/60 Hz tv instantaneous 4-pole In=160 A Ue=100-480 V accessory for: 3VA1

Specifications

Model

product brand name	SENTRON
product designation	Residual current protection device type A
accessories	Residual current protection module type A

General technical data

fastening method	screw fixing
number of poles	4
protection class IP / on the front	IP40

Voltage

supply voltage / at AC — minimum	127 V
supply voltage / at AC — maximum	480 V

Current

operational current / at AC / rated value	160 A
response value / of the residual current	0.03;0.05;0.1;0.3;0.5;1;3;5
product function / communication with residual current equipment	No
product function / integrated / alarm management	Yes
product function / integrated / alarm management	Pre-alarm indication 30%
product function / remote-controlled tripping	No
product feature / sealable	Yes
product function / selectable tripping characteristic	No
product function / selectable RCD or monitoring mode	No
position / of the infeed / on the RCD component	Top or bottom
type of electrical connection / for main current circuit	busbar connection
set values / of the limit value of not tripping time	0;

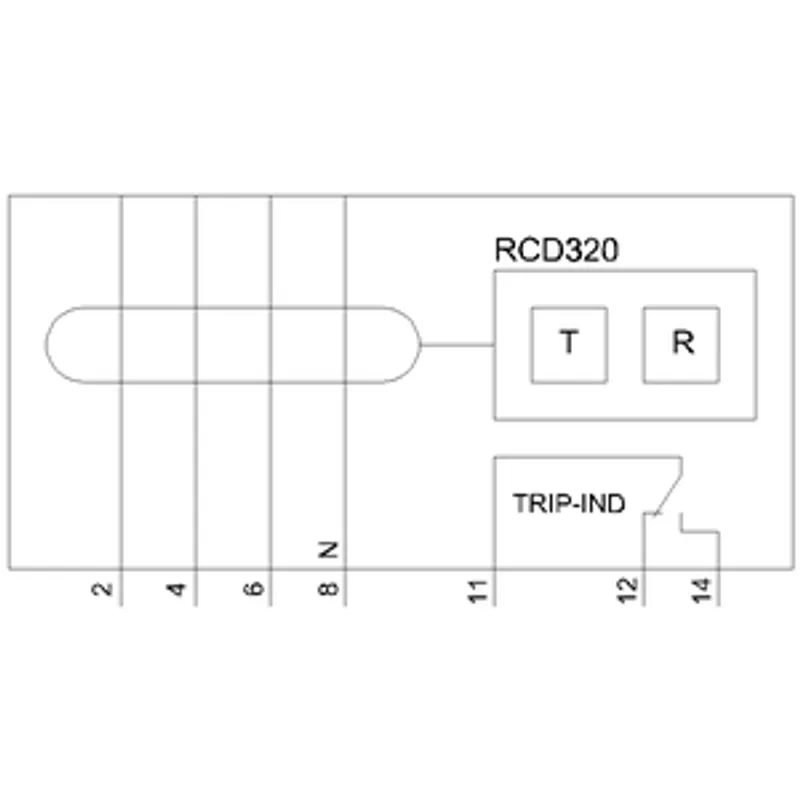

type of trip indicator / electrical	Yes
type of trip indicator / communication	No
power loss [W] / maximum	6.1 W
operating frequency / rated value / maximum	60 Hz
frequency / of fault current — minimum	50 Hz
frequency / of fault current — maximum	60 Hz

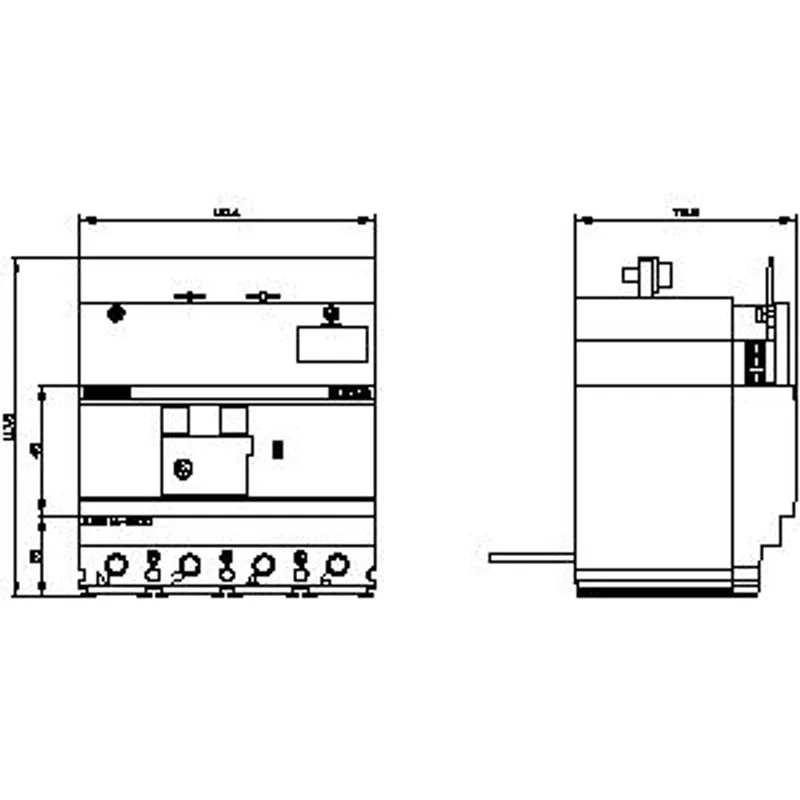

Mechanical Design

height	100 mm
width	101.5 mm
depth	70 mm
net weight	929 g
Net Weight	896 g

Connetctions according UL

ambient temperature / during operation — minimum	-25 °C
ambient temperature / during operation — maximum	70 °C
ambient temperature / during storage — minimum	-40 °C
ambient temperature / during storage — maximum	80 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3VA9114-0RL10PDF
