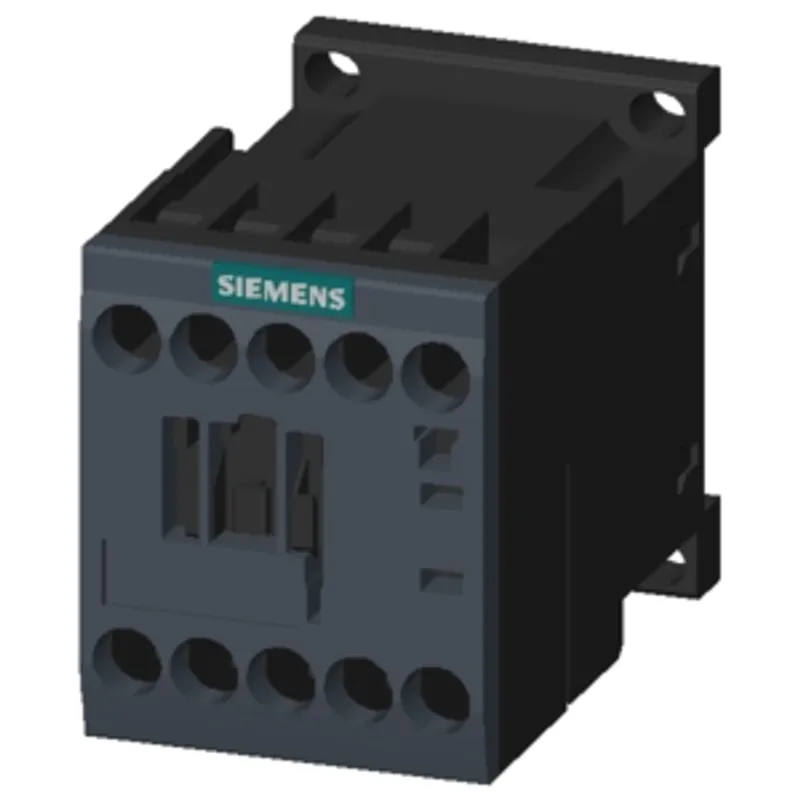

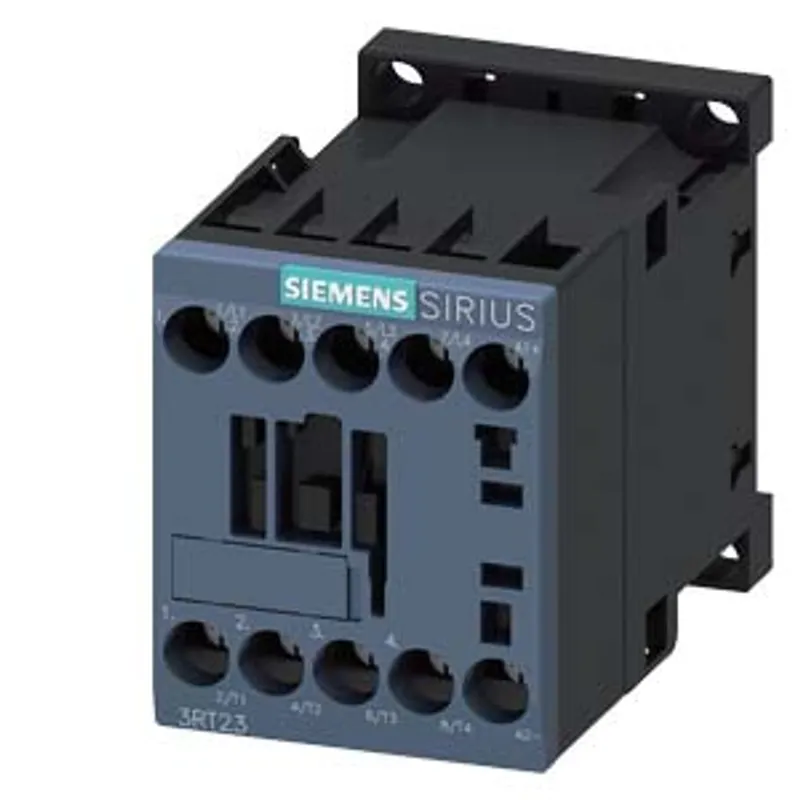

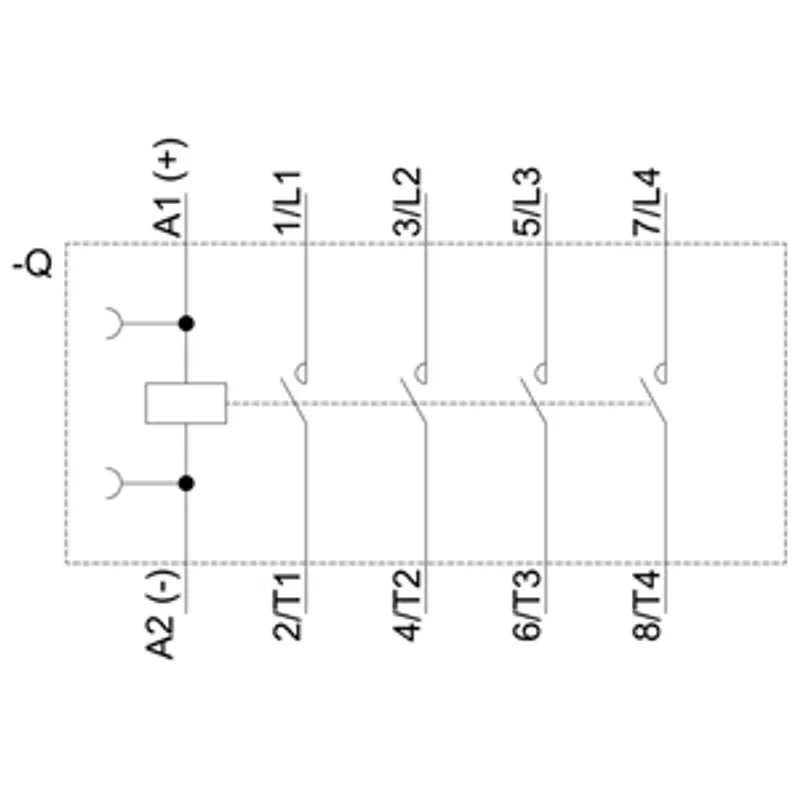

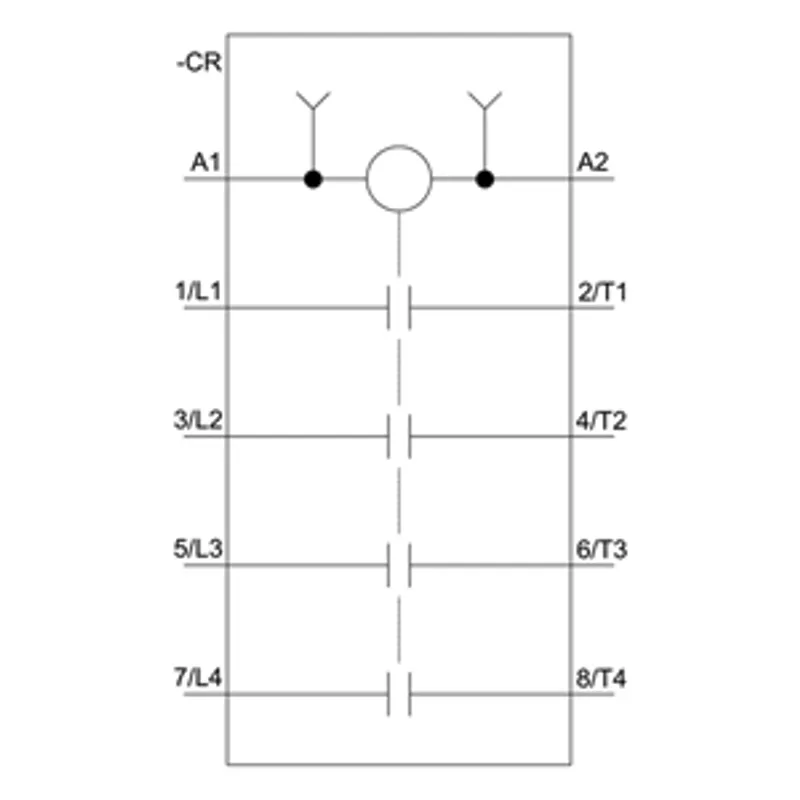

Siemens 3RT2317-1BM40
Contactor AC-1, 22 A, 400 V / 40 °C, 4-pole, 220 V DC, screw terminal, size: S00
- MPN
- 3RT2317-1BM40
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 3RT2317-1BM40?
contactor AC-1, 22 A, 400 V / 40 °C, 4-pole, 220 V DC, screw terminal, size: S00
Specifications
General
| product brand name | SIRIUS |
| product designation | Contactor |
| product type designation | 3RT23 |
General technical data
| size of contactor | S00 |
| product extension — function module for communication | No |
| product extension — auxiliary switch | Yes |
| power loss [W] for rated value of the current — at AC in hot operating state | 6.4 W |
| power loss [W] for rated value of the current — at AC in hot operating state per pole | 1.6 W |
| power loss [W] for rated value of the current — without load current share typical | 4 W |
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage — of main circuit with degree of pollution 3 rated value | 690 V |
| insulation voltage — of the auxiliary and control circuit with degree of pollution 3 rated value | 690 V |
| surge voltage resistance — of main circuit rated value | 6 kV |
| surge voltage resistance — of auxiliary circuit rated value | 6 kV |
| shock resistance at rectangular impulse — at DC | 7.3 g / 5 ms, 4.7 g / 10 ms |
| shock resistance with sine pulse — at DC | 11,4 g / 5 ms, 7,3g / 10 ms |
| mechanical service life (operating cycles) — of contactor typical | 30 000 000 |
| mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical | 10 000 000 |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| Net Weight | 0.277 kg |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -55 ... +80 °C |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
Main circuit
| number of poles for main current circuit | 4 |
| number of NO contacts for main contacts | 4 |
| type of voltage for main current circuit | AC |
| operational current — at AC-1 at 400 V at ambient temperature 40 °C rated value | 22 A |
| operational current — at AC-1 — up to 690 V at ambient temperature 40 °C rated value | 22 A |
| operational current — at AC-1 — up to 690 V at ambient temperature 60 °C rated value | 20 A |
| operational current — at AC-3 — at 400 V rated value | 12 A |
| operational current — at AC-4 at 400 V rated value | 8.5 A |
| minimum cross-section in main circuit at maximum AC-1 rated value | 4 mm² |
| operational current — at 1 current path at DC-1 — at 24 V rated value | 20 A |
| operational current — at 1 current path at DC-1 — at 60 V rated value | 20 A |
| operational current — at 1 current path at DC-1 — at 110 V rated value | 2.1 A |
| operational current — at 1 current path at DC-1 — at 220 V rated value | 0.8 A |
| operational current — at 1 current path at DC-1 — at 440 V rated value | 0.6 A |
| operational current — with 2 current paths in series at DC-1 — at 24 V rated value | 20 A |
| operational current — with 2 current paths in series at DC-1 — at 60 V rated value | 20 A |
| operational current — with 2 current paths in series at DC-1 — at 110 V rated value | 12 A |
| operational current — with 2 current paths in series at DC-1 — at 220 V rated value | 1.6 A |
| operational current — with 2 current paths in series at DC-1 — at 440 V rated value | 0.8 A |
| operational current — with 3 current paths in series at DC-1 — at 24 V rated value | 20 A |
| operational current — with 3 current paths in series at DC-1 — at 60 V rated value | 20 A |
| operational current — with 3 current paths in series at DC-1 — at 110 V rated value | 20 A |
| operational current — with 3 current paths in series at DC-1 — at 220 V rated value | 20 A |
| operational current — with 3 current paths in series at DC-1 — at 440 V rated value | 1.3 A |
| operational current — at 1 current path at DC-3 at DC-5 — at 24 V rated value | 20 A |
| operational current — at 1 current path at DC-3 at DC-5 — at 60 V rated value | 0.5 A |
| operational current — at 1 current path at DC-3 at DC-5 — at 110 V rated value | 0.15 A |
| operational current — with 2 current paths in series at DC-3 at DC-5 — at 24 V rated value | 20 A |
| operational current — with 2 current paths in series at DC-3 at DC-5 — at 60 V rated value | 5 A |
| operational current — with 2 current paths in series at DC-3 at DC-5 — at 110 V rated value | 0.35 A |
| operational current — with 3 current paths in series at DC-3 at DC-5 — at 24 V rated value | 20 A |
| operational current — with 3 current paths in series at DC-3 at DC-5 — at 60 V rated value | 20 A |
| operational current — with 3 current paths in series at DC-3 at DC-5 — at 110 V rated value | 20 A |
| operational current — with 3 current paths in series at DC-3 at DC-5 — at 220 V rated value | 1.5 A |
| operational current — with 3 current paths in series at DC-3 at DC-5 — at 440 V rated value | 0.2 A |
| operating power — at AC-3 at 400 V rated value | 5.5 kW |
| operating power — at AC-4 at 400 V rated value | 4 kW |
| no-load switching frequency — at DC | 10 000 1/h |
| operating frequency — at AC-1 maximum | 1 000 1/h |
Control circuit/ Control
| type of voltage | DC |
| type of voltage of the control supply voltage | DC |
| control supply voltage at DC rated value | 220 V |
| operating range factor control supply voltage rated value of magnet coil at DC — initial value | 0.8 |
| operating range factor control supply voltage rated value of magnet coil at DC — full-scale value | 1.1 |
| closing power of magnet coil at DC | 4 W |
| holding power of magnet coil at DC | 4 W |
| closing delay — at DC | 30 ... 100 ms |
| opening delay — at DC | 7 ... 13 ms |
| arcing time | 10 ... 15 ms |
| control version of the switch operating mechanism | Standard A1 - A2 |
Auxiliary circuit
| number of NC contacts for auxiliary contacts — attachable | 2 |
| number of NO contacts for auxiliary contacts — attachable | 2 |
Short-circuit protection
| design of the fuse link — for short-circuit protection of the main circuit — with type of coordination 1 required | gG: 35 A (690 V, 100 kA) |
| design of the fuse link — for short-circuit protection of the main circuit — with type of coordination 2 required | gG: 20 A (690 V, 100 kA) |

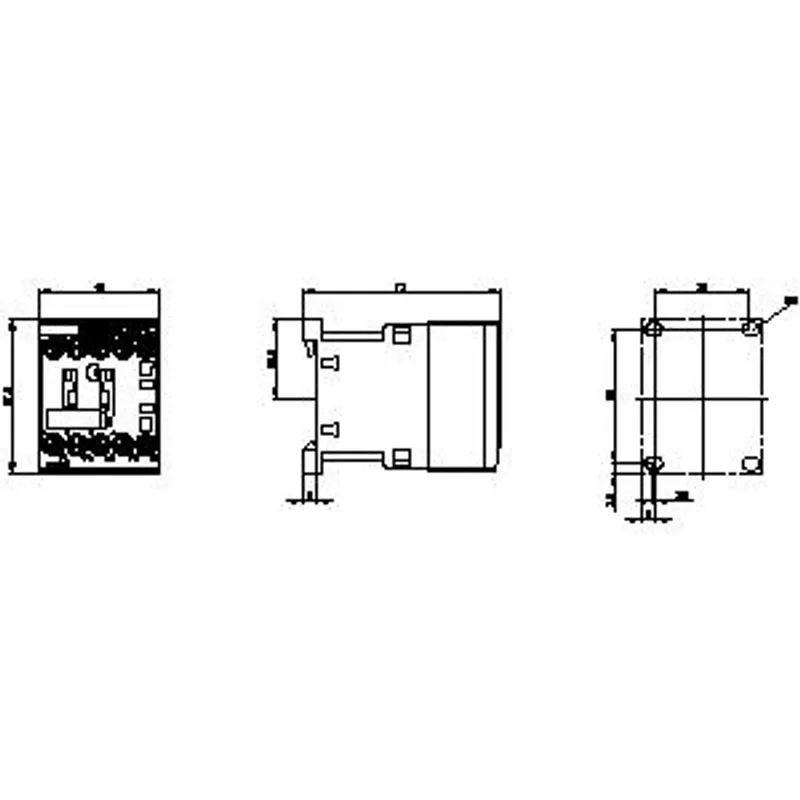

Installation/ mounting/ dimensions
| mounting position | +/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface |
| fastening method side-by-side mounting | Yes |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715 |
| height | 58 mm |
| width | 45 mm |
| depth | 73 mm |
| required spacing — with side-by-side mounting — forwards | 10 mm |
| required spacing — with side-by-side mounting — upwards | 10 mm |
| required spacing — with side-by-side mounting — downwards | 10 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 10 mm |
| required spacing — for grounded parts — upwards | 10 mm |
| required spacing — for grounded parts — at the side | 6 mm |
| required spacing — for grounded parts — downwards | 10 mm |
| required spacing — for live parts — forwards | 10 mm |
| required spacing — for live parts — upwards | 10 mm |
| required spacing — for live parts — downwards | 10 mm |
| required spacing — for live parts — at the side | 6 mm |
Connections/ Terminals
| type of electrical connection — for main current circuit | screw-type terminals |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of electrical connection — at contactor for auxiliary contacts | Screw-type terminals |
| type of electrical connection — of magnet coil | screw terminal |
| type of connectable conductor cross-sections — for main contacts — solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| type of connectable conductor cross-sections — for main contacts — solid or stranded | 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm² |
| type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables for main contacts | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| connectable conductor cross-section for main contacts — solid | 0.5 ... 4 mm² |
| connectable conductor cross-section for main contacts — solid or stranded | 0.5 ... 4 mm² |
| connectable conductor cross-section for main contacts — stranded | 0.5 ... 4 mm² |
| connectable conductor cross-section for main contacts — finely stranded with core end processing | 0.5 ... 2.5 mm² |
| connectable conductor cross-section for auxiliary contacts — solid or stranded | 0.5 ... 4 mm² |
| connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing | 0.5 ... 2.5 mm² |
| type of connectable conductor cross-sections — for auxiliary contacts — solid | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — solid or stranded | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm² |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary contacts | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| AWG number as coded connectable conductor cross section for main contacts | 20 ... 12 |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 20 ... 12 |
Safety related data
| product function — mirror contact according to IEC 60947-4-1 | Yes; with 3RH29 |
| product function — positively driven operation according to IEC 60947-5-1 | No |
| protection class IP on the front according to IEC 60529 | IP20 |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front |
Communication/ Protocol
| product function bus communication | No |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 1.55 kg |
| global warming potential [CO2 eq] / during operation | 183 kg |
| global warming potential [CO2 eq] / after end of life | -0.249 kg |
| global warming potential [CO2 eq] / total | 184 kg |
