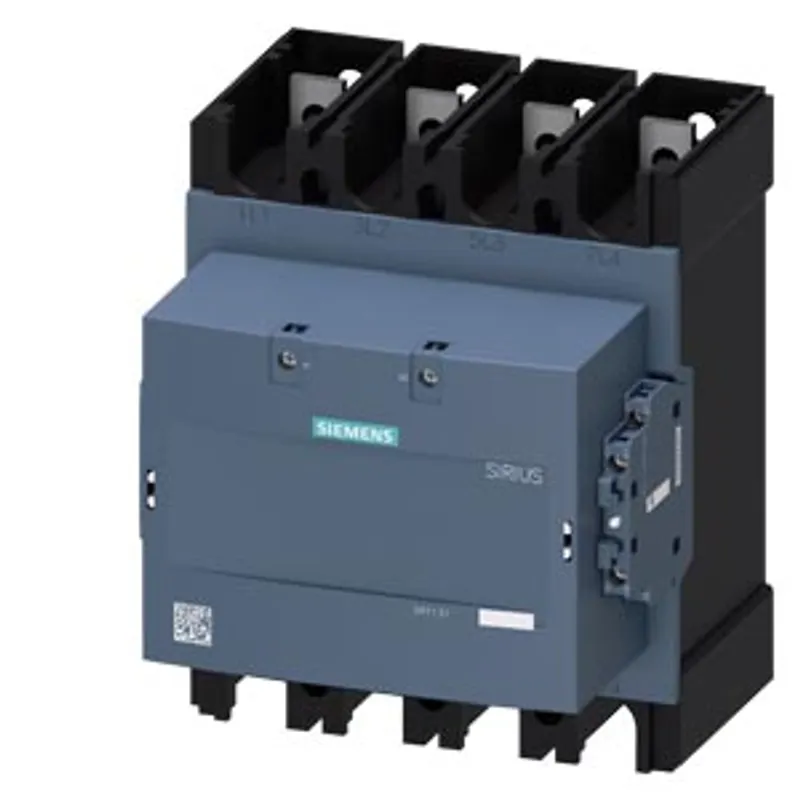

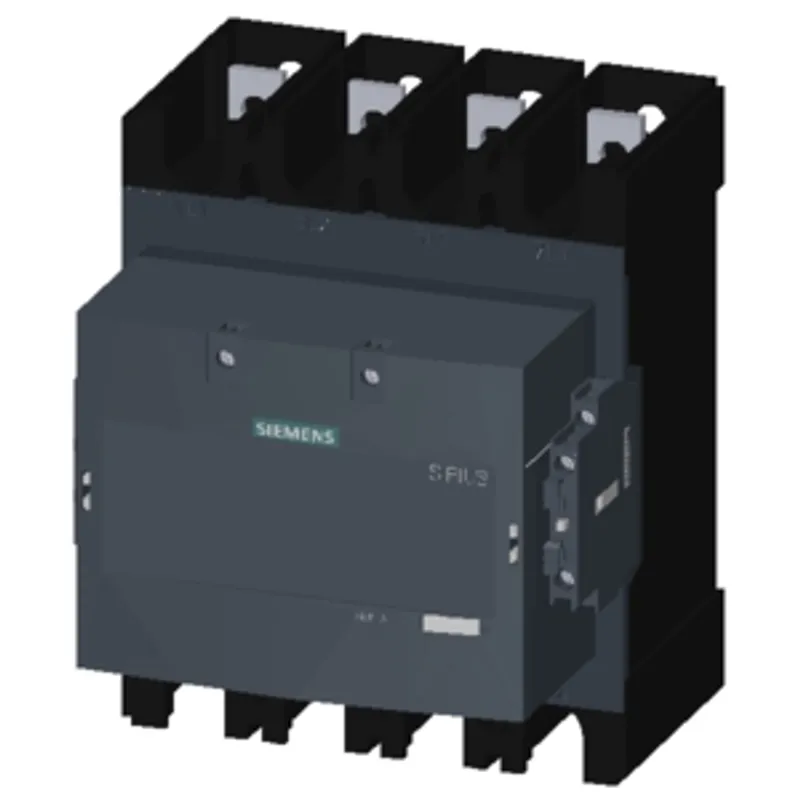

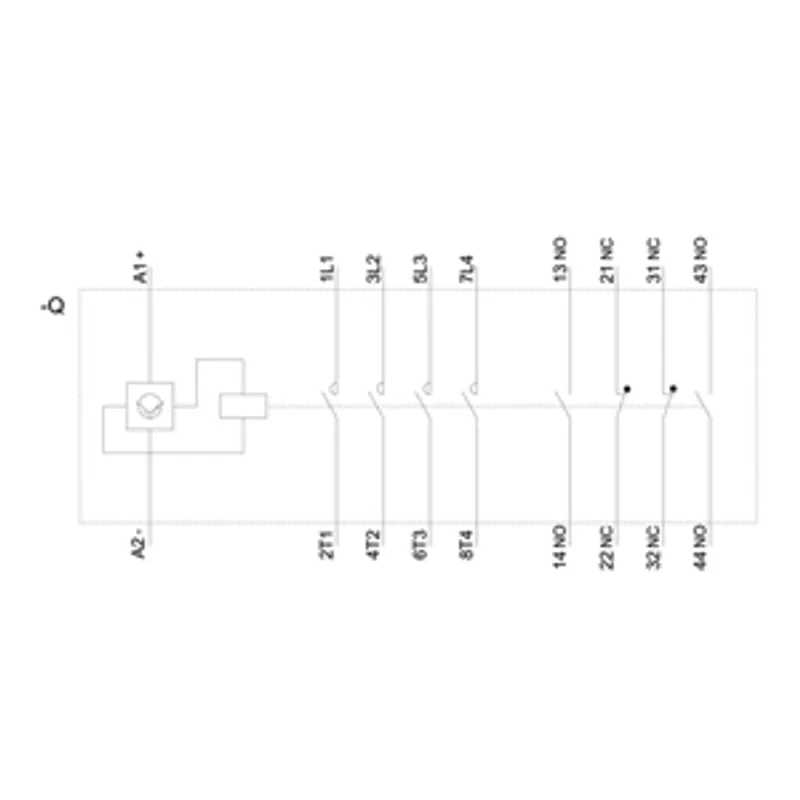

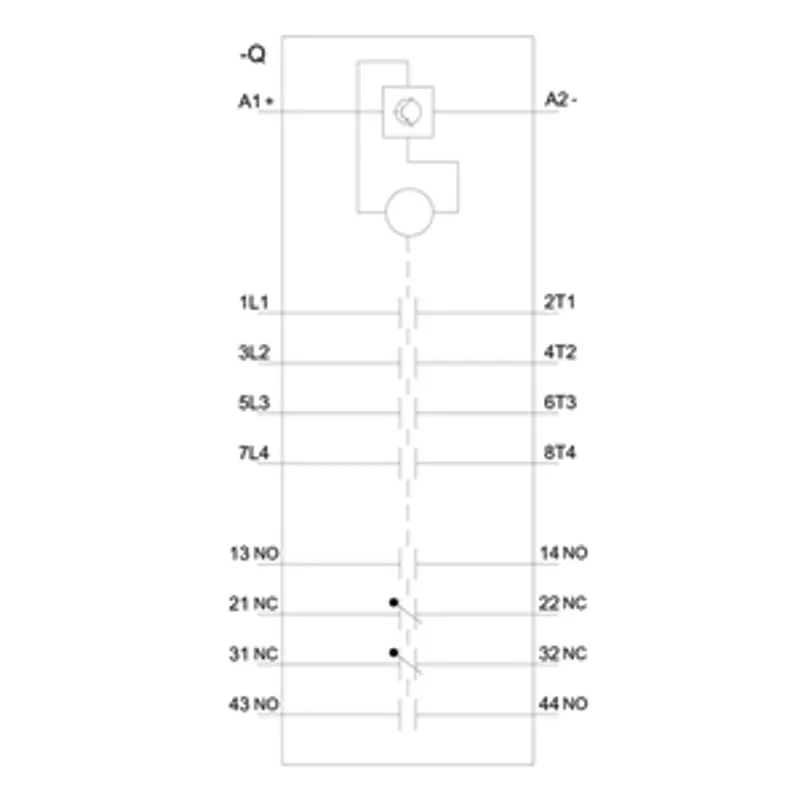

Siemens 3RT1374-6AE36
Contactor, AC-1, 500 A/400 V/40 °C, S12, 4-pole, 24-60 V AC, 20-60 V DC, 2 NO+2 NC
- MPN
- 3RT1374-6AE36
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Siemens 3RT1374-6AE36?
Contactor, AC-1, 500 A/400 V/40 °C, S12, 4-pole, 24-60 V AC, 20-60 V DC, 2 NO+2 NC, Connection rail/ screw terminal
Specifications
General
| product brand name | SIRIUS |
| product designation | Contactor |
| product type designation | 3RT13 |
General technical data
| size of contactor | S12 |
| product extension — function module for communication | No |
| product extension — auxiliary switch | Yes |
| power loss [W] for rated value of the current — at AC in hot operating state | 200 W |
| power loss [W] for rated value of the current — at AC in hot operating state per pole | 50 W |
| power loss [W] for rated value of the current — without load current share typical | 3.5 W |
| type of calculation of power loss current-dependent | quadratic |
| insulation voltage — of main circuit with degree of pollution 3 rated value | 1 000 V |
| insulation voltage — of the auxiliary and control circuit with degree of pollution 3 rated value | 690 V |
| surge voltage resistance — of main circuit rated value | 8 kV |
| surge voltage resistance — of auxiliary circuit rated value | 6 kV |
| reference code according to IEC 81346-2 | Q |
| Substance Prohibitance (day/month/year) | 03/27/2017 |
| Net Weight | 6.731 kg |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -40 ... +60 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
Main circuit
| number of poles for main current circuit | 4 |
| number of NO contacts for main contacts | 4 |
| type of voltage for main current circuit | AC |
| operational current — at AC-1 at 400 V at ambient temperature 40 °C rated value | 500 A |
| operational current — at AC-1 — up to 690 V at ambient temperature 40 °C rated value | 500 A |
| operational current — at AC-1 — up to 690 V at ambient temperature 60 °C rated value | 400 A |
| operational current — at AC-1 — up to 1000 V at ambient temperature 40 °C rated value | 375 A |
| operational current — at AC-1 — up to 1000 V at ambient temperature 60 °C rated value | 325 A |
| operational current — at AC-3 — at 400 V rated value | 305 A |
| minimum cross-section in main circuit at maximum AC-1 rated value | 300 mm² |
| operating power — at AC-3 at 400 V rated value | 160 kW |
| no-load switching frequency — at AC | 300 1/h |
| no-load switching frequency — at DC | 300 1/h |
Control circuit/ Control
| type of voltage | AC |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC — at 50 Hz rated value | 24 ... 60 V |
| control supply voltage at AC — at 60 Hz rated value | 24 ... 60 V |
| control supply voltage at DC rated value | 20 ... 60 V |
| operating range factor control supply voltage rated value of magnet coil at DC — initial value | 0.8 |
| operating range factor control supply voltage rated value of magnet coil at DC — full-scale value | 1.1 |
| operating range factor control supply voltage rated value of magnet coil at AC — at 50 Hz | 0.85 ... 1.1 |
| operating range factor control supply voltage rated value of magnet coil at AC — at 60 Hz | 0.85 ... 1.1 |
| design of the surge suppressor | with varistor |
| apparent pick-up power of magnet coil at AC — at 50 Hz | 475 V·A |
| apparent pick-up power of magnet coil at AC — at 60 Hz | 475 V·A |
| apparent holding power of magnet coil at AC — at 50 Hz | 8.5 V·A |
| apparent holding power of magnet coil at AC — at 60 Hz | 8.5 V·A |
| closing power of magnet coil at DC | 400 W |
| holding power of magnet coil at DC | 3.5 W |
| closing delay — at AC | 30 ... 60 ms |
| closing delay — at DC | 30 ... 60 ms |
| opening delay — at AC | 45 ... 80 ms |
| opening delay — at DC | 45 ... 80 ms |
| control version of the switch operating mechanism | Standard A1 - A2 |
Auxiliary circuit
| number of NC contacts for auxiliary contacts | 2 |
| number of NC contacts for auxiliary contacts — attachable | 2 |
| number of NC contacts for auxiliary contacts — instantaneous contact | 2 |
| number of NO contacts for auxiliary contacts | 2 |
| number of NO contacts for auxiliary contacts — attachable | 2 |
| number of NO contacts for auxiliary contacts — instantaneous contact | 2 |
| operational current at AC-15 — at 230 V rated value | 4 A |
| operational current at AC-15 — at 400 V rated value | 3 A |
| operational current at AC-15 — at 500 V rated value | 2 A |
| operational current at AC-15 — at 690 V rated value | 2 A |
| operational current at DC-13 — at 24 V rated value | 3 A |
| operational current at DC-13 — at 48 V rated value | 1.5 A |
| operational current at DC-13 — at 110 V rated value | 0.55 A |
| operational current at DC-13 — at 125 V rated value | 0.55 A |
| operational current at DC-13 — at 220 V rated value | 0.3 A |
UL/CSA ratings
| contact rating of auxiliary contacts according to UL | A600 / Q300 |
Short-circuit protection
| design of the fuse link — for short-circuit protection of the main circuit — with type of coordination 2 required | gG: 630 A (500 V, 100 kA) |
| design of the fuse link — for short-circuit protection of the auxiliary switch required | gG: 10 A (690 V, 1 kA) |

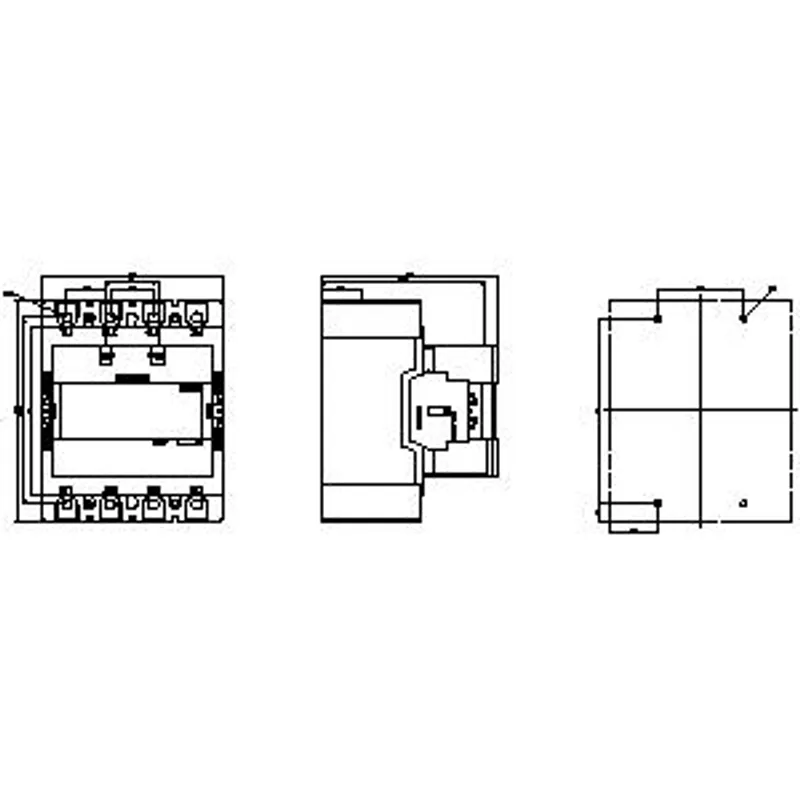

Installation/ mounting/ dimensions
| mounting position | For vertical mounting surface can be rotated +/-180°, and with 0° rotation can be tilted forward or backward +/- 30°, or standing |
| fastening method side-by-side mounting | Yes |
| fastening method | screw fixing |
| height | 225 mm |
| width | 184 mm |
| depth | 180 mm |
| required spacing — with side-by-side mounting — forwards | 20 mm |
| required spacing — with side-by-side mounting — upwards | 10 mm |
| required spacing — with side-by-side mounting — downwards | 10 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 20 mm |
| required spacing — for grounded parts — upwards | 10 mm |
| required spacing — for grounded parts — at the side | 10 mm |
| required spacing — for grounded parts — downwards | 10 mm |
| required spacing — for live parts — forwards | 20 mm |
| required spacing — for live parts — upwards | 10 mm |
| required spacing — for live parts — downwards | 10 mm |
| required spacing — for live parts — at the side | 10 mm |
| net weight | 6.5 kg |
Connections/ Terminals
| type of electrical connection — for main current circuit | Connection bar, broadened > 450A required |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of electrical connection — at contactor for auxiliary contacts | Screw-type terminals |
| type of electrical connection — of magnet coil | screw terminal |
| connectable conductor cross-section for auxiliary contacts — solid or stranded | 1 ... 4 mm² |
| connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing | 0.75 ... 2.5 mm² |
| type of connectable conductor cross-sections — for auxiliary contacts — solid | 1x (1 ... 4mm²), 2x (1 ... 4mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — solid or stranded | 1x (1 ... 4mm²), 2x (1 ... 4mm²) |
| type of connectable conductor cross-sections — for auxiliary contacts — finely stranded with core end processing | 1x (0.75 ... 2.5 mm²), 2x (0.75 ... 2.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables for auxiliary contacts | 1x (AWG 18 ... 14), 2x (AWG 18 ... 14) |
| AWG number as coded connectable conductor cross section for auxiliary contacts | 18 ... 14 |
Safety related data
| product function — mirror contact according to IEC 60947-4-1 | Yes |
| product function — positively driven operation according to IEC 60947-5-1 | No |
| protection class IP on the front according to IEC 60529 | IP00; IP20 with box terminal/cover |
| touch protection on the front according to IEC 60529 | finger-safe, for vertical contact from the front with box terminal/cover |
Communication/ Protocol
| product function bus communication | No |
