Home / Siemens / Accessories / Siemens 3NJ4915-2HA20

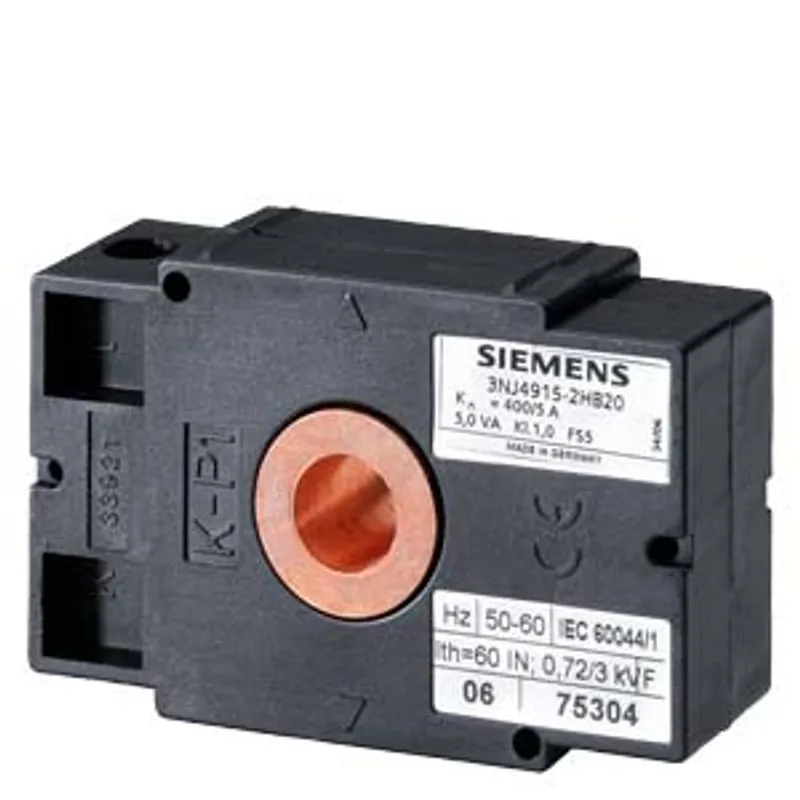

Siemens 3NJ4915-2HA20

Accessory for strips 3NJ41 In-line fuse switch disconnectors Sz

MPN: 3NJ4915-2HA20
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 3NJ4915-2HA20?

Accessory for strips 3NJ41 In-line fuse switch disconnectors Sz. NH1-3 Current transformers can be integrated 400/1 A, Cl. 1

Specifications

Model

product brand name	SENTRON
product designation	Current transformer
design of the product	accessory for fuse switch disconnector 3NJ41
operating voltage	0.72 kV
insulation voltage rated value	3 kV
designation of overcurrent limiting factor	FS 5
current — at input rated value	400 A
value range of the operating frequency	50/60 Hz

Protection class

protection class IP

IP20

Mechanical Design

height	80 mm
width	52 mm
depth	26 mm
Net Weight	224 g

Environmental conditions

ambient temperature during operation — minimum	-10 °C
ambient temperature during operation — maximum	55 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3NJ4915-2HA20PDF
