Accessories Parts
Compare Accessories
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | current — at input rated value | Net Weight |
|---|---|---|
| 3NJ4915-2KA20 | 600 A | 218 g |
| 3NJ4915-2KA11 | 600 A | 215 g |
| 3NJ4915-2KA10 | 600 A | 213 g |
| 3NJ4915-2JB20 | 500 A | 213 g |
| 3NJ4915-2JB10 | 500 A | 0.197 kg |
| 3NJ4915-2JA20 | 500 A | 200 g |
| 3NJ4915-2JA10 | 500 A | 196 g |
| 3NJ4915-2HB20 | 400 A | 221 g |
| 3NJ4915-2HB11 | 400 A | 201 g |
| 3NJ4915-2HB10 | 400 A | 200 g |

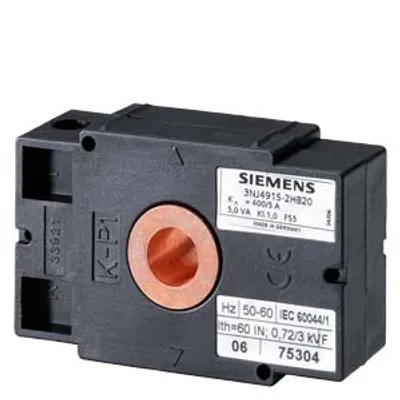

| 3NJ4915-2HA20 | 400 A | 224 g |
| 3NJ4915-2HA11 | 400 A | 233 g |
| 3NJ4915-2HA10 | 400 A | 228 g |
| 3NJ4915-2GB20 | 250 A | 217 g |

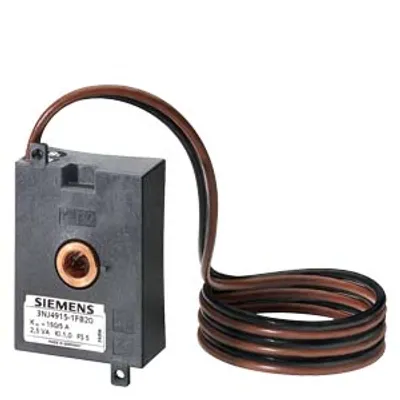

| 3NJ4915-2GB11 | 250 A | 0.203 kg |
Common to all listed parts
| product designation | Current transformer |
| design of the product | accessory for fuse switch disconnector 3NJ41 |
| operating voltage | 0.72 kV |
| insulation voltage rated value | 3 kV |
| designation of overcurrent limiting factor | FS 5 |
| value range of the operating frequency | 50/60 Hz |
| protection class IP | IP20 |
| height | 80 mm |
