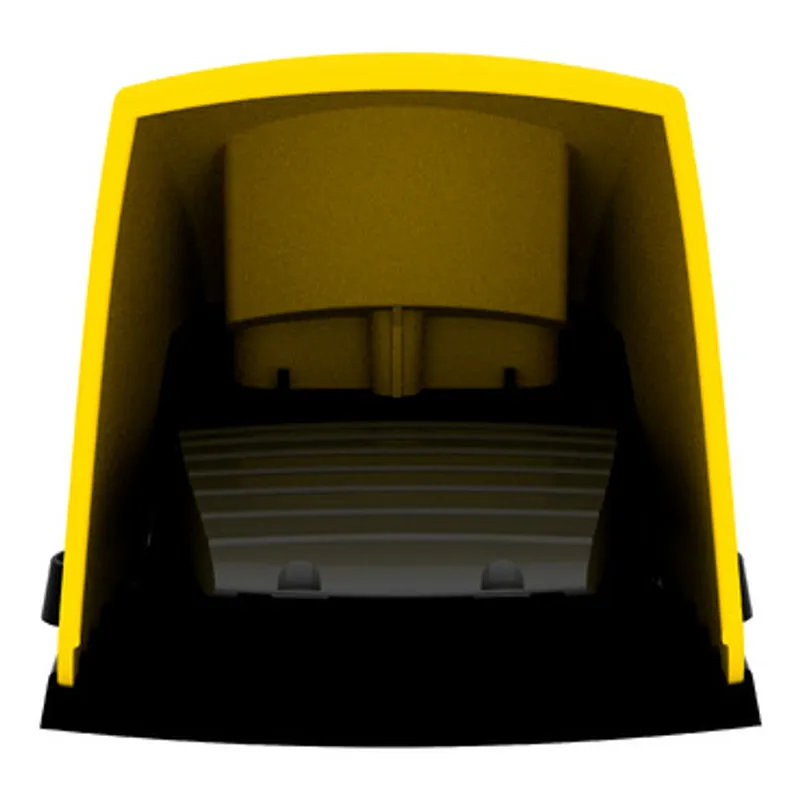

Schneider Electric XPEY510
Single foot switch, Harmony XPE, plastic, yellow, with cover, trigger mechanism, 1 step, 1 contact 1NC+NO, IP55
- MPN
- XPEY510
- EAN
- 3389110221145
- Category
- Harmony XPE
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric XPEY510?
This Harmony XPE consists of a yellow 1-step single-pedal plastic foot switch. It features 1NC+NO contact. This foot switch uses a trigger mechanism that requires positive action to allow pedal operation. It preserves the ergonomy of your machines, while ensuring their compliance with the latest safety standards. It provides long life in harsh conditions thanks to its resistance to hydraulic oil and various greases. The foot switch housing includes a protective cover. It weighs 0.700kg (1.543Ib). This foot switch is designed for bending machines, dosing machines, assembly stations, packaging machines, cutting presses, stamping presses, and machine tools. Harmony XPE offers a complete range of foot switches, with or without covers, to provide the appropriate resistance and protection for your applications.
Specifications
Specifications
| Range of product | Harmony XPE |
| Product or component type | Foot switch |
| Material | Plastic |
| Foot switch type | Single foot switch |
| Device short name | XPEY |
| Provided equipment | Cover |
| Trigger mechanism | With trigger mechanism |
| Contact operation | 1 step |
| Contacts type and composition | 1 NC + 1 NO |
| Colour | Yellow |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| Mechanical durability | 5000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Net weight | 0.7 kg |
| Protective treatment | TH |
| Ambient air temperature for operation | -25…55 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class II conforming to IEC 61140, Class II conforming to NF C 20-030 |
| IP degree of protection | IP55 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 29.000 cm × 17.500 cm × 17.000 cm (L × W × H), 883.000 g |
| Package 2 | 6 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 6.272 kg |
| Package 3 | 24 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 34.820 kg |
