Schneider Electric XPER911

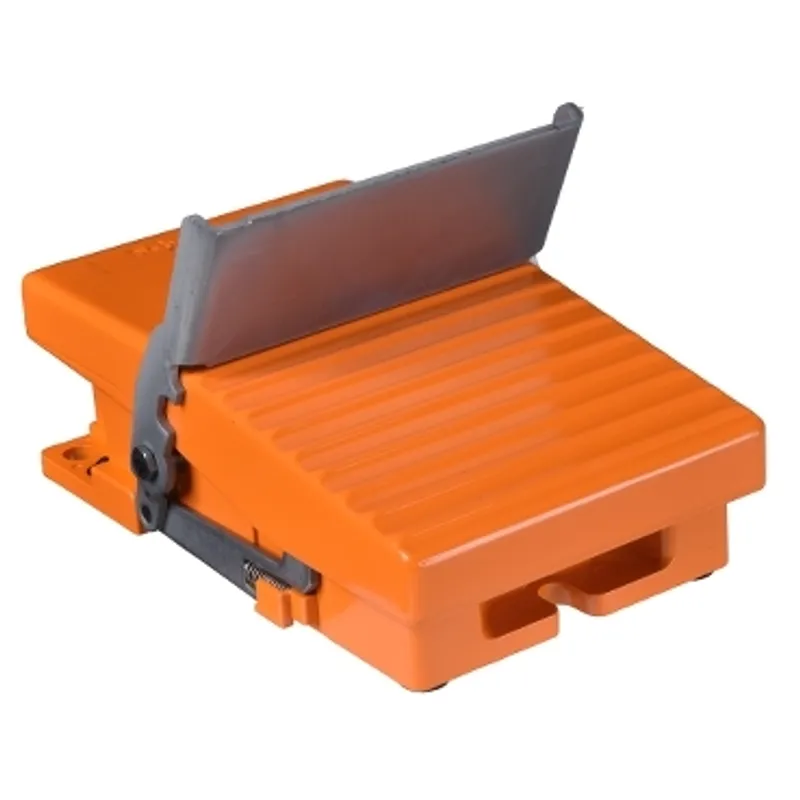

Single foot switch, Harmony XPE, metal, orange, without cover, trigger mechanism, 2 steps, 2 contacts 1NC+NO, IP66
- MPN
- XPER911
- EAN
- 3389110147469
- Category
- Harmony XPE
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original XPER911 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric XPER911?
This Harmony XPER911 is a single foot switch. Its degree of protection is IP66. It has no cover, metallic material, orange color, 2 NC + 2 NO. It is part of the range Harmony XPE foot switches - Control and signaling units for safety applications.
Specifications
Specifications
| Range of product | Harmony XPE |
| Product or component type | Foot switch |
| Material | Metal |
| Foot switch type | Single foot switch |
| Device short name | XPER |
| Trigger mechanism | With trigger mechanism |
| Contact operation | 2 steps |
| Contacts type and composition | 2 NC + NO |
| Colour | Orange |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Connections - terminals | Screw clamp terminal, <= 1 x 2.5 mm² with or without cable end, Screw clamp terminal, <= 2 x 1.5 mm² with or without cable end |
| cable entry | 2 entries tapped for Pg 16 cable gland |
| Mechanical durability | 15000000 cycles |
| [Ie] rated operational current | 3 A, 240 V, AC-15, A300, 0.27 A, 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1, 500 V (pollution degree 3) conforming to NF C 20-040 group C, 500 V (pollution degree 3) conforming to VDE 0110 group C, 300 V conforming to UL 508, 300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals | 25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1, 10 A cartridge fuse type gG conforming to VDE 0660-200 |
| Rated operational power in W | 10 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 24 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 4 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 120 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C, 7 W DC-13, operating rate <60 cyc/mn, 5000000 cycles, 48 V, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Net weight | 1.22 kg |
| Standards | IEC 60947-5-1, VDE 0660-200 |
| Product certifications | FIMKO |
| Protective treatment | TC |
| Ambient air temperature for operation | -25…70 °C |
| Ambient air temperature for storage | -40…70 °C |
| Vibration resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 150 gn conforming to NF E 09-031, 20 gn conforming to IEC 60068-2-27 |
| Overvoltage category | Class I conforming to IEC 61140, Class I conforming to NF C 20-030 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 19.500 cm × 16.500 cm × 16.200 cm (L × W × H), 1.625 kg |
| Package 2 | 6 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 10.709 kg |
| Package 3 | 24 P06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 52.508 kg |
