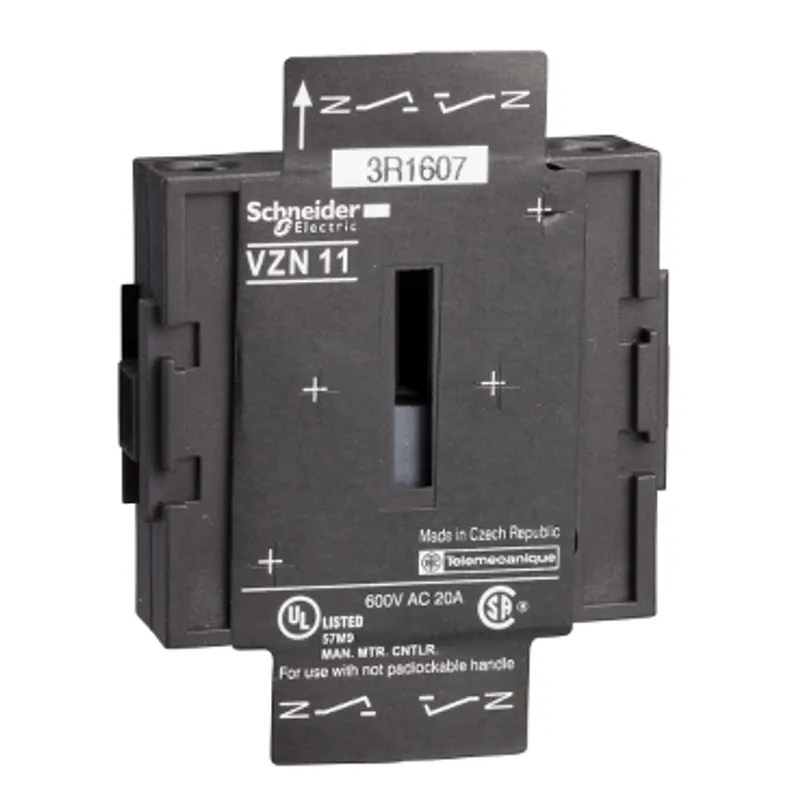

Schneider Electric VZN11
Additional neutral block,TeSys Control,20A,for VN12,VN20
- MPN
- VZN11
- EAN
- 3389110760019
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VZN11?
TeSys Vario add-on module, neutral pole 12-20A 690V, for TeSys mini-Vario switch-disconnectors. To be used with VN12 and VN20 switch bodies. Contacts with early make and late break action. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | VZN |
| Product or component type | Additional neutral block |
| Performance level | Standard |
| Poles description | 1N |
| Contacts type and composition | 1 NO |
| Contact operation | Early make, late break |
| Product compatibility | VN12, VN20 |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| Mounting location | Right |
| Range compatibility | TeSys TeSys VARIO VCFN switch disconnector |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ith] conventional free air thermal current | 20 A |
| [Ithe] conventional enclosed thermal current | 16 A |
| Mechanical durability | 50000 cycles |
| Electrical durability | 30000 cycles DC-1...5, 50000 cycles AC-21 |
| Connections - terminals | Screw clamp terminals4 mm² - flexible - with cable end, Screw clamp terminals4 mm² - solid |
| Tightening torque | 0.7 N.m - on screw clamp terminals |
| Height | 45.5 mm |
| Width | 12 mm |
| Depth | 39 mm |
| Net weight | 0.02 kg |
| Standards | IEC 60947-3 |
| Product certifications | CSA, GL, UL |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
Packaging
| Package 1 | 1 PCE, 7.500 cm × 5.700 cm × 2.700 cm (L × W × H), 22.000 g |
| Package 2 | 70 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 1.794 kg |
