Schneider Electric VZ7

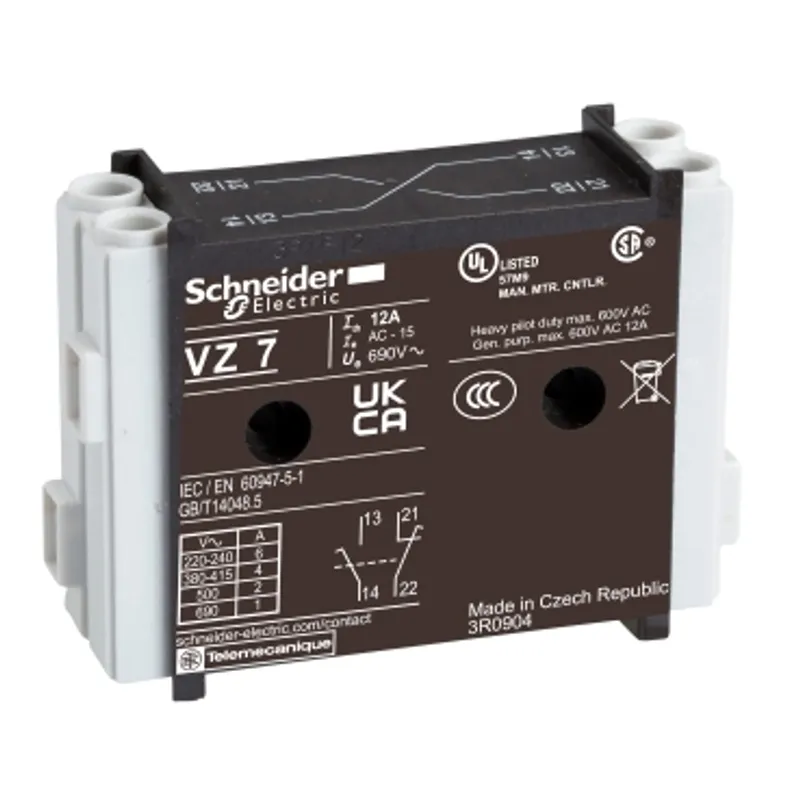

Auxiliary contact block,TeSys Control,1 NC early break+1 NO late make,for V02-V6
- MPN
- VZ7
- EAN
- 3389110551969
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VZ7?
TeSys Vario add-on module, auxiliary contact block, for TeSys Vario V02 to V6 switch bodies. It provides 1NO+1NC contacts (late make NO, early break NC) rated for AC operation until 12A/690V and DC operation until 8A/250V. To be mounted on one side of the switch body. A maximum of 2 additional auxiliary contact block modules VZ7 or VZ20 can be attached to the switch body, one in each side. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | VZ |
| Product or component type | Auxiliary contact block |
| Performance level | High performance |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Late-make 1 NO, Early-break 1 NC |
| Product compatibility | V2, V5, V02, V6, V1, V4, V01, V0, V3 |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| Mounting location | Left, Right |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 12 A |
| [Ithe] conventional enclosed thermal current | 10 A |
| Mechanical durability | 100000 cycles |
| Electrical durability | 30000 cycles DC-11, 100000 cycles AC-15 |
| Connections - terminals | Screw clamp terminals 2 cable(s) 0.75…1.5 mm² - flexible - with cable end, Screw clamp terminals 2 cable(s) 1…2.5 mm² - solid |
| Tightening torque | 0.7 N.m - on screw clamp terminals |
| Height | 65 mm |
| Width | 20 mm |
| Depth | 48.5 mm |
| Net weight | 0.05 kg |
| Standards | IEC 60947-5 |
| Product certifications | GL, CSA, UL, UKCA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20…50 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 3.700 cm × 5.500 cm (L × W × H), 52.000 g |
| Package 2 | 69 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.931 kg |
