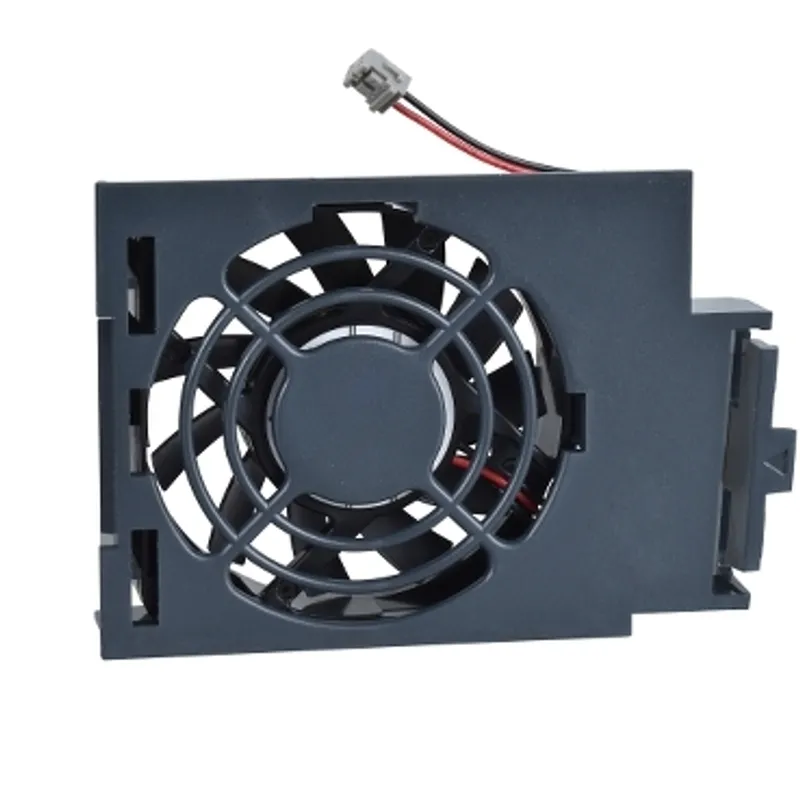

Wear part, fan kit for variable speed drive, Altivar 212, Altivar 312, from 5.5 to 11kW, three phase
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Altivar 312 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.29 kg |
Shipping & availability
When can VZ3V3103 be shipped?
VZ3V3103 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VZ3V3103 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VZ3V3103 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VZ3V3103, subject to availability and destination.
This product is a wear part for Drive Altivar 212, Altivar 312. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV212 from 5.5kw to 11kw and a rated voltage from 200V to 480V, for Altivar 312 from 5.5kw to 7.5kw and a rated voltage from 200V to 600V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 7cm (width) x 23cm (Length) x 17cm (Height) and weighs 293g. This power fan is compatible with ATV312HU22M2, ATV312HU30M3, HU40M3, ATV312HU22N4, HU40N4, ATV312HU22S6, HU40S7. This kit includes 1 Fan, 1 Mounting bracket, 1 Instruction sheet. The Altivar 212 is a variable speed drive for 3-phase asynchronous motors from 0.75 kW to 75 kW. Specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC). Energy savings of up to 70% can be achieved compared to a traditional control system, thanks to eco-energy design. The Altivar 312 is designed for robustness and compatibility with the control system architectures of your machines.
Specifications
Specifications
| Range compatibility | Altivar 212, Altivar 312 |
| Accessory / separate part type | Fan kit |
| Accessory / separate part category | Cooling accessory |
| Product or component type | Fan |
| Net weight | 0.29 kg |
| Kit composition | Fan, Mounting bracket, Instruction sheet |
| Product compatibility | Variable speed drive ATV312 5.5…7.5 kW 200...240 V three phase, Variable speed drive ATV312 5.5…7.5 kW 380...500 V three phase, Variable speed drive ATV312 5.5…7.5 kW 525...600 V three phase, Variable speed drive ATV212 5.5…7.5 kW 200...240 V three phase, Variable speed drive ATV212 7.5…11 kW 380...480 V three phase |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 17.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 290.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 7 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 2.517 kg |
| Warranty (in months) | 18 |
