What is the Schneider Electric VZ01?

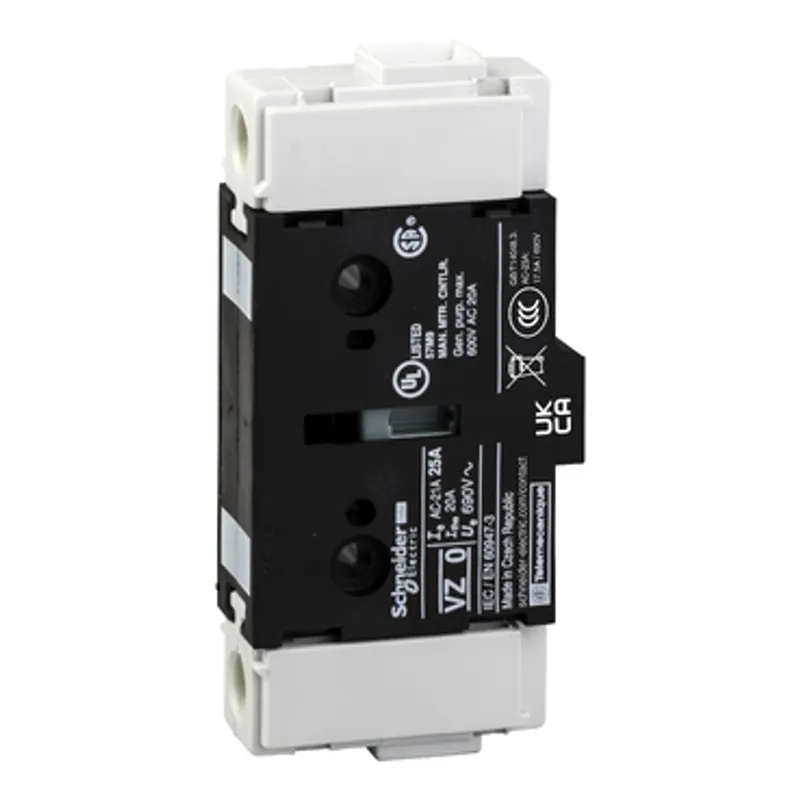

TeSys Vario add-on module, main pole 20A 690V, for Vario switch-disconnectors. To be used with V01 switch bodies. A maximum of 3 additional VZ01 modules can be attached to the switch body. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | VZ |
| Product or component type | Additional pole |
| Performance level | High performance |
| Poles description | 1P |
| Contacts type and composition | 1 NO |
| Product compatibility | V01 |
| Range compatibility | TeSys TeSys VARIO switch disconnector |
| Network type | DC, AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes |
| Mounting location | Left, Right |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 20 A |
| [Ithe] conventional enclosed thermal current | 16 A |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-21, 30000 cycles DC-1...5 |
| Connections - terminals | Power circuit: screw clamp terminals6 mm² - flexible - with cable end, Power circuit: screw clamp terminals10 mm² - solid |
| Tightening torque | Power circuit: 2.1 N.m - on screw clamp terminals |
| Height | 74 mm |
| Width | 16 mm |
| Depth | 35 mm |
| Net weight | 0.05 kg |
| Standards | IEC 60947-3 |
| Product certifications | GL, CSA, UL, UKCA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
Packaging
| Package 1 | 1 PCE, 5.5 cm × 9.0 cm × 3.7 cm (L × W × H), 46.0 g |
| Package 2 | 69 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 3.576 kg |
