Schneider Electric VZ0

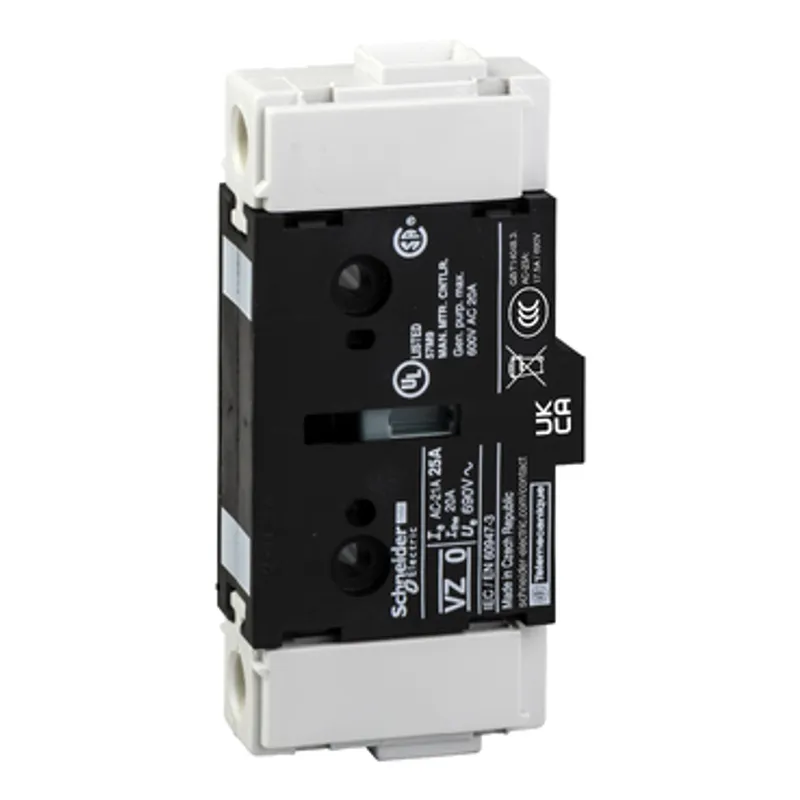

Additional pole,TeSys Control,25A,for V0
- MPN
- VZ0
- EAN
- 3389110551853
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VZ0?
TeSys Vario add-on module, main pole 25A 690V, for Vario switch-disconnectors. To be used with V0 switch bodies. A maximum of 3 additional VZ0 modules can be attached to the switch body. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | VZ |
| Product or component type | Additional pole |
| Performance level | High performance |
| Poles description | 1P |
| Contacts type and composition | 1 NO |
| Product compatibility | V0 |
| Range compatibility | TeSys TeSys VARIO switch disconnector |
| Network type | AC, DC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes |
| Mounting location | Left, Right |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ith] conventional free air thermal current | 25 A |
| [Ithe] conventional enclosed thermal current | 20 A |
| Mechanical durability | 100000 cycles |
| Electrical durability | 100000 cycles AC-21, 30000 cycles DC-1...5 |
| Connections - terminals | Power circuit: screw clamp terminals6 mm² - flexible - with cable end, Power circuit: screw clamp terminals10 mm² - solid |
| Tightening torque | Power circuit: 2.1 N.m - on screw clamp terminals |
| Height | 74 mm |
| Width | 16 mm |
| Depth | 35 mm |
| Net weight | 0.05 kg |
| Standards | IEC 60947-3 |
| Product certifications | GL, UL, CSA, UKCA |
| Protective treatment | TC |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 3.700 cm × 5.500 cm (L × W × H), 47.000 g |
| Package 2 | 69 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.563 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
VZ0: frequently asked questions
When can VZ0 be shipped?
VZ0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VZ0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VZ0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VZ0, subject to availability and destination.
