Schneider Electric VBDN12

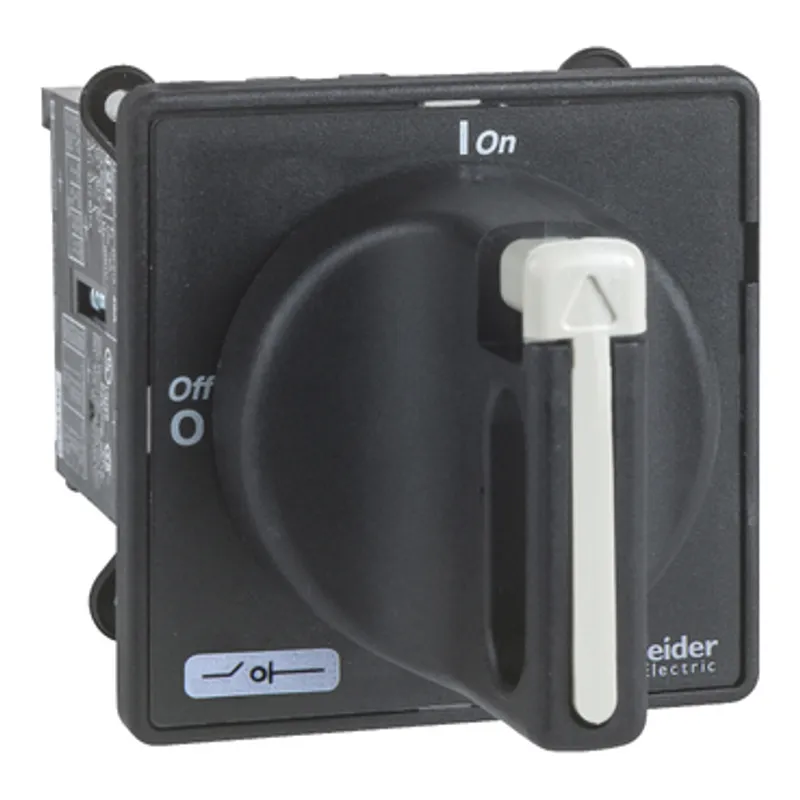

Switch-disconnectors,TeSys Control,for ON/OFF,12A(VN12),fixing by single hole Ø22.5mm,for mounting on door
- MPN
- VBDN12
- EAN
- 3389110759853
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VBDN12?
TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body VN12, a black handle with black 60x60mm front plate KAD1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Product name | TeSys Mini-VARIO |
| Device short name | VBDN |
| Product or component type | Switch disconnector |
| Performance level | Standard |
| Poles description | 3P |
| Contacts type and composition | 3 NO |
| Network type | AC, DC |
| Control type | Rotary handle |
| Rotary handle mounting style | Direct |
| Handle colour | Black |
| Handle front plate colour | Black |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Mounting support | Handle: door, Switch: door |
| Fixing mode | Hole with 22.5 mm for handle |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ith] conventional free air thermal current | 12 A |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ie] rated operational current | 8.1 A (AC-23) at 400 V |
| Rated operational power in W | 3 kW at 230...240 V (AC-23A), 4 kW at 400...415 V (AC-23A), 5.5 kW at 500 V (AC-23A), 7.5 kW at 690 V (AC-23A), 1.5 kW at 230...240 V (AC-3), 3 kW at 400...415 V (AC-3), 4 kW at 500 V (AC-3), 4 kW at 690 V (AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I Rms) | 120 A at 400 V AC-21A, 120 A at 400 V AC-22A, 120 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 0.5 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 140 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 6 kA at 400 V - associated fuse 12 A aM, 6 kA at 400 V - associated fuse 12 A gG |
| Breaking capacity | 120 kA at 400 V (AC-21A), 120 kA at 400 V (AC-22A), 120 kA at 400 V (AC-23A) |
| Device composition | Switch, Handle |
| Mechanical durability | 50000 cycles |
| Electrical durability | 30000 cycles DC-1...5, 50000 cycles AC-21 |
| Suitability for isolation | Yes |
| Connections - terminals | Power circuit: screw clamp terminals4 mm² - flexible - with cable end, Power circuit: screw clamp terminals4 mm² - solid |
| Tightening torque | Power circuit: 0.7 N.m - on screw clamp terminals |
| handle front plate dimension | 60 x 60 mm |
| Height | 60 mm |
| Width | 60 mm |
| Net weight | 0.177 kg |
| Standards | IEC 60947-3 |
| Product certifications | UL, GL, CCC, CSA, UKCA |
| Protective treatment | TC |
| IP degree of protection | IP65 |
| Mechanical robustness | Vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6, Shocks 11 ms (15 gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
Packaging
| Package 1 | 1 PCE, 12.0 cm × 8.5 cm × 8.0 cm (L × W × H), 178.0 g |
| Package 2 | 24 S03, 40.0 cm × 30.0 cm × 30.0 cm (L × W × H), 4.776 kg |
