Schneider Electric VBD1
Switch-disconnectors,TeSys Control,for ON/OFF,32A,fixing by single hole Ø22.5mm,for mounting on door
- MPN
- VBD1
- EAN
- 3389110724936
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric VBD1?

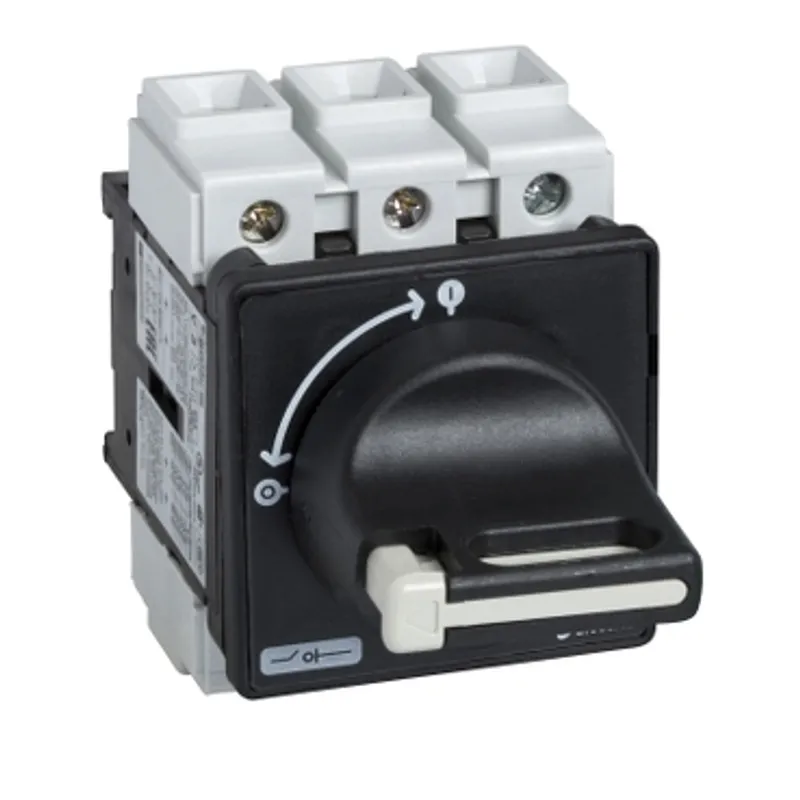

TeSys Vario switch disconnector for door mounting, 3 poles, 32A/690V, for motor switching applications up to 11kW@400V AC-23. Complete unit composed of a switch body V1, a black handle with black 60x60mm front plate KAD1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Product Name | TeSys VARIO |
| Device Short Name | VBD |
| Device Application | Preventive maintenance |
| Product Type | Switch disconnector |
| Device Composition | Switch, Handle |
| Mounting Support | Handle: door, Switch: door |
| Mounting Method | Hole with 22.5 mm for handle |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 11 kW at 500 V (AC-23A), 15 kW at 690 V (AC-23A), 7.5 kW at 500 V (AC-3), 7.5 kW at 690 V (AC-3), 1.5 kW at 230...240 V (AC-3), 5.5 kW at 230...240 V (AC-23A), 11 kW at 400...415 V (AC-23A), 7.5 kW at 400...415 V (AC-3) |
| [Ie] Rated Operational Current | 21.8 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 32 A |
| [Ithe] Conventional Enclosed Thermal Current | 25 A |
| Making Capacity ( I Rms) | 320 A at 400 V AC-21A, 320 A at 400 V AC-22A, 320 A at 400 V AC-23A |
| Breaking Capacity | 250 A at 400 V (AC-21A), 250 A at 400 V (AC-22A), 250 A at 400 V (AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA at 400 V - associated fuse 35 A aM, 10 kA at 400 V - associated fuse 35 A gG |
| [Icm] Rated Short Circuit Making Capacity | 1 kA at 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 384 A at 400 V duration: 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Yes |
| Network Type | DC, AC |
| Intermittent Duty Class | 30 |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Direct |
| Handle Color | Black |
| Handle Front Plate Color | Black |
| Rotary Handle Padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Mechanical Durability | 100000 cycles |
| Electrical Durability | 100000 cycles AC-21, 30000 cycles DC-1...5 |
| IEC Terminal Connection | Power circuit: screw clamp terminals10 mm² - solid, Power circuit: screw clamp terminals6 mm² - flexible - with cable end |
| Tightening Torque | Power circuit: 2.1 N.m - on screw clamp terminals |
| Base Dimension | 60 x 60 mm |
| Height | 74 mm |
| Width | 60 mm |
| Product Weight | 0.215 kg |
| Standards | IEC 60947-3 |
| Product Certifications | UL, GL, CSA, CCC, UKCA |
| Degree of Protection | IP20 conforming to IEC 60529, IP65 |
| Protective Treatment | TC |
| Mechanical Robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -20…50 °C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Compatibility Code | Main switch disconnector |
Packaging
| Package 1 | 1 PCE, 12.000 cm × 8.500 cm × 8.000 cm (L × W × H), 225.900 g |
| Package 2 | 24 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 5.841 kg |
