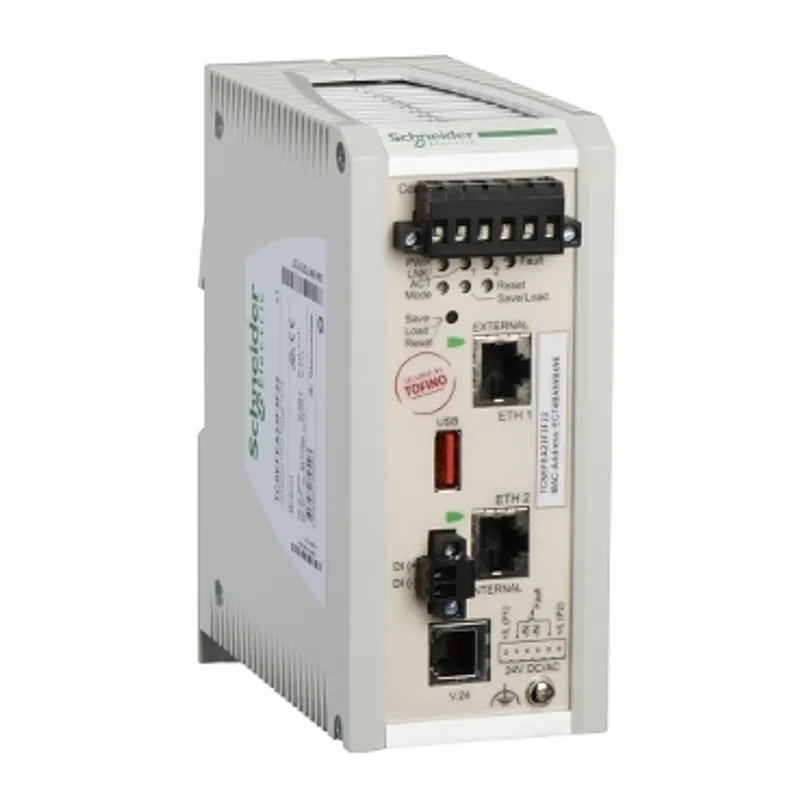

Schneider Electric TCSEFEC23F3F21
Firewall, Modicon Networking, industrial firewall, 2 ports for copper
- MPN
- TCSEFEC23F3F21
- EAN
- 3606480757983
- Category
- Modicon Networking
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric TCSEFEC23F3F21?
This product is part of the ConneXium range, an offer of Ethernet connecting devices. This TCP/IP managed switch has eight 10BASE-T/100BASE-TX ports for copper cable. It is a network switch with a supply voltage of 9.6V to 32V DC SELV, a power consumption of 6W and maximum number of switches in a ring is 50. This product offers you a smart and flexible way to integrate Ethernet solutions into your operation. It is furnished with 6-way removable connector (power supply) for electrical connection. The supported transmission medium is twisted shielded pair category 5E copper cable. Ethernet services are secure port, priority port, multicast filtering, data stream control, configuration via web server, SNTP client, SMTP V3, Rapid Scanning Tree Protocol (RSTP), IGMP snooping and FDR. It is an IP20 rated product. Its dimensions are 47mm (width) x 111mm (depth) x 131mm (height) and weighs 0.41kg. This product is certified by CE. It meets UL 508, CSA C22.2 No 213 Class I Division 2, CSA C22.2 No 214, UL 1604 Class 1 Division 2 and EN/IEC 61131-2 standards. It supports 35mm symmetrical DIN rail mount.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP firewall |
| Communication port protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, RS232 |
| Port Ethernet | 10/100BASE-TX - 2 port(s) copper cable |
| Cybersecurity | Syslog protocol support, IPSec |
| User interface | Built-in firewall |
| Encryption protocol | MAC addresses filtering |
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| Ethernet service | Multicast filtering, Syslog |
| Communication service | Port monitoring |
| Diagnostics run time | Signal contact, Self test, MAC notification |
| Redundancy | Redundant network coupling, Router redundancy |
| [Us] rated supply voltage | 12...48 V |
| Supply voltage limits | 9.6…60 V DC SELV, 18…30 V AC SELV |
| Power consumption in W | 6.9 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE, UL, RCM |
| Function available | System information, Report, IP Firewall list, Configuration check, Reachability test (ping), Alarms (Traps) |
| Local signalling | 2 LEDs (green) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for internal port status, 1 dual colour LED (green/yellow) for serial port status |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Temperature threshold, External memory removed |
| Ethernet cabling system | TF switches |
| Width | 60 mm |
| Height | 145 mm |
| Depth | 125 mm |
| Net weight | 0.61 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 508, EN/IEC 61131, EN/IEC 60950 |
| Product certifications | CE, UL, RCM, UKCA, DNV |
Packaging
| Package 1 | 1 PCE, 22.500 cm × 22.000 cm × 21.000 cm (L × W × H), 1.031 kg |
| Package 2 | 2 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 2.700 kg |
