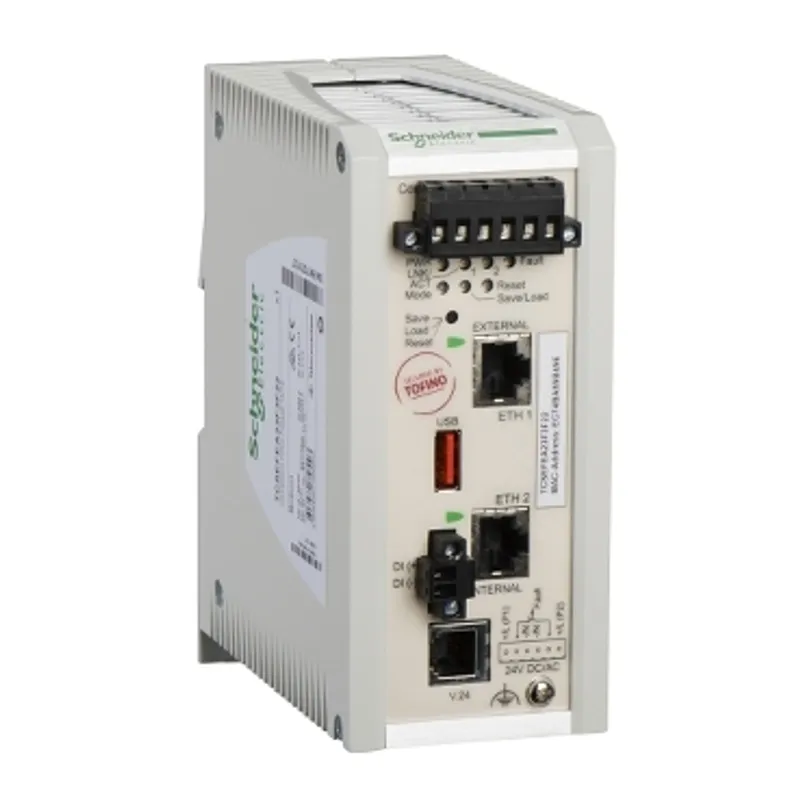

firewall, Modicon Networking, tofino firewall, 2 ports for copper
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Networking |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.66 kg |
Shipping & availability
When can TCSEFEA23F3F22 be shipped?
TCSEFEA23F3F22 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up TCSEFEA23F3F22 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for TCSEFEA23F3F22 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for TCSEFEA23F3F22, subject to availability and destination.
This product is part of the Modicon Networking range, an offer of Tofino Industrial Firewall. This device comes with Ethernet TCP/IP protocol. It comes with 2 copper cable transmission ports. It provides secure connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 6.9W and a rated voltage from 12V to 24V DC. It is furnished with 6-way removable connector (power supply) for electrical connection Its dimensions are 60mm (width) x 145mm (height) x 125mm (depth) and weighs 0.66 kg. It has shielded connectors which are suitable for medium, isolated networks or system with medium network traffic and network with medium complexity levels. It is CE, UL, RCM, DNV certified and conforms to UL 508, EN/IEC 61131 and EN/IEC 60950 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP firewall |
| Communication port protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, RS232 |
| Port Ethernet | 10/100BASE-TX - 2 port(s) copper cable |
| Cybersecurity | IPSec, DoS prevention |
| User interface | Built-in firewall |
| Encryption protocol | MAC addresses filtering |
| Integrated connection type | Shielded RJ45 copper cable |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper cable |
| Maximum cable distance between devices | 100 m copper cable |
| Ethernet service | Multicast filtering |
| Redundancy | Redundant power supplies |
| [Us] rated supply voltage | 12...48 V |
| Supply voltage limits | 9.6…60 V DC SELV, 18…30 V AC SELV |
| Power consumption in W | 5 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE |
| Local signalling | 2 LEDs (green) for P1 P2 power supplies, 1 LED (red) for fault, 1 dual colour LED (green/yellow) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for internal port status, 1 dual colour LED (green/yellow) for serial port status |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault |
| Ethernet cabling system | TF switches |
| Width | 60 mm |
| Height | 145 mm |
| Depth | 125 mm |
| Net weight | 0.66 kg |
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % non-condensing |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 508, EN/IEC 61131, EN/IEC 60950 |
| Product certifications | CE, UL, RCM, UKCA, DNV |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 21.500 cm |
| Package 1 Width | 22.500 cm |
| Package 1 Length | 23.000 cm |
| Package 1 Weight | 1.020 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 2.968 kg |
| Warranty | 18 months |
