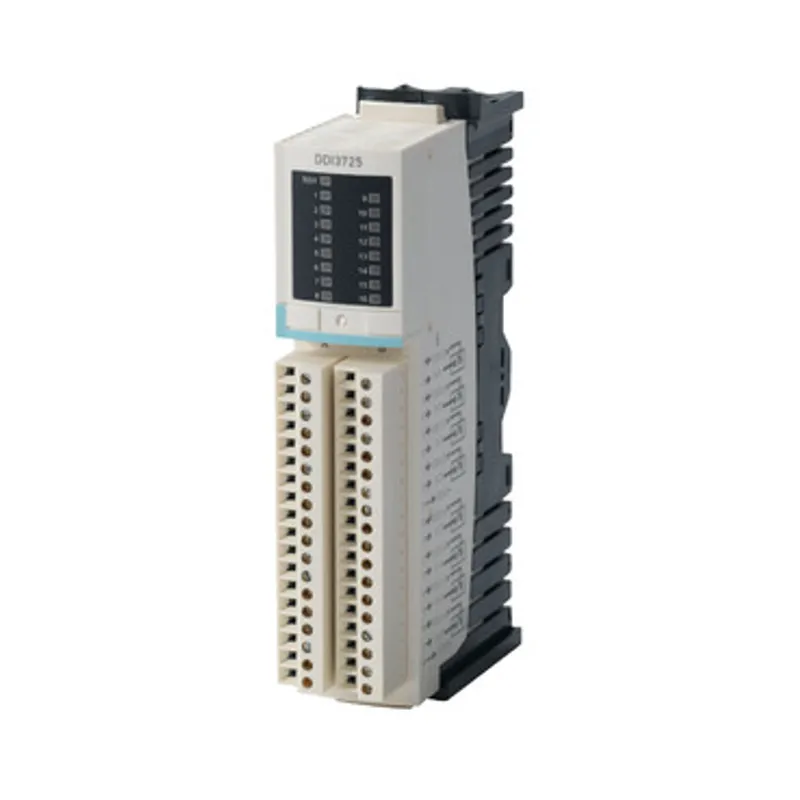

Schneider Electric STBDDI3725KS
Basic digital input kit, Modicon STB, 24V DC, 16I, screw connector
- MPN
- STBDDI3725KS
- EAN
- 3595863932973
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBDDI3725KS?
This product is part of the Modicon STB range, an offer of modular distributed I/O. This basic discrete input kit has 16 discrete inputs with positive logic. It is a discrete input kit with a rated supply voltage of 24V DC and a current consumption of 100mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height) and weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. The kit includes STBXTS1180, 18-terminal screw type connector, STBDDI3725 module and STBXBA3000 base. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Specifications
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Basic digital input kit |
| Kit composition | STBXTS1180, 18-terminal screw type connector, STBDDI3725 module, STBXBA3000 base |
| Product compatibility | I/O base STBXBA3000, Power distribution module STBPDT3100/3105 |
| Discrete input number | 16 type 1 at 24 V DC |
| Discrete input voltage | 11...30 V for type 1, - 3...5 V |
| Discrete input logic | Positive |
| Discrete input current | 4.5 mA at 24 V DC |
| Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Response time on input | 2 ms (off to on), 2 ms (on to off) |
| Input filtering | 1 ms |
| Protection type | Resistor limited |
| Power supply type | Power distribution module |
| Typical current consumption | 100 mA at 5 V DC for logic bus |
| Electrical connection | Screw terminal |
| Hot swapping fallback | Yes for basic NIMs |
| Local signalling | 1 LED (green) for module status (RDY), 1 LED per channel (green) for channel status (IN1 to IN2) |
| Height | 18.4 mm |
| Width | 125 mm |
| Depth | 65.1 mm |
| Net weight | 0.086 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | UL, FM Class 1 Division 2, CSA |
| Standards | IEC 61131-2 type 3 |
| Ambient air temperature for operation | -25…70 °C (without derating) |
| Ambient air temperature for storage | -40…85 °C without derating |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 mm DIN rail, 5 gn (f = 58…150 Hz) on 35 mm DIN rail, +/- 3.5 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
Packaging
| Package 1 | 1 PCE, 13.128 cm × 8.002 cm × 3.54 cm (L × W × H), 210.0 g |
| Package 2 | 20 S02, 40 cm × 30 cm × 15 cm (L × W × H), 4.72 kg |
| Package 3 | 320 P06, 80.0 cm × 60.0 cm × 75.0 cm (L × W × H), 83 kg |
