Schneider Electric STBDDI3725

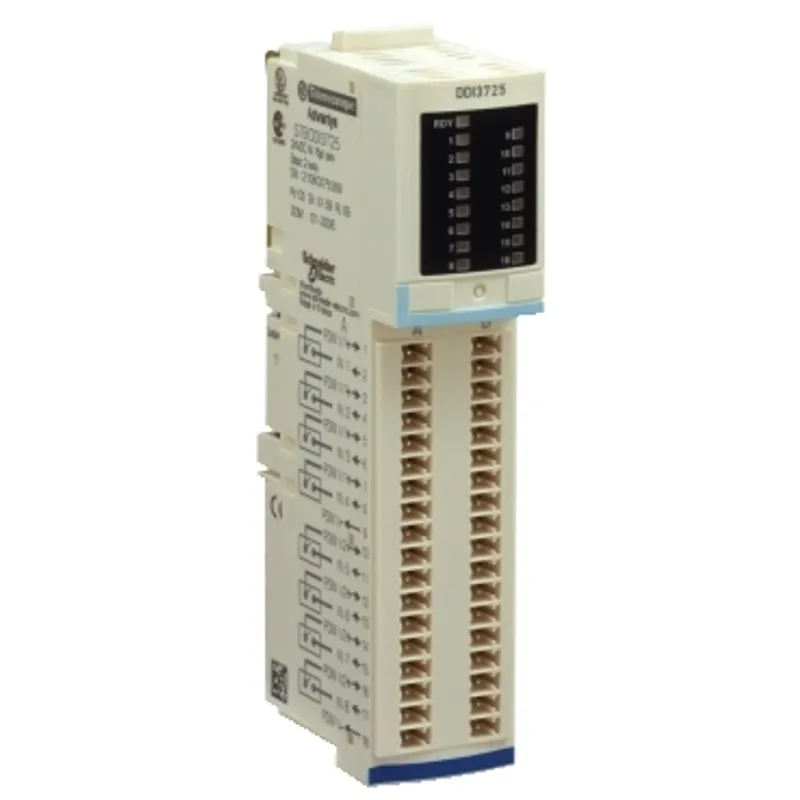

Basic digital input module, Modicon STB, 24V DC, 16I
- MPN
- STBDDI3725
- EAN
- 3595863843453
- Category
- Modicon STB
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric STBDDI3725?
This input module is part of the Modicon STB range, an offer of IP20 modular distributed I/Os on multiple networks and fieldbus. This basic digital input module offers 16 inputs with positive discrete input logic. It is a module with discrete input voltage of 24V DC. There is an insulation between channels and logic bus at 1500V for 1 minute. It is an IP20 rated product. Its dimensions are 125mm (width) x 65.1mm (depth) x 18.4mm (height). It weighs 0.086kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN/IEC 61131-2 type 3 standard. It is compatible with I/O base STBXBA3000 and power distribution module STBPDT3100/3105. Advantys distributed I/O solutions are simple, open and flexible, meeting needs in every stage of the product life cycle. For distributed connection to sensors and actuators from a PLC with prefabricated cables.
Specifications
Specifications
| Range of product | Modicon STB distributed I/O solution |
| Product or component type | Basic digital input module |
| Product compatibility | I/O base STBXBA3000, Power distribution module STBPDT3100/3105 |
| Discrete input number | 16 type 3 at 24 V DC |
| Discrete input voltage | 11...30 V for type 3, - 3...5 V |
| Discrete input logic | Positive |
| Discrete input current | 4.5 mA at 24 V DC |
| Current state 1 guaranteed | >= 2.5 mA |
| Current state 0 guaranteed | <= 1.5 mA |
| Response time on input | 2 ms (off to on), 2 ms (on to off) |
| Input filtering | 1 ms |
| Protection type | Resistor limited |
| Power supply type | Power distribution module |
| Typical current consumption | 100 mA at 5 V DC for logic bus |
| Electrical connection | Screw terminal |
| Hot swapping fallback | Yes for basic NIMs |
| Local signalling | 1 LED (green) for module status (RDY), 1 LED per channel (green) for channel status (IN1 to IN2) |
| Height | 18.4 mm |
| Width | 125 mm |
| Depth | 65.1 mm |
| Net weight | 0.086 kg |
| IP degree of protection | IP20 |
| Marking | CE |
| Product certifications | FM Class 1 Division 2, CSA, UL |
| Standards | IEC 61131-2 type 3 |
| Ambient air temperature for operation | -25…70 °C (without derating) |
| Ambient air temperature for storage | -40…85 °C without derating |
| Relative humidity | 95 % at 60 °C without condensation |
| Operating altitude | <= 2000 m |
| Pollution degree | 2 |
| Vibration resistance | 3 gn (f = 58…150 Hz) on 35 mm DIN rail, 5 gn (f = 58…150 Hz) on 35 mm DIN rail, +/- 3.5 mm (f = 10…58 Hz) |
| Shock resistance | 30 gn for 11 ms conforming to IEC 88 reference 2-27 |
Packaging
| Package 1 | 1 PCE, 13.000 cm × 6.500 cm × 3.000 cm (L × W × H), 100.000 g |
| Package 2 | 22 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.690 kg |
