Schneider Electric SSP1A490BD
Single phase relay, Harmony Solid State Relays, 90A, DIN rail mount, zero voltage switching, input 4 to 32V DC, output 48 to 660V AC
- MPN
- SSP1A490BD
- EAN
- 3606485441900
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

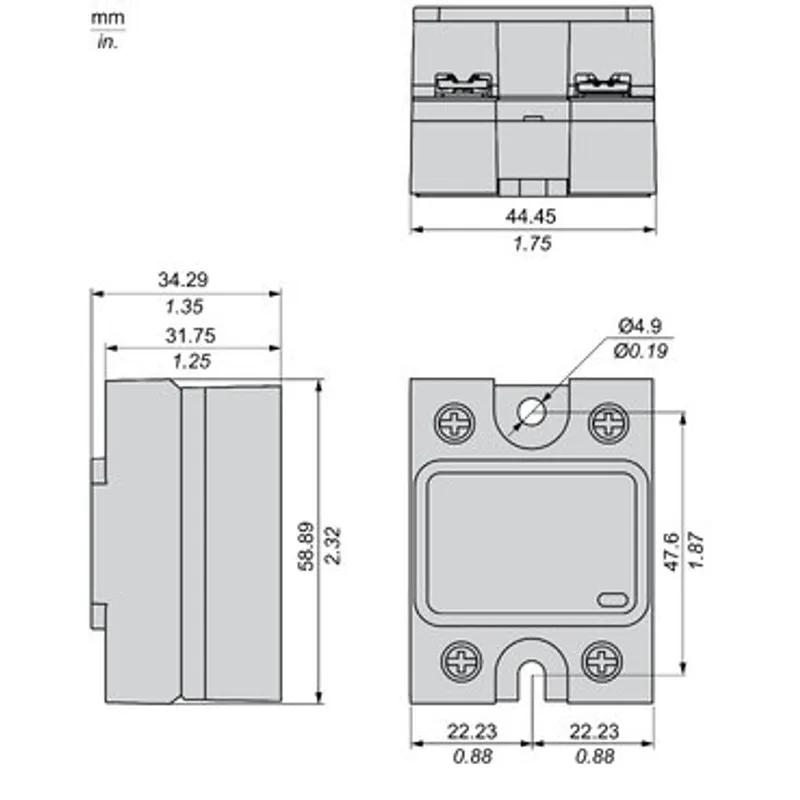

What is the Schneider Electric SSP1A490BD?
SSP panel mount relay is part of the Harmony Solid sate relays range. This single-phase panel mount static relay accepts wiring with either bare cable, crimped cable ends, fork lugs or ring lugs. Its rated current is 90A, is controlled withA 4V to 32V DC circuit, has a rated load voltage of 48V to 660V AC output. It also has a test button for easy debugging, testing and commissioning. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Product or component type | Panel mount relay |
| Device short name | SSP1 |
| Mounting support | Panel |
| Number of phases | 1 phase |
| [In] rated current | 90 A |
| Solid state output type | Zero voltage switching, SCR output |
| Output switching mode | Zero voltage switching |
| test button | Without test button |
| [Uc] control circuit voltage | 4...32 V DC |
| Minimum switching voltage | 4 V DC turn-on |
| Maximum switching voltage | 1 V DC turn-off |
| Response time | 0.5 cycle (turn-on), 0.5 cycle (turn-off) |
| Input current | 7…12 mA |
| Output voltage | 48...660 V AC |
| Load current | 0.15…90 A |
| Transient overvoltage | 1200 V |
| Surge current | 1200 A for 16.6 ms |
| Maximum I²t for fusing | 5976 A².s for 8.33 ms at 60 Hz, 6560 A².s for 10 ms at 50 Hz |
| Co-ordination type | Type 1 - 63 A miniature circuit breaker (MCB) - curve B, Type 2 - 50 A miniature circuit breaker (MCB) - curve B |
| Maximum leakage current | 1 mA off-state |
| Maximum voltage drop | <1.15 V on-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Power factor | 0.5 (with maximum load) |
| Motor controller rating | 1.5 hp 120 V AC, 3 hp 240 V AC, 7.5 hp 480 V AC |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Maximum capacitance | 8 pF for input/output |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| [Uimp] rated impulse withstand voltage | 6 kV output to case, 6 kV input to output |
| Tightening torque | 1.5...1.7 N.m for input, 2...2.2 N.m for output |
| Connections - terminals | Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input, Screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, Screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, Forked type tag connectors: 9.2 x 4 mm for input, Ring lugs: 9.2 x 4 mm for input, Forked type tag connectors: 11.7 x 4.5 mm for output, Ring lugs: 11.7 x 4.5 mm for output |
| Thermal resistance | 0.27 °C/W junction to case |
| LED indicator | LED, green for input |
| IP degree of protection | IP20 |
| Safety reliability data | MTTFd = 1875.9 years, B10d = 1731395 |
| Net weight | 89.2 g |
| Device presentation | Complete product |
| Ambient air temperature for operation | -40…80 °C |
| Ambient air temperature for storage | -40…125 °C |
| Pollution degree | 2 |
| Overvoltage category | III |
| Product certifications | UL, CSA, EAC, CE |
| Marking | CSA, EAC, UL, CE |
| Standards | CSA C22.2 No 14-13, UL 508, IEC 62314, IEC 60950-1 |
Packaging
| Package 1 | 1 PCE, 6.700 cm × 4.800 cm × 3.800 cm (L × W × H), 100.000 g |
| Package 2 | 30 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 3.418 kg |
