Schneider Electric SSP1A475M7T
Single phase relay, Harmony Solid State Relays, 75A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 48 to 660V AC
- MPN
- SSP1A475M7T
- EAN
- 3606485442167
- Category
- Harmony Solid State Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

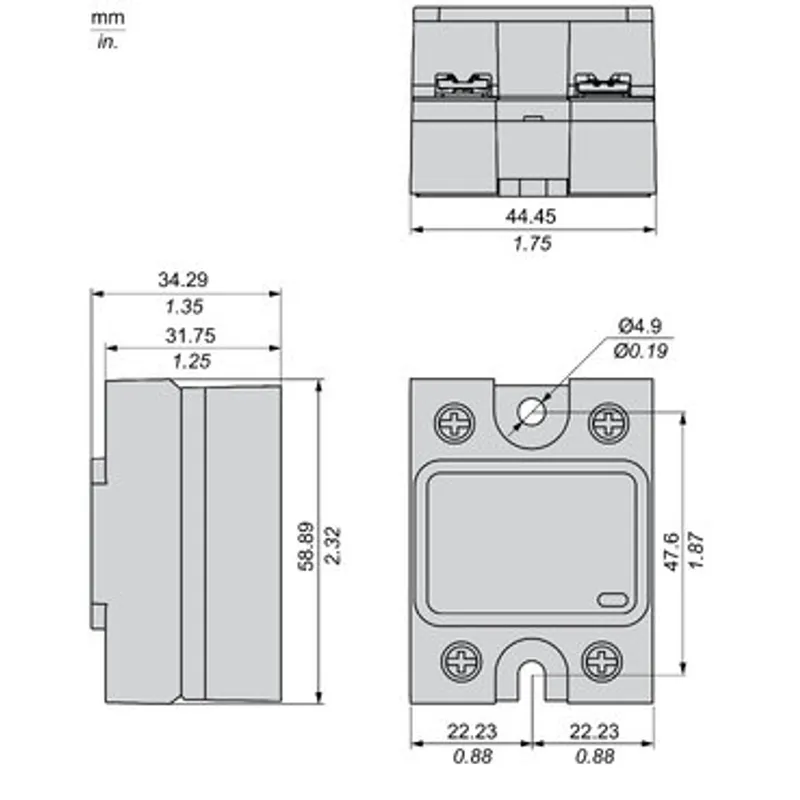

What is the Schneider Electric SSP1A475M7T?
This Harmony SSP solid state panel mount single-phase relay is rated 75A, is controlled with a 90V to 280V AC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts.
Specifications
Specifications
| Range of product | Harmony Solid State Relays |
| Provided accessory | Thermal pad |
| Product or component type | Panel mount relay |
| Device short name | SSP1 |
| Number of phases | 1 phase |
| [In] rated current | 75 A |
| Solid state output type | SCR output, Zero voltage switching |
| Output switching mode | Zero voltage switching |
| test button | Without test button |
| [Uc] control circuit voltage | 90...280 V AC |
| Minimum switching voltage | 90 V AC turn-on |
| Maximum switching voltage | 10 V AC turn-off |
| Response time | 30 ms (turn-off), 25 ms (turn-on) |
| Input current | 5…10 mA |
| Output voltage | 48...660 V AC |
| Load current | 0.15…75 A |
| Transient overvoltage | 1200 V |
| Surge current | 1000 A for 16.6 ms |
| Maximum I²t for fusing | 4150 A².s for 8.33 ms at 60 Hz, 4555 A².s for 10 ms at 50 Hz |
| Co-ordination type | Type 1 - 50 A miniature circuit breaker (MCB) - curve B, Type 2 - 40 A miniature circuit breaker (MCB) - curve B |
| Maximum leakage current | 1 mA off-state |
| Maximum voltage drop | <1.15 V on-state |
| DV/dt | 500 V/µs off-state at maximum voltage |
| Power factor | 0.5 (with maximum load) |
| Motor controller rating | 1.5 hp 120 V AC, 3 hp 240 V AC, 7.5 hp 480 V AC |
| Insulation resistance | 1000 MOhm at 500 V DC |
| Maximum capacitance | 8 pF for input/output |
| Dielectric strength | 4 kV AC for input/output, 4 kV AC for input or output to case |
| [Uimp] rated impulse withstand voltage | 6 kV output to case, 6 kV input to output |
| Tightening torque | 1.5...1.7 N.m for input, 2...2.2 N.m for output |
| Connections - terminals | Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) with cable end for input, Screw terminals: 0.5...5.26 mm², (AWG 20...AWG 10) with cable end for output, Screw terminals: 0.2...3.3 mm², (AWG 24...AWG 12) without cable end for input, Screw terminals: 0.5...8.26 mm², (AWG 20...AWG 8) without cable end for output, Forked type tag connectors: 9.2 x 4 mm for input, Ring lugs: 9.2 x 4 mm for input, Forked type tag connectors: 11.7 x 4.5 mm for output, Ring lugs: 11.7 x 4.5 mm for output |
| Thermal resistance | 0.3 °C/W junction to case |
| thermal pad impedance | 0.48 °C-in²/W at 25 psi |
| LED indicator | LED, green for input |
| IP degree of protection | IP20 |
| Safety reliability data | MTTFd = 1875.9 years, B10d = 1731395 |
| Net weight | 89.2 g |
| Device presentation | Complete product |
| Ambient air temperature for operation | -40…80 °C |
| Ambient air temperature for storage | -40…125 °C |
| Pollution degree | 2 |
| Overvoltage category | III |
| Product certifications | EAC, CE, UL, CSA |
| Marking | UL, EAC, CSA, CE |
| Standards | UL 508, CSA C22.2 No 14-13, IEC 60950-1, IEC 62314 |
Packaging
| Package 1 | 1 PCE, 6.5 cm × 4.7 cm × 4.0 cm (L × W × H), 101.0 g |
| Package 2 | 30 S01, 40.0 cm × 15.0 cm × 15.0 cm (L × W × H), 3.377 kg |
