miniature plug in relay, Harmony Electromechanical Relays, 3A, 4CO, lockable test but to n, 24V DC
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Electromechanical Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.04 kg |
Shipping & availability
When can RXM4GB1BD be shipped?
RXM4GB1BD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RXM4GB1BD in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RXM4GB1BD and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RXM4GB1BD, subject to availability and destination.

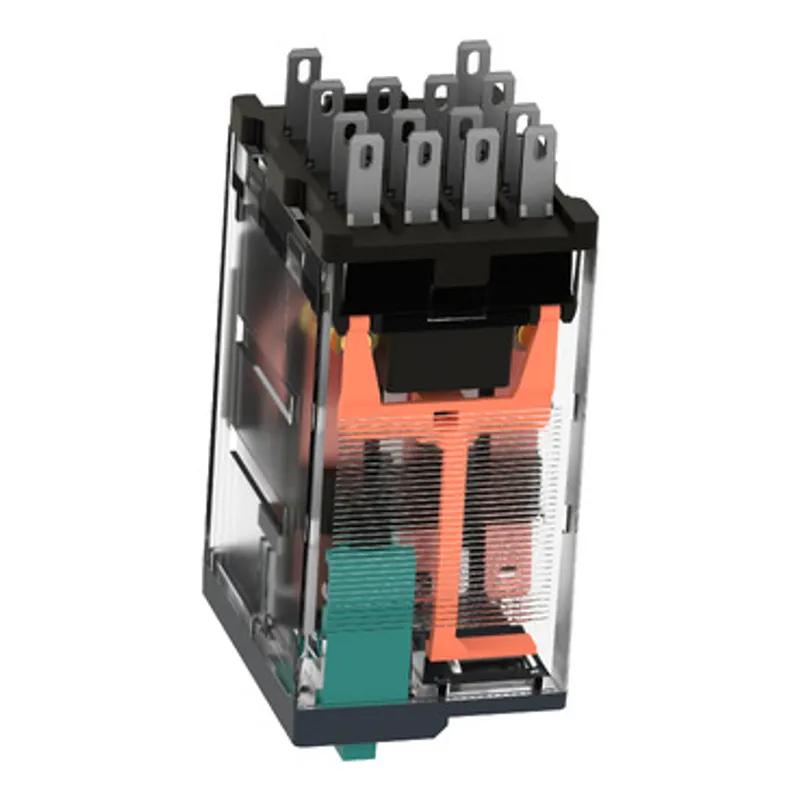

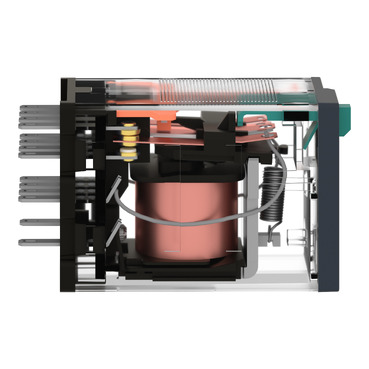

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay (gold plated contact) with current rating of 3A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor control, PLC Interfaces, power supplies, building equipment, especially those requiring low level contacts. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Series name | RXM series |
| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 4 C/O |
| Status LED | Without |
| Control type | Lockable test button |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 3 A at -40…55 °C |
| [Uimp] rated impulse withstand voltage | 2.5 kV during 1.2/50 µs |
| [Ie] rated operational current | 2 A at 28 V (DC) NO conforming to IEC, 2 A at 250 V (AC) NO conforming to IEC, 1 A at 28 V (DC) NC conforming to IEC, 1 A at 250 V (AC) NC conforming to IEC, 3 A at 28 V (DC) conforming to UL, 3 A at 277 V (AC) conforming to UL |
| Minimum switching capacity | 15 mW at 3 mA, 5 V |
| Electrical durability | 100000 cycles for resistive load depending on mounting position and working environment |
| Rated operational voltage limits | 19.2...26.4 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC, 300 V conforming to CSA, 300 V conforming to UL |
| Maximum switching voltage | 250 V conforming to IEC |
| Drop-out voltage threshold | >= 0.1 Uc |
| Load current | 3 A at 250 V AC, 3 A at 28 V DC |
| Operating time | 20 ms |
| Maximum switching capacity | 750 VA/84 W |
| Average resistance | 650 Ohm at 20 °C +/- 10 % |
| Average coil consumption | 0.9 W |
| Mechanical durability | 10000000 cycles |
| Operating rate | <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| reset time | 20 ms |
| Dielectric strength | 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact, 2000 V AC between poles |
| Compatibility code | RXM |
| Protection category | RT I |
| Pollution degree | 2 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | Gold plated bifurcated silver |
| Shape of pin | Flat (faston type) |
| Net weight | 0.037 kg |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | CSA C22.2 No 14, IEC 61810-1, UL 508 |
| Product certifications | UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme |
| Ambient air temperature for storage | -40…85 °C |
| Vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation, 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gn for in operation, 30 gn for not operating |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.100 cm |
| Package 1 Width | 2.800 cm |
| Package 1 Length | 4.800 cm |
| Package 1 Weight | 35.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.000 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 12.500 cm |
| Package 2 Weight | 382.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 9.670 kg |
| Warranty (in months) | 18 |
