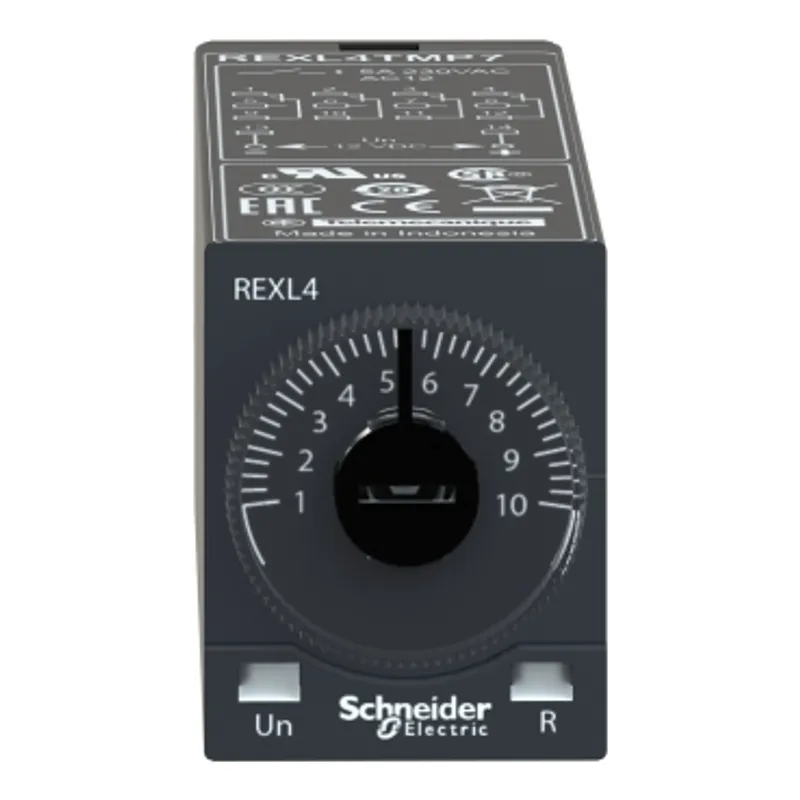

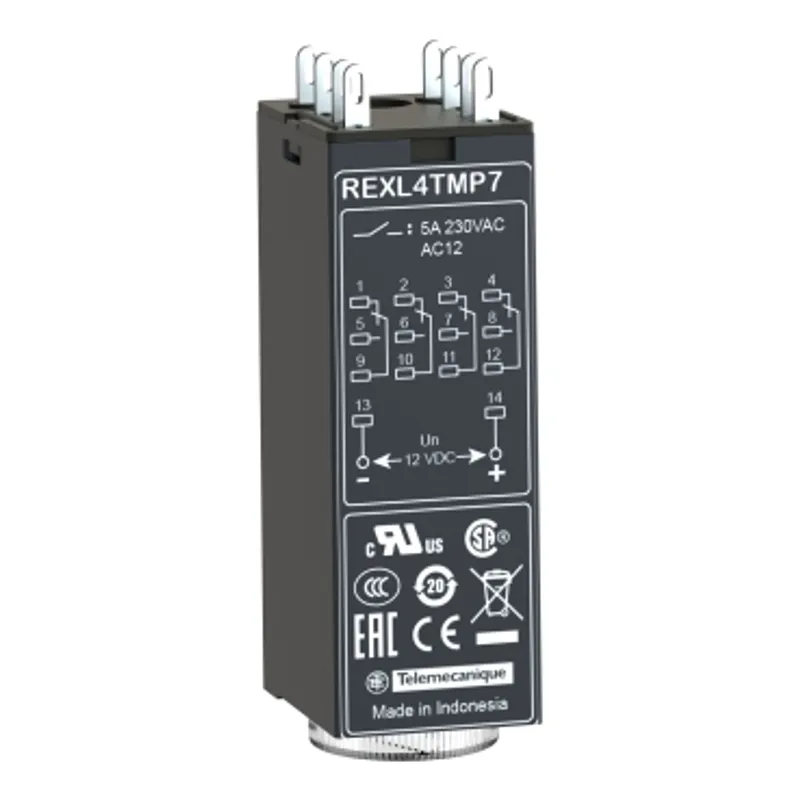

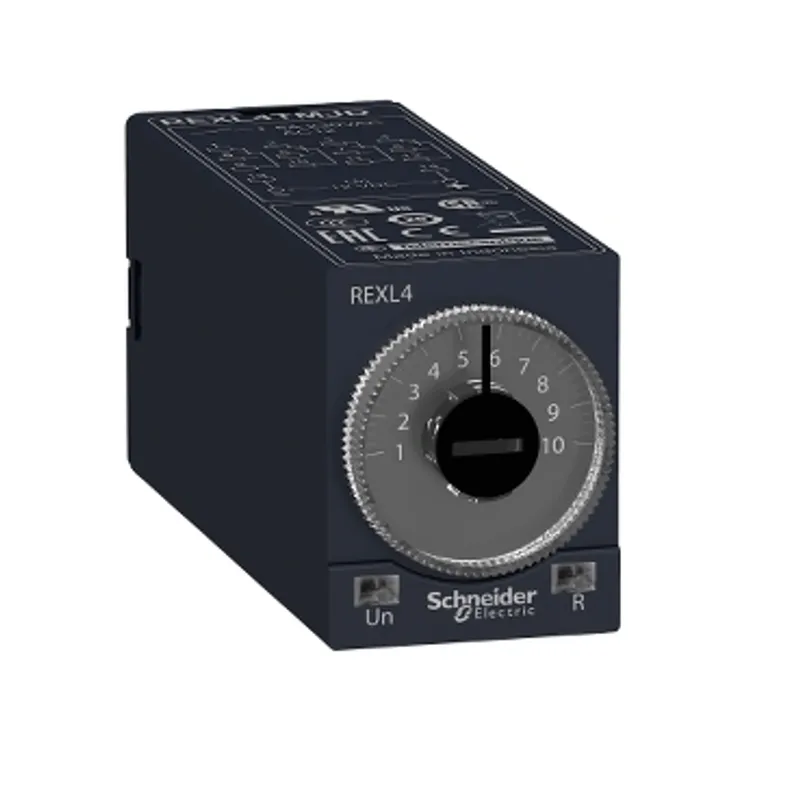

Schneider Electric REXL4TMP7
Single function relay, Harmony Timer Relays, 5A, 4CO, 0.1s..100h, on delay, 230V AC
- MPN
- REXL4TMP7
- EAN
- 3389119400107
- Category
- Harmony Timer Relays
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric REXL4TMP7?
This Harmony REXL timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 5A, is 48mm wide and can be supplied with 230V AC. It is a plug-in device, meaning it is quick and easy to install with the need for tools. It also offers a sealable cover, simple and precise settings with rotary trimmers. It is designed for socket plug in, this allows quick and easy installation and minimizes set up and repair time. Status display with 2 LEDs, visually inspect the status of you system without specialized tools.
Specifications
Specifications
| Range of product | Harmony Timer Relays |
| Fixing mode | Plug-in (socket) |
| Product or component type | Miniature timing relay |
| Discrete output type | Relay |
| Contacts type and composition | 4 C/O |
| Component name | REXL |
| Time delay type | Power on-delay - A- Power on-delay relay |
| Time delay range | 6...60 s, 1...10 s, 6...60 min, 1...10 min, 0.1...1 s, 10...100 h, 1...10 h |

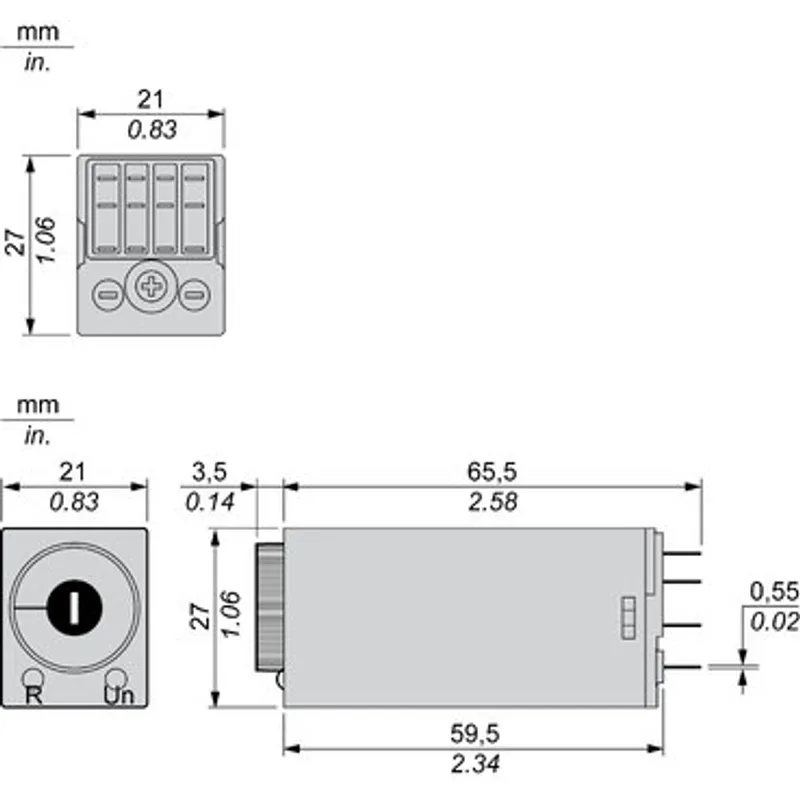

| Width | 21 mm |
| Contacts material | Cadmium free |
| [Us] rated supply voltage | 230 V AC 50/60 Hz |
| Voltage range | 0.85...1.15 Us |
| [In] rated current | 5 A AC |
| Repeat accuracy | +/- 0.5 % |
| Setting accuracy of time delay | 10 % at full scale at 25 °C conforming to IEC 61812-1 |
| Temperature drift | 0.05 %/°C |
| maximum reset time | 250 ms after time delay, on de-energisation, 50 ms during time delay, on de-energisation |
| Voltage drift | +/- 0.2 %/V |
| Maximum switching capacity | 4 x 5 A |
| maximum temporary permissible current | 10 A for < 10 s |
| Minimum switching current | 100 mA |
| Electrical durability | 100000 cycles at 250 V AC resistive |
| Mechanical durability | 10000000 cycles |
| maximum power consumption | 3 VA |
| [Ui] rated insulation voltage | 250 V conforming to IEC 255 Group C, 250 V conforming to VDE 0010 |
| Output overvoltage protection | 2 J |
| Surge withstand | 2 kV conforming to IEC 61000-4-5 level 3 |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Local signalling | 1 LED (red) for output in operation, 1 LED (yellow) for power ON |
| Function available | A- Power on-delay relay-4 C/O |
| Control type | Without test button |
| Shape of pin | Flat |
| Number of functions | 1 |
| Net weight | 0.05 kg |
| Immunity to microbreaks | 5 ms |
| Dielectric strength | 2 kV for 1 mA/1 minute at 50 Hz conforming to IEC 60601-1, 2 kV for 1 mA/1 minute at 50 Hz conforming to IEC 61812-1 |
| Standards | IEC 61000-6-2, EN 50081-2, IEC 60601-1, IEC 60601-2, 73/23/EEC, 93/68/EEC, 89/336/EEC, IEC 61812-1 |
| Product certifications | cUL, UL |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| IP degree of protection | IP50 conforming to IEC 60529 |
| Vibration resistance | 0.35 mm (f= 10…55 Hz) conforming to IEC 60068-2-6 |
| Relative humidity | 95 % without condensation conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge | 6 kV in contact conforming to IEC 61000-4-2 level 3, 8 kV in air conforming to IEC 61000-4-2 level 3 |
| Resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients | 2 kV conforming to IEC 61000-4-4 level 3 |
| Immunity to radioelectric fields | 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 level 3 |
| Immunity to voltage dips | >= 95 % / 1 s conforming to IEC 61000-4-11, 30 % / 10 ms conforming to IEC 61000-4-11, 60 % / 100 ms conforming to IEC 61000-4-11 |
| Disturbance radiated/conducted | Class B conforming to EN 55022 (EN 55011 group 1) |
Packaging
| Package 1 | 1 PCE, 7.500 cm × 3.100 cm × 3.100 cm (L × W × H), 50.000 g |
| Package 2 | 48 S01, 40.000 cm × 15.000 cm × 15.000 cm (L × W × H), 2.713 kg |
