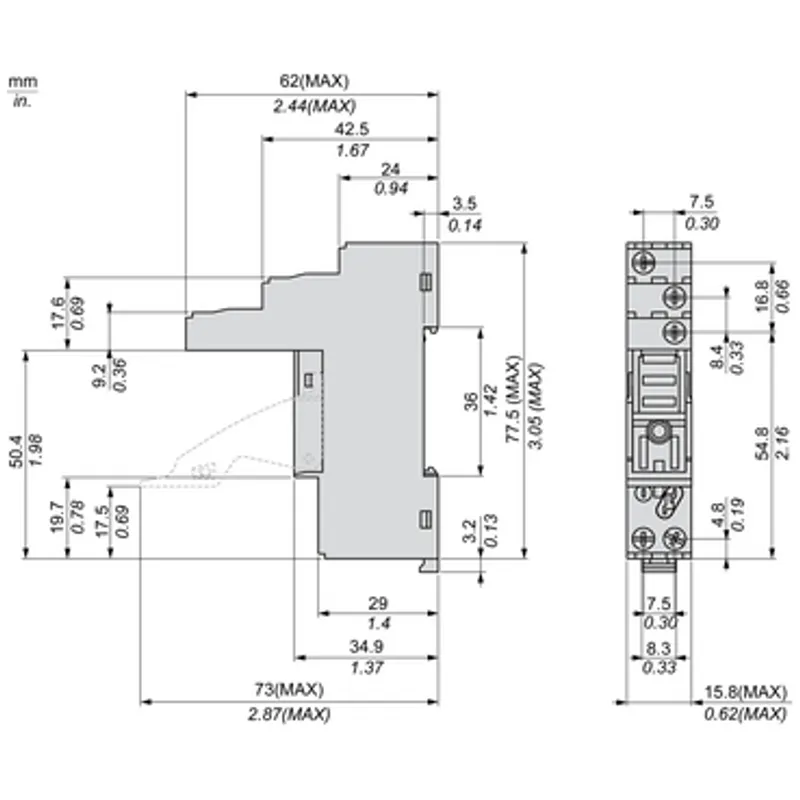

socket with clamp, Harmony Electromechanical Relays, for RXG1 relays, 10A, screw connec to rs, separate contact
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Harmony Electromechanical Relays |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 36 kg |
Shipping & availability
When can RGZE1S35M be shipped?
RGZE1S35M is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up RGZE1S35M in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for RGZE1S35M and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RGZE1S35M, subject to availability and destination.
"This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 1 C/O SPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime."
Specifications
Specifications
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RXG with 1 C/O contact |
| Contacts type and composition | 1 C/O |
| [Ui] rated insulation voltage | 250 V |
| [Uimp] rated impulse withstand voltage | 6 kV between coil and contact with reinforced insulation, 4 kV between terminals and DIN rail with basic insulation |
| [Ue] rated operational voltage | 250 V conforming to IEC, 300 V conforming to UL |
| Dielectric strength | 5 kV between coil and contact with reinforced insulation, 3 kV between terminals and DIN rail with basic insulation |
| Connections - terminals | Screw terminals, 1 x 0.34...2 x 1.5 mm² (AWG 22...AWG 14) flexible with cable end, Screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end, Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end, Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end |
| Fixing mode | Screw (panel), Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 6…7 mm |
| Contact terminal arrangement | Separate |
| screw type | M3 |
| Overvoltage category | III |
| Pollution degree | 3 |
| Standards | UL 508, CSA C22.2 No 14, IEC 61984 |
| Product certifications | CE, EAC, UL, CSA, DNV-GL |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Relative humidity | 10…85 % |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.600 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 7.900 cm |
| Package 1 Weight | 36.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 8.600 cm |
| Package 2 Width | 8.900 cm |
| Package 2 Length | 16.600 cm |
| Package 2 Weight | 382.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 180 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 7.350 kg |
| Warranty (in months) | 18 |
