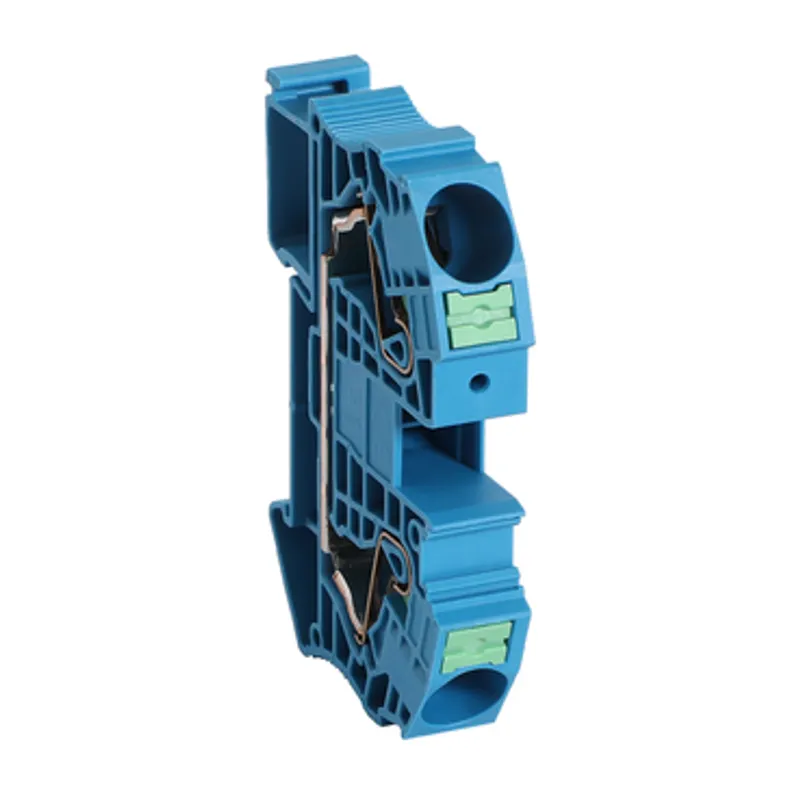

Terminal block, Linergy TR, push-in type, feed through, 2pts, 16mm², blue.

Name: Terminal block, Linergy TR, push-in type, feed through, 2pts, 16mm², blue.
Brand: Schneider Electric
SKU: NSYTRP162BL

MPN: NSYTRP162BL · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Linergy TR terminals blocks
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	37 kg

Shipping & availability

When can NSYTRP162BL be shipped?

NSYTRP162BL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYTRP162BL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYTRP162BL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRP162BL, subject to availability and destination.

Specifications

Range	Linergy
Product name	Linergy TR
Product or component type	Terminal block
Device short name	TRP
Accessory / separate part category	Connection accessory
Terminal block type	Passthrough
Terminal block level	1
Mounting mode	Clip-on
Nominal cross section	16 mm²
Length	80 mm
Colour	Blue
Quantity per set	Set of 50
Width	12.2 mm
Height	51 mm
Connections - terminals	1 x push-in: upstream, 1 x push-in: downstream
number of connections	2
Connection position	Top
Number of measurement input	2
Cable cross section	0.2…16 mm², flexible without cable end, 0.2…25 mm², solid with cable end, 1.5…16 mm², flexible with cable end, 0.2…25 mm², solid without cable end
Wire stripping length	18 mm
Tool type	Connection: without tool, Disconnection: flat screwdriver
[Ue] rated operational voltage	600 V CSA, 800 V conforming to EN/IEC 60947-7-1, 600 V UL
[In] rated current	76 A conforming to EN/IEC 60947-7-1, 85 A CSA, 85 A UL
Material	Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring
Dielectric loss	0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4
Dielectric constant	3.7 at 1 MHz
Resistivity	10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30
Surface resistance	1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30
Creep resistance	500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Net weight	37 g
Range compatibility	PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys
Product compatibility	Spacial enclosures
Product certifications	VDE, CSA, GL, UL, DNV
Dielectric strength	1000 V conforming to IEC 60243-1
Ambient air temperature for operation	-40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.500 cm
Package 1 Width	1.400 cm
Package 1 Length	7.200 cm
Package 1 Weight	30.000 g
Unit Type of Package 2	BB1
Number of Units in Package 2	50
Package 2 Height	9.800 cm
Package 2 Width	12.200 cm
Package 2 Length	36.400 cm
Package 2 Weight	1.613 kg
Unit Type of Package 3	S03
Number of Units in Package 3	300
Package 3 Height	30.000 cm
Package 3 Width	30.000 cm
Package 3 Length	40.000 cm
Package 3 Weight	10.170 kg
Warranty (in months)	18
