Schneider Electric
NSYTRP62PETerminal block, Linergy TR, push-in type, 2pts, 6mm², protective earth, green-yellow.
Linergy TR terminals blocks Parts
Schneider Electric
NSYTRP44DPETerminal block, Linergy TR, push-in 4pts 4mm², double level, protective earth, green-yellow.
Schneider Electric
NSYTRP44DBLTerminal block, Linergy TR, push-in type, feed through double level, 4pts, 4mm², blue.
Schneider Electric
NSYTRP23TBTerminal block, Linergy TR, push-in type, basic disconnect terminal, 3pts, 2.5mm².
Schneider Electric
NSYTRP162PETerminal block, Linergy TR, push-in type 2pts, 16mm², protective earth, green-yellow.
Schneider Electric
NSYTRP102PETerminal block, Linergy TR, push-in type 2pts, 10mm², protective earth, green-yellow.
Schneider Electric
NSYTRACPE26Cover plate, Linergy TR, 2.2mm width, 3 level, 6 points, for push-in terminals NSYTRP26T, grey, Set of 50
Schneider Electric
NSYTRP26TTerminal block, Linergy TR, push-in type, feed through, 3 levels Connections, 6 points, 2.5mm², grey, set of 50
Schneider Electric
NSYTRP62BLTerminal block, Linergy TR, push-in type, feed through, 2pts, 6mm², blue.
Schneider Electric
NSYTRP44DTerminal block, Linergy TR, push-in type, feed through, double level, 4pts, 4mm².
Schneider Electric
NSYTRP162BLTerminal block, Linergy TR, push-in type, feed through, 2pts, 16mm², blue.
Schneider Electric
NSYTRP162Terminal block, Linergy TR, push-in type, feed through, 2pts, 16mm², grey.
Schneider Electric
NSYTRP102BLTerminal block, Linergy TR, push-in type, feed through, 2pts, 10mm², blue.
Schneider Electric
NSYTRP102Terminal block, Linergy TR, push-in type, feed through, 2pts, 10mm², grey.
Schneider Electric
NSYTRACPE44Cover plate, Linergy TR, 4mm², 3 level, 6pts, for push-in term NSYTRP44D, grey
Schneider Electric
NSYTRACP63Cover plate, Linergy TR, 6mm² cable section, 3pts, for push-in term NSYTRP63, grey
Schneider Electric
NSYTRACP62Cover plate, Linergy TR, 6mm² cable section, 2pts, for push-in term NSYTRP62, grey
Schneider Electric
NSYTRACP162Cover plate, Linergy TR, 16mm² cable section, 2pts, for push-in term NSYTRP162, grey
Schneider Electric
NSYTRACP102Cover plate, Linergy TR, 10mm² cable section, 2pts, for push-in term NSYTRP102, grey
Schneider Electric
NSYTRACP43Cover plate, Linergy TR, 2.2mm width, 3 points, for push-in terminals NSYTRP43, grey, Set of 50
Schneider Electric

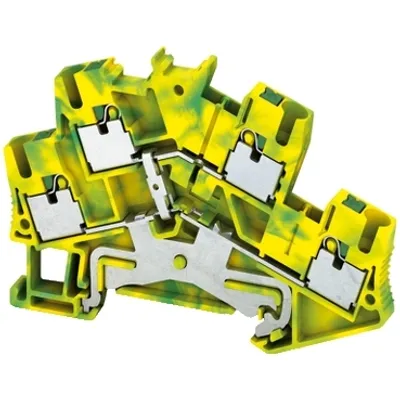

NSYTRP24DPETerminal block, Linergy TR, push-in type, protective earth, 4 points, 2.5mm², double level, green-yellow, set of 50
Schneider Electric

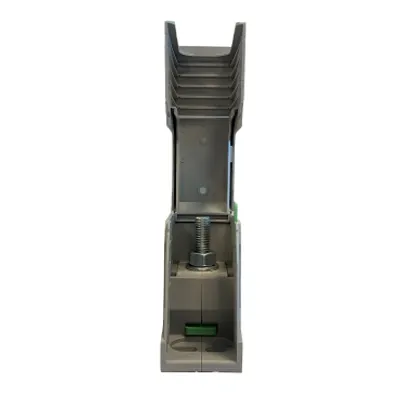

NSYTRV1502BScrew terminal, Linergy TR terminals blocks, feed through, 2 points, lug-connector, 150mm², grey
Compare Linergy TR terminals blocks
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal cross section | Length | Height | Net weight | Product certifications |
|---|---|---|---|---|---|
| NSYTRP62PE | 6 mm² | 69.5 mm | 43.5 mm | 23.3 g | GL, UL, VDE, CSA, DNV |
| NSYTRP44DPE | 4 mm² | 92.4 mm | 55 mm | 23.2 g | DNV, VDE, UL, GL, CSA |
| NSYTRP44DBL | 4 mm² | 92.4 mm | 55 mm | 18 g | CSA, UL, VDE, DNV, GL |
| NSYTRP23TB | 2.5 mm² | 72 mm | 36.5 mm | 8.6 g | CSA, UL |
| NSYTRP162PE | 16 mm² | 80 mm | 51 mm | 51.2 g | GL, UL, VDE, CSA, DNV |
| NSYTRP102PE | 10 mm² | 71.5 mm | 50.5 mm | 33.9 g | VDE, CSA, DNV, GL, UL |
| NSYTRACPE26 | — | — | — | 5.3 g | — |
| NSYTRP26T | 2.5 mm² | 99.5 mm | 58 mm | 18 g | CSA, UL |
| NSYTRP63 | 6 mm² | 90.5 mm | 43.5 mm | 23.6 g | VDE, GL, DNV, CSA, UL |
| NSYTRP62BL | 6 mm² | 69.5 mm | 43.5 mm | 16.8 g | VDE, CSA, GL, DNV, UL |
| NSYTRP62 | 6 mm² | 69.5 mm | 43.5 mm | 16.8 g | VDE, DNV, CSA, GL, UL |
| NSYTRP44D | 4 mm² | 92.4 mm | 55 mm | 18 g | VDE, CSA, GL, DNV, UL |
| NSYTRP162BL | 16 mm² | 80 mm | 51 mm | 37 g | VDE, CSA, GL, UL, DNV |
| NSYTRP162 | 16 mm² | 80 mm | 51 mm | 37 g | GL, DNV, VDE, CSA, UL |
| NSYTRP102BL | 10 mm² | 71.5 mm | 50.5 mm | 25.3 g | VDE, CSA, DNV, GL, UL |
| NSYTRP102 | 10 mm² | 71.5 mm | 50.5 mm | 25.3 g | VDE, CSA, GL, DNV, UL |
| NSYTRACPE44 | — | — | — | 4.8 g | — |
| NSYTRACP63 | — | — | — | 3.2 g | — |
| NSYTRACP62 | — | — | — | 3.2 g | — |
| NSYTRACP162 | — | — | — | 4.6 g | — |
| NSYTRACP102 | — | — | — | 4.2 g | — |
| NSYTRACP43 | — | — | — | 2.7 g | — |
| NSYTRP24DPE | 2.5 mm² | 78 mm | 55 mm | 19.9 g | GL, UL, VDE, CSA |
| NSYTRV1502B | 150 mm² | 235 mm | 84.5 mm | — | GL, CSA, UL |
Common to all listed parts
| Range | Linergy |
| Product name | Linergy TR |
