Schneider Electric NSYTLFFL
With 1 FL21 cutouts for S3D encl. RAL7035. L545xW130.
- MPN
- NSYTLFFL
- EAN
- 3606480168321
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTLFFL?

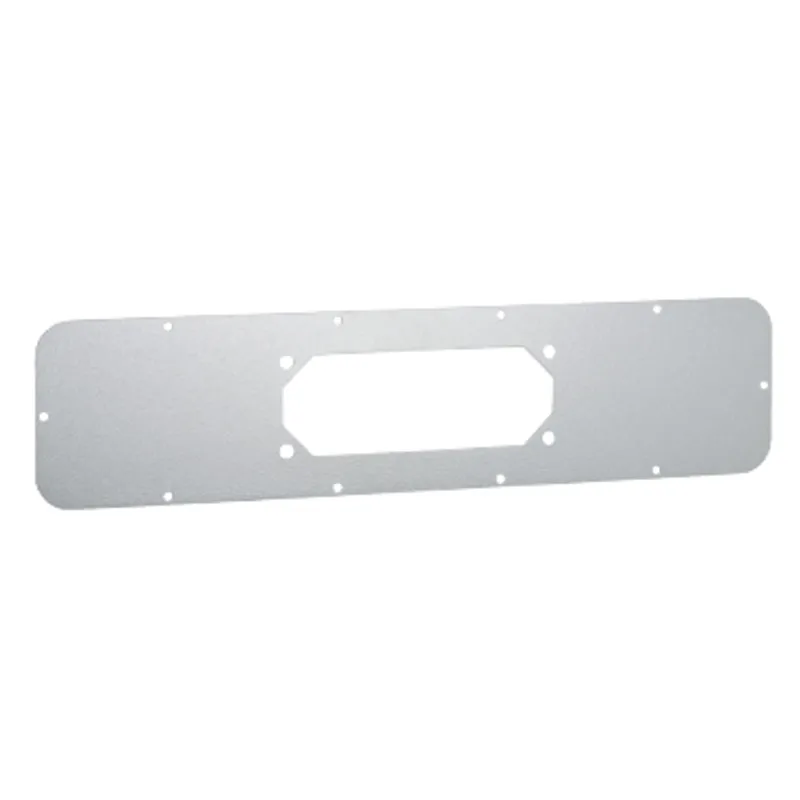

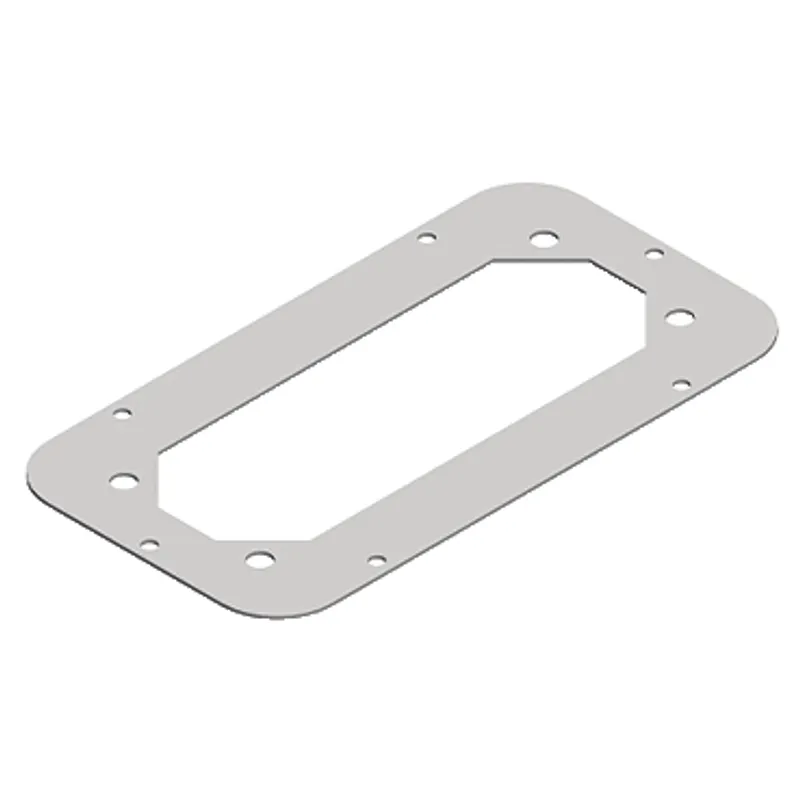

Multi-purpose cable gland plate for PanelSeT S3D enclosures The product is made of steel plate and polyethylene (PE) foam seal The plate is 1,5mm thick The width is 545mm and real width is 600mm The height is 545mm The depth is 130mm and real depth is 200mm The set contains fixing elements, 1 plate and 1 separate gasket The cable gland plate is to be mounted on enclosure bottom 1 cut-out 194 x 62,5mm Anti-corrosion protection is ensured by an epoxy-polyester powder coating Suitable for FL21 membranes
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT S3D |
| Mounting location | Enclosure bottom |
| Cable gland type | With FL cut-out |
| Device composition | Fixing elements, 1 plate, 1 separate gasket |
| Quantity per set | Set of 1 |
| Material | Plate: steel, Seal: polyethylene (PE) foam |
| Colour | Plate: grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Height | 545 mm |
| Width | 545 mm, Real: 600 mm |
| Depth | 130 mm, Real : 200 mm |
| Net weight | 0.726 kg |
| thickness | 1.5 mm |
| Number of cut-out | 1 cut-out |
| Accessory / separate part destination | For FL21 membranes |
| Cut-out dimensions | 194 x 62.5 mm |
Packaging
| Package 1 | 1 PCE, 55.000 cm × 13.500 cm × 0.500 cm (L × W × H), 726.000 g |
| Package 2 | 160 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 235.000 kg |
