Available on request

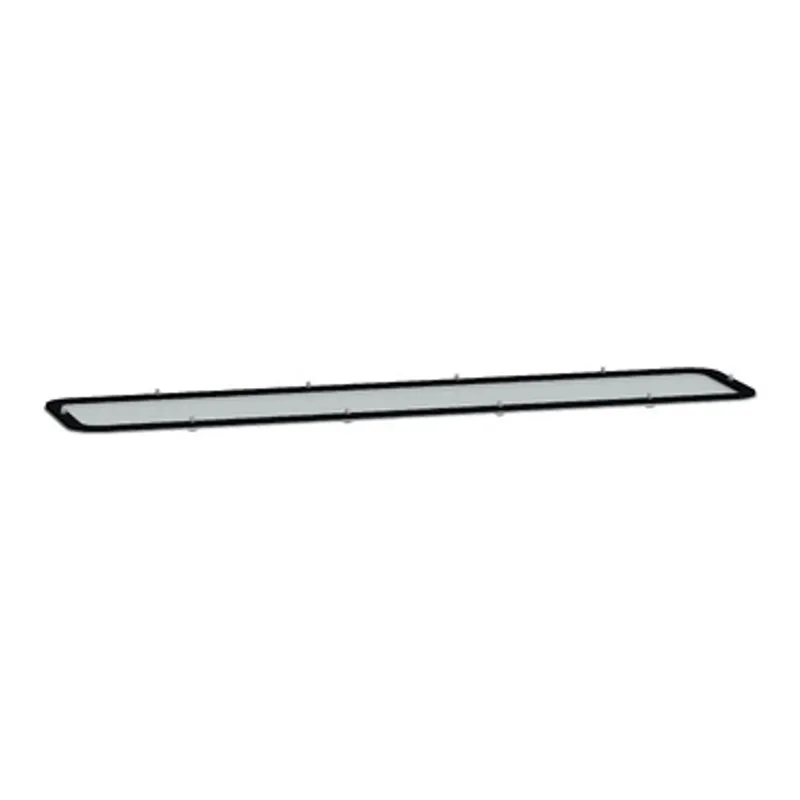

Standard for PanelSeT S3D encl. RAL7035, L545xW130.
MPN: NSYTLF · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT S3D |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 890 kg |
Shipping & availability
When can NSYTLF be shipped?
NSYTLF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTLF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTLF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTLF, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT S3D |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Device composition | Fixing elements, 1 plate, 1 separate gasket |
| Quantity per set | Set of 1 |
| Material | Plate: steel, Seal: polyethylene (PE) foam |
| Colour | Plate: grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Number of cut-out | 57 markings 25 mm |
| Height | 545 mm |
| Width | 545 mm, Real: 600 mm |
| Depth | 130 mm, Real : 200 mm |
| Net weight | 890 kg |
| thickness | 1.5…2.0 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 55.000 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 1.000 cm |
| Package 1 Weight | 878.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 13.000 cm |
| Package 2 Width | 22.000 cm |
| Package 2 Length | 62.000 cm |
| Package 2 Weight | 9.222 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 200 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 195.000 kg |
| Warranty | 18 months |
