Schneider Electric NSYTLCME

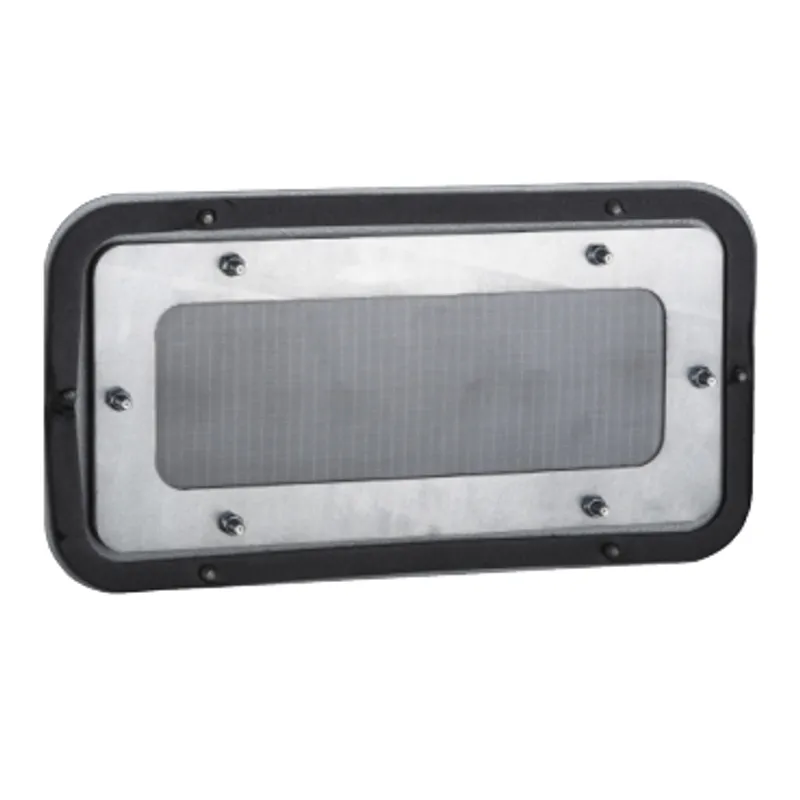

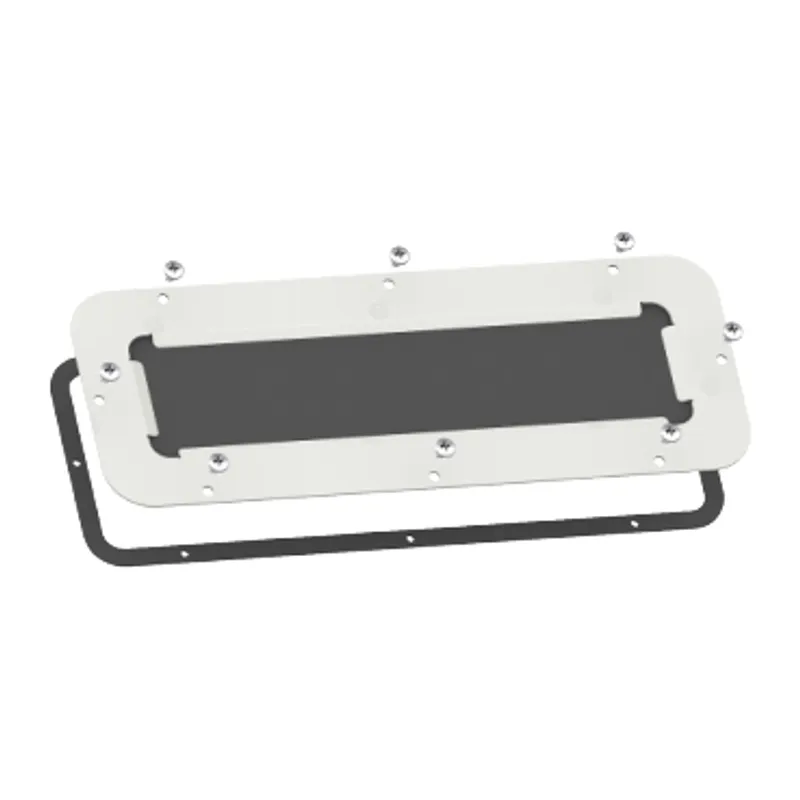

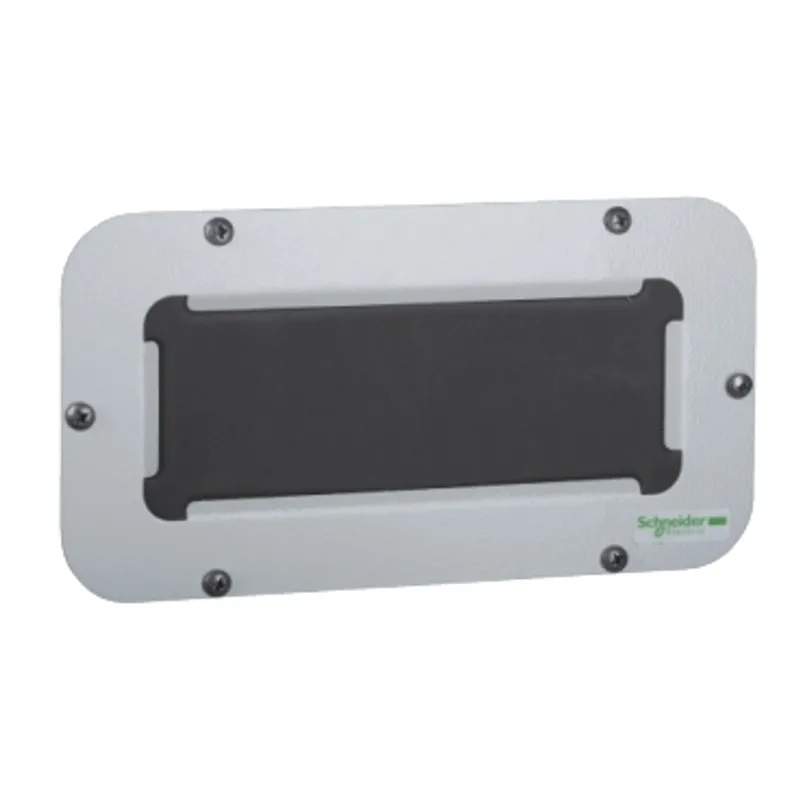

PanelSeT S3D flexicable gland plate with membrane pearcable 178 x 63 mm
- MPN
- NSYTLCME
- EAN
- 3606480467639
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTLCME?
Multi-purpose membrane flexicable gland plate for PanelSeT SF and PanelSeT S3D enclosures The product is made of steel plate and HCE (heat curable elastomer) membrane The plate is 1,5mm thick The width is 245mm and real width is 260mm The height is 30mm The depth is 130mm The set contains 1 plate and membrane The flexicable gland plate is to be mounted on enclosure bottom The cable gland is undrilled Anti-corrosion protection is ensured by an epoxy-polyester powder coating
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Flexicable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT SF, PanelSeT S3D |
| Mounting location | Enclosure bottom |
| Cable gland type | Pierceable by screwdriver |
| Type of gland plate | Membrane |
| Cable outer diameter | 10…26 mm |
| Cable entry | Without |
| Device composition | 1 plate, membrane |
| Quantity per set | Set of 1 |
| Material | Plate: steel, Membrane: HCE (heat curable elastomer) |
| Colour | Plate: grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Height | 30 mm |
| Width | 245 mm, Real: 260 mm |
| Depth | 130 mm |
| Net weight | 0.536 kg |
| thickness | 1.5 mm |
| Number of cut-out | Undrilled |
| Cut-out dimensions | 178 x 63 mm |
Packaging
| Package 1 | 1 PCE, 26.000 cm × 13.500 cm × 3.000 cm (L × W × H), 574.000 g |
| Package 2 | 100 P12, 120.000 cm × 80.000 cm × 40.000 cm (L × W × H), 68.000 kg |
