Schneider Electric NSYTLB
Standard for PanelSeT S3D encl. RAL7035, L245xW80
- MPN
- NSYTLB
- EAN
- 3606480168499
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYTLB?

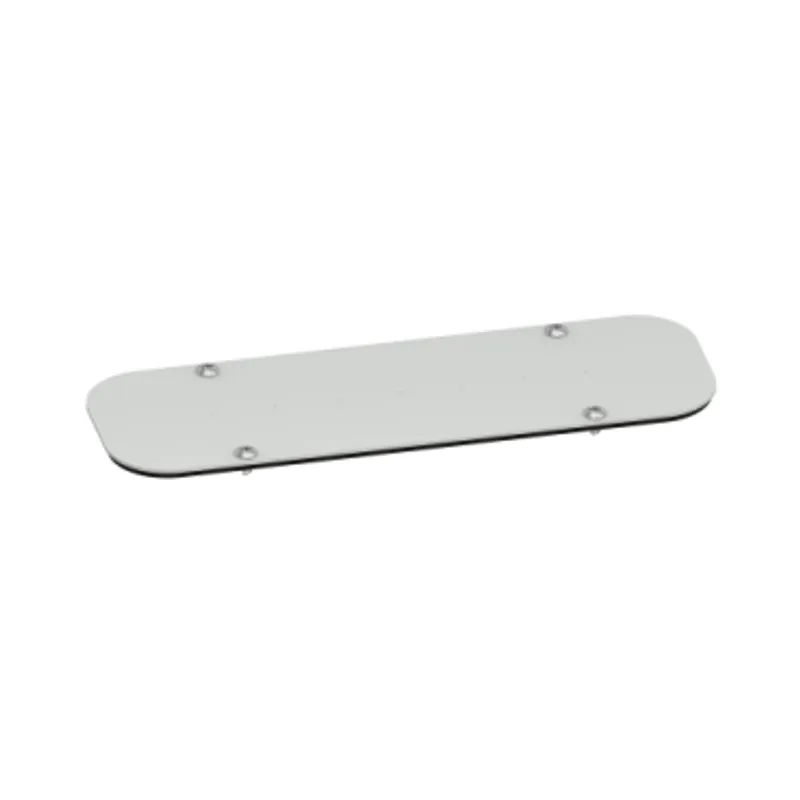

Multi-purpose cable gland plate for PanelSeT S3D enclosures The product is made of steel plate and polyethylene (PE) foam seal The plate is 1,5mm thick The width is 245mm and real width is 200mm The height is 245mm The depth is 80mm and real depth is 400mm The set contains fixing elements, 1 plate and 1 separate gasket The cable gland plate is to be mounted on enclosure bottom The cable gland has 7 markings 25mm Anti-corrosion protection is ensured by an epoxy-polyester powder coating
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT S3D PanelSeT S3D |
| Mounting location | Enclosure bottom |
| Cable gland type | Standard |
| Device composition | Fixing elements, 1 plate, 1 separate gasket |
| Quantity per set | Set of 1 |
| Material | Plate: steel, Seal: polyethylene (PE) foam |
| Colour | Plate: grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Number of cut-out | 7 markings 25 mm |
| Height | 245 mm |
| Width | 245 mm, Real: 200 mm |
| Depth | 80 mm, Real : 400 mm |
| Net weight | 0.302 kg |
| thickness | 1.5…2.0 mm |
Packaging
| Package 1 | 1 PCE, 1.000 cm × 9.000 cm × 26.500 cm (L × W × H), 302.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTLB: frequently asked questions
When can NSYTLB be shipped?
NSYTLB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTLB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTLB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTLB, subject to availability and destination.
