Schneider Electric NSYSFND20122DT
Double glazed door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W1200mm
- MPN
- NSYSFND20122DT
- EAN
- 3606486378373
- Category
- PanelSeT SFN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

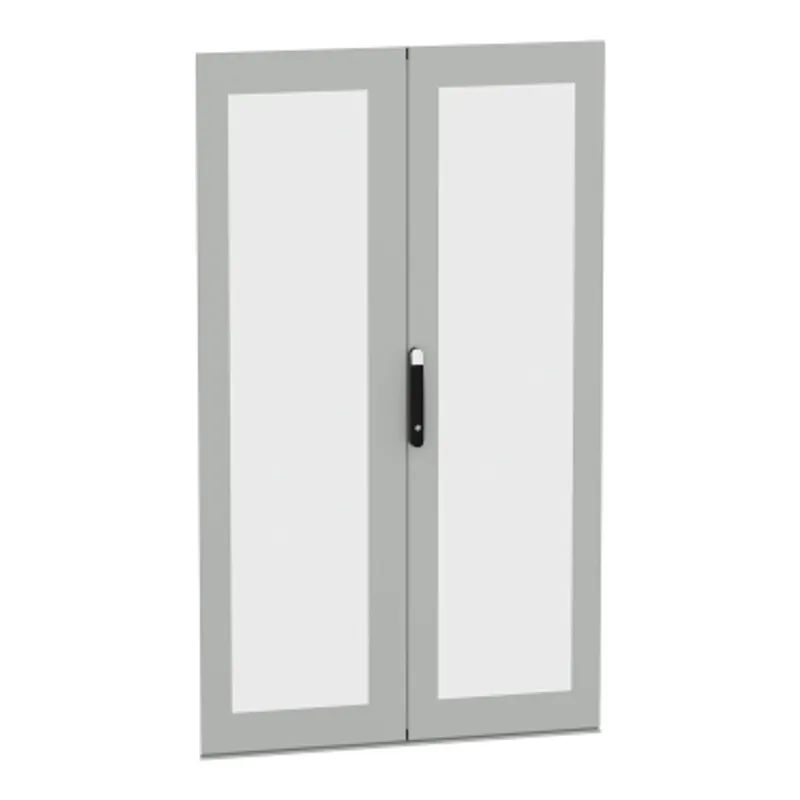

What is the Schneider Electric NSYSFND20122DT?
"This glazed double door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications." "It is compatible with PanelSeT SM floor standing steel enclosure." "The doors are made of steel sheet and Securit glass, while the handle is made of polyamide 6 with 30% fiberglass." "An epoxy-polyester powder finish provides a smooth appearance." "It has a grey (RAL 7035) color with a black (RAL 9005) handle." "They have an aperture up to 120 degrees." "The main door has a four-point lock with a handle that has a 5 mm double-bar insert for security, while the secondary door has a locking bar system with a handle." Minimal use of hazardous substances. Minimal use of hazardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - H: 2000 mm W: 1200 mm |
| Mounting location | Front |
| Range compatibility | PanelSeT SFN |
| Device composition | 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 2 door, 1 locking bar system 2 points, 8 hinges |
| Quantity per set | Set of 1 |
| Material | Door: Securit glass, Door: sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | External transparent |
| Door opening side | Reversible (120 °) |
| Maximum load | 60 kg/m² |

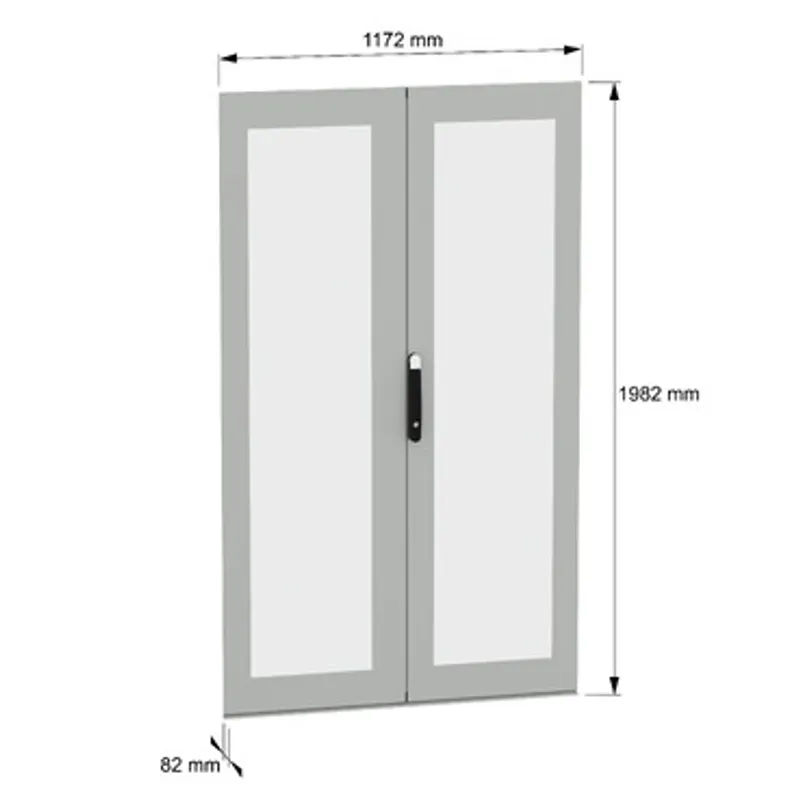

| Height | Nominal: 1966 mm |
| Width | Nominal: 1169 mm |
| Net weight | 23.4 kg |
| IK degree of protection | IK08 |
Packaging
| Package 1 | 1 PCE, 10.000 cm × 68.000 cm × 200.000 cm (L × W × H), 37.000 kg |
| Package 2 | 8 P2M, 120.000 cm × 200.000 cm × 98.000 cm (L × W × H), 328.000 kg |
