Schneider Electric NSYSFND2010

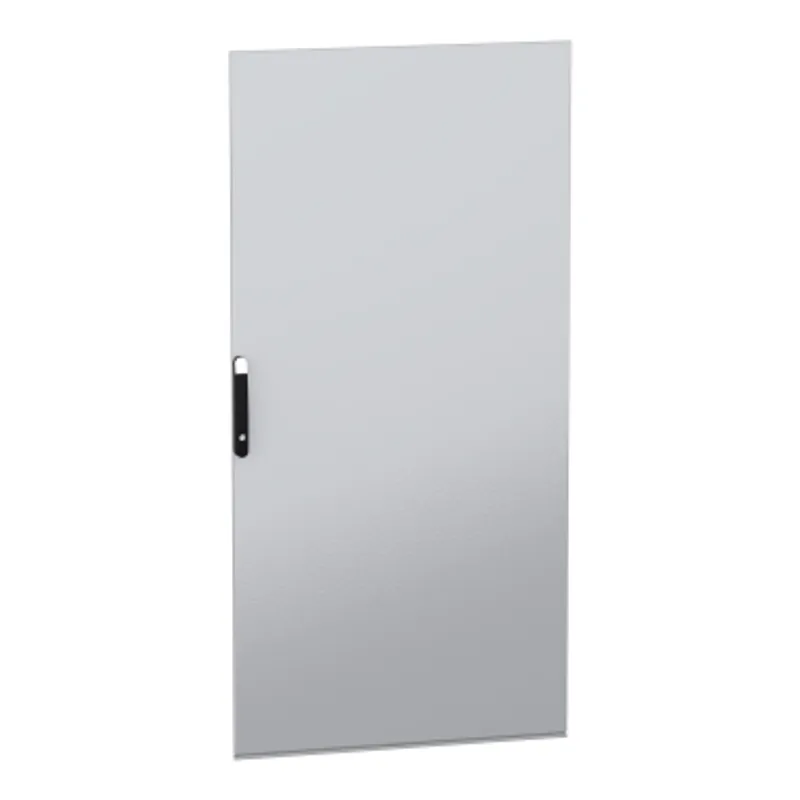

Plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W1000mm
- MPN
- NSYSFND2010
- EAN
- 3606486378144
- Category
- PanelSeT SFN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFND2010?

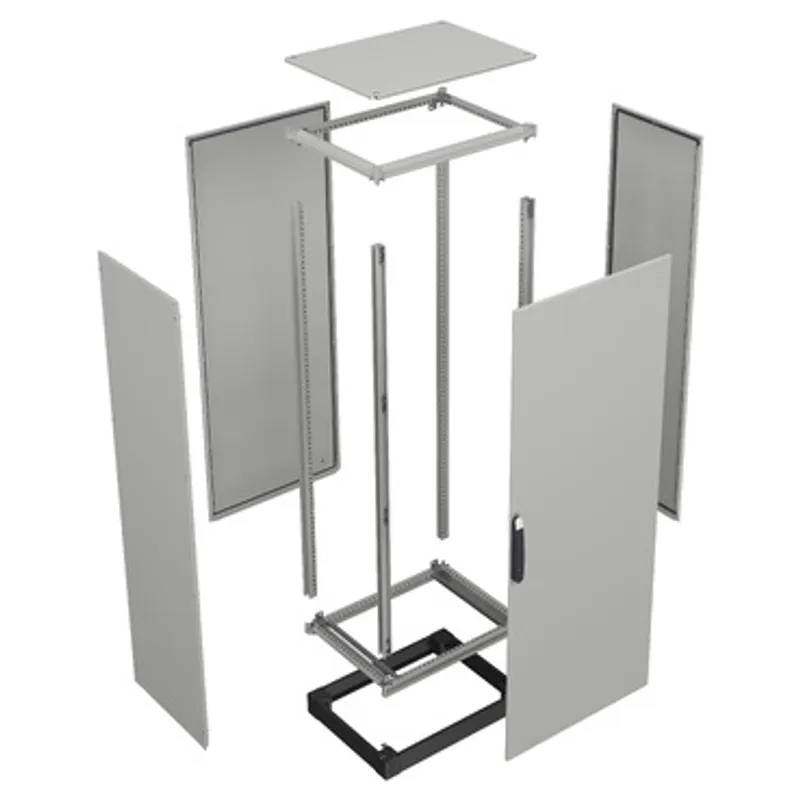

"This steel door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications." "It is compatible with PanelSeT SM floor standing steel enclosure." "It has a nominal height and width of 2000 mm and 1000 mm, respectively." "The door is made of steel sheet, while the handle is made of polyamide 6 with 30% fiberglass." "An epoxy-polyester powder finish provides a smooth appearance." "It has a grey (RAL 7035) color with a black (RAL 9005) handle." "It has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side." "The door has a four-point lock with a handle that has a 5 mm double-bar insert for security." Minimal use of hazardous substances.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |

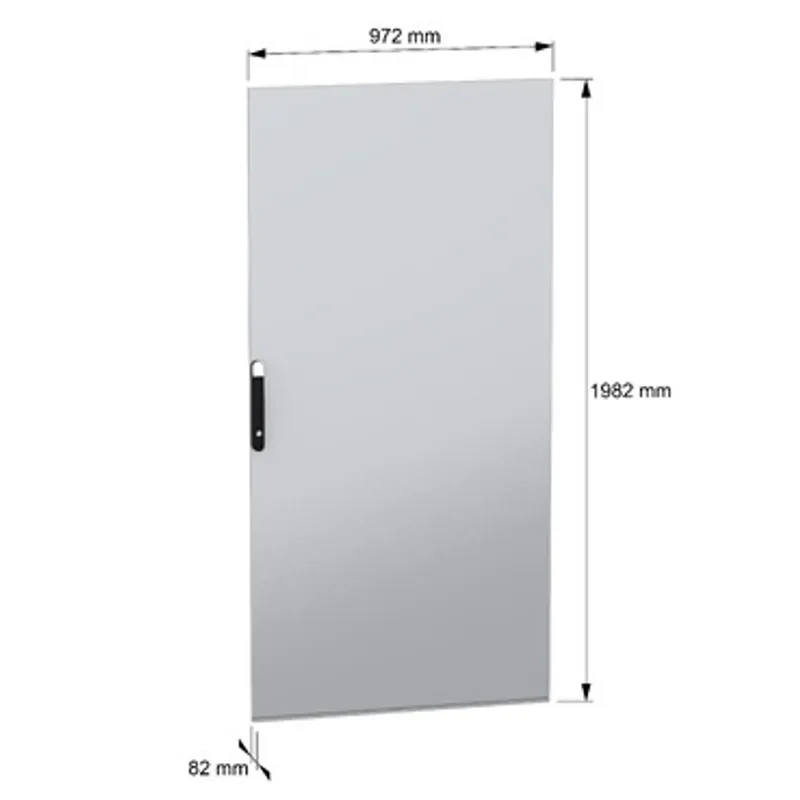

| For enclosure nominal dimensions | - H: 2000 mm W: 1000 mm |
| Mounting location | Front |
| Range compatibility | PanelSeT SFN |
| Device composition | 1 door, 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 1 reinforcement frame, 4 hinges, 4 locking bar catches |
| Quantity per set | Set of 1 |
| Material | Sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | External plain |
| Door opening side | Reversible (120 °) |
| Maximum load | 60 kg/m² |
| Height | Nominal: 1966 mm |
| Width | Nominal: 969 mm |
| Net weight | 17.5 kg |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 200.000 cm × 99.000 cm × 5.500 cm (L × W × H), 37.500 kg |
| Package 2 | 16 P2M, 200.000 cm × 120.000 cm × 101.500 cm (L × W × H), 639.000 kg |
