Schneider Electric NSYSDCR250

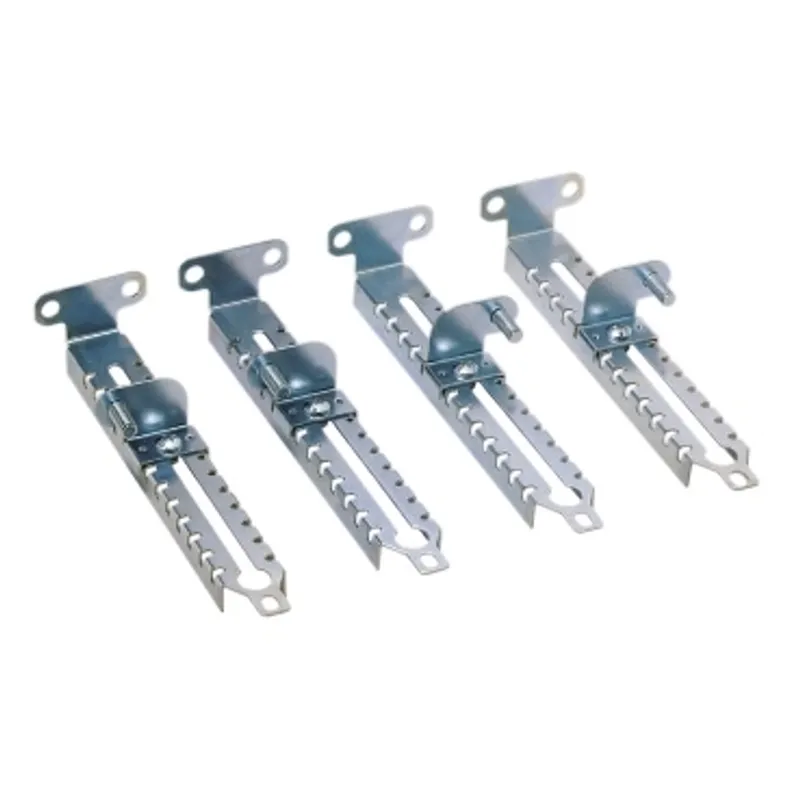

Set of 4 step slides made of treated steel, D250mm
- MPN
- NSYSDCR250
- EAN
- 3606480184277
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSDCR250?
Set of step slides made of treated steel. D is250 mm. Compatible with Spacial CRN, S3D, S3X, S3CM. Mounting on sides of enclosure. Fixing by element, or on backstuds (welded). In depth of the plate in steps of 12.5 mm adjustment. Galvanised steel. Set of 4.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Step slide |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT S3CM, PanelSeT S3X |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Sides of enclosure |
| Device composition | 4 sliding rails, 4 sliding support, fixing elements |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element, On backstuds (welded in the enclosure) |
| Adjustment | In depth of the plate or other accessories in steps of 12.5 mm |
| Depth | Nominal : 250 mm |
| Net weight | 0.6 kg |
Packaging
| Package 1 | 1 PCE, 22.000 cm × 13.500 cm × 6.000 cm (L × W × H), 600.000 g |
| Package 2 | 300 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 250.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSDCR250: frequently asked questions
When can NSYSDCR250 be shipped?
NSYSDCR250 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSDCR250 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSDCR250 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSDCR250, subject to availability and destination.
