Schneider Electric
NSYSDC42Modular console for PanelSeT SD Compact control desk with rear panel - W400xD200

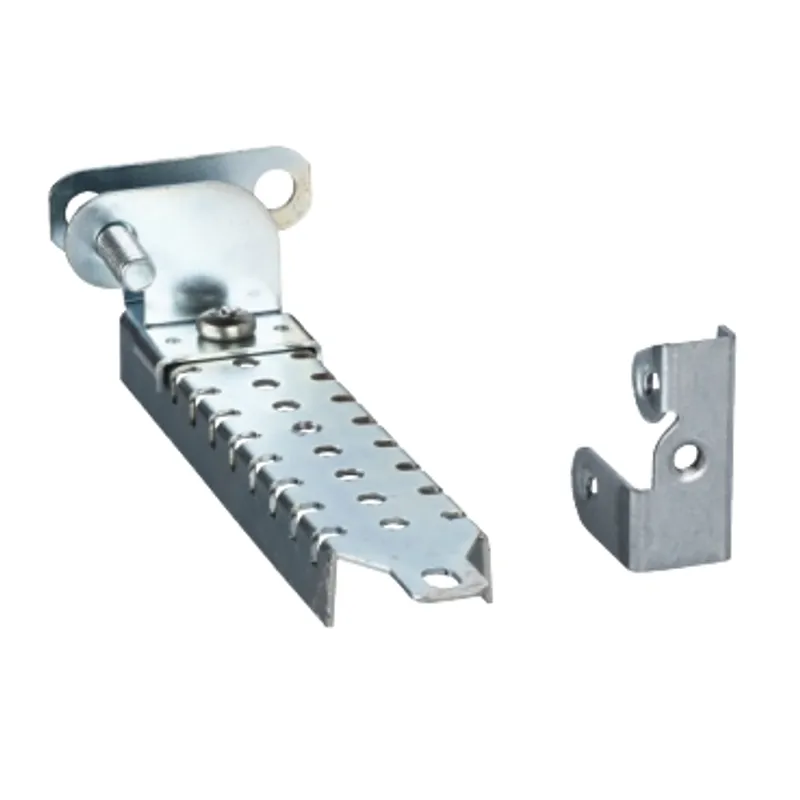

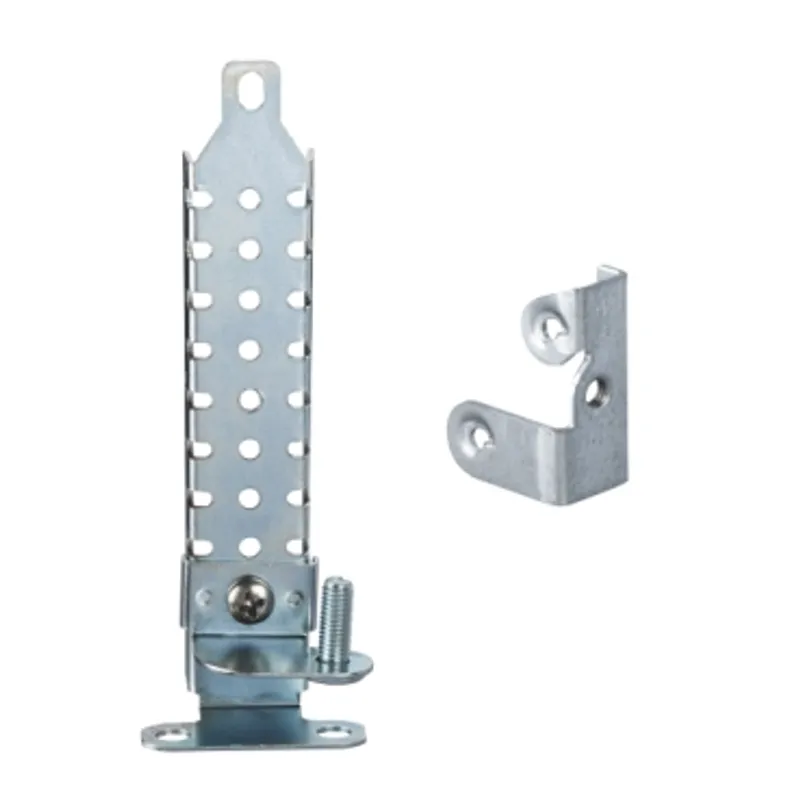

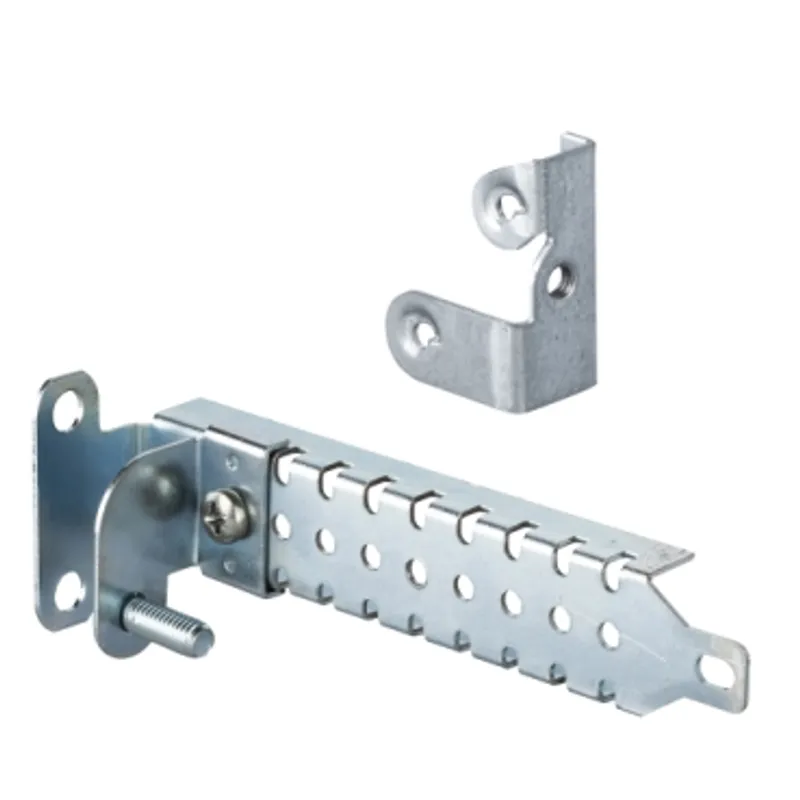

Schneider Electric NSYSDCR200
Set of 4 step slides made of treated steel, D200mm
- MPN
- NSYSDCR200
- EAN
- 3606480184260
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSDCR200?
Set of step slides made of treated steel. D is200 mm. Compatible with Spacial CRN, S3D, S3X, S3CM. Mounting on sides of enclosure. Fixing by element, or on backstuds (welded). In depth of the plate in steps of 12.5 mm adjustment. Galvanised steel. Set of 4.
Specifications
Specifications
| category | Mounting accessory |
| Product or component type | Step slide |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT S3CM, PanelSeT S3X |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Mounting location | Sides of enclosure |
| Device composition | 4 sliding rails, 4 sliding support, fixing elements |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | By fixing element, On backstuds (welded in the enclosure) |
| Adjustment | In depth of the plate or other accessories in steps of 12.5 mm |
| Depth | Nominal : 200 mm |
| Net weight | 0.5 kg |
Packaging
| Package 1 | 1 PCE, 17.000 cm × 13.500 cm × 6.000 cm (L × W × H), 500.000 g |
| Package 2 | 200 PAM, 120.000 cm × 100.000 cm × 46.000 cm (L × W × H), 149.400 kg |
