Schneider Electric NSYS3D6G32515P

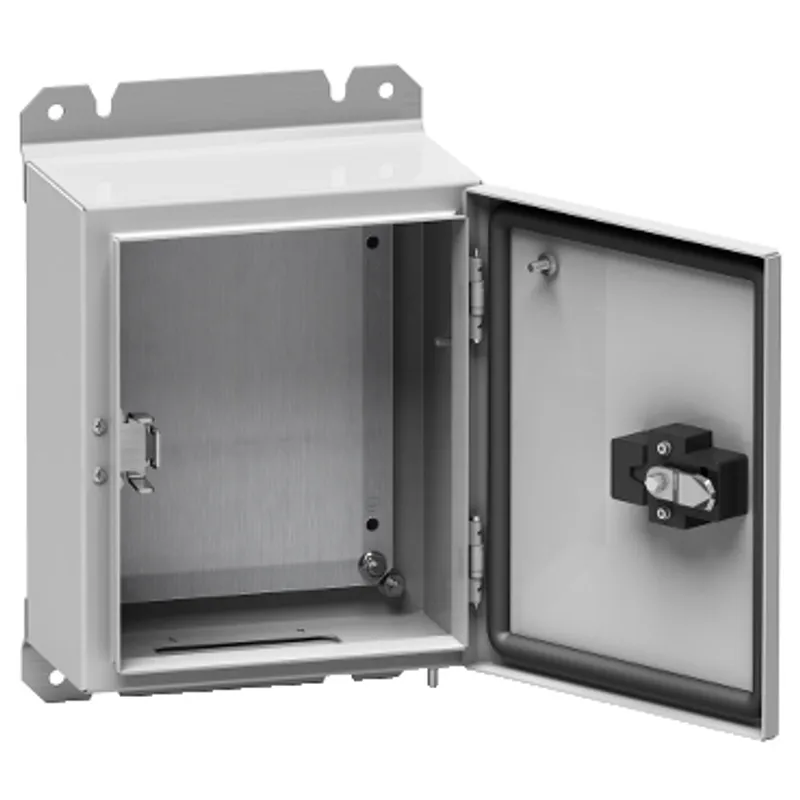

PanelSeT S3D seismic plain door with mount.plate - H300xW250xD150 - IP65 - IK10
- MPN
- NSYS3D6G32515P
- EAN
- 3606480793943
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYS3D6G32515P (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYS3D6G32515P?
Schneider Electric PanelSeT S3D seismic plain door with mount.plate - H300xW250xD150 - IP65 - IK10, manufacturer part number NSYS3D6G32515P. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | S3D 6G |
| Enclosure application | Seismic |
| Product or component type | Enclosure |
| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 250 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Plain |
| Mounting plate description | Reinforce |
| Enclosure mounting | Wall mounted |
| Device composition | 1 x body, 1 x door, 1 x lock, 2 x fixing bracket, 1 x mounting plate, 1 x earthing components door and lock, 1 x cable gland plate |
| Continuity of earth | Earthing connection between body and door |
| Body type | Single piece body, Gutter-shaped front rail |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Right (120 °) |
| Lock type | 1-point closure |
| Type of keylock | 405E |
| Type of operating handle | Lock button |
| Accessibility for operation | Front |
| Removable parts | Cable gland plate by screws |
| Material | Steel |
| Thickness | Body: 2 mm, Door: 2 mm, Cable gland plate: 1.5 mm |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Net weight | 9 kg |
| Surface treatment | 87 % decontaminable painting conforming to NF T 30-501. |
| Standards | IEC 62208, EDF CRT 91 C 112 00 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Seismic performance | Seismic tests 6G conforming to EDF CRT 91 C 112 00 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 35.000 cm × 33.000 cm × 21.000 cm (L × W × H), 8.820 kg |
| Package 2 | 20 PAM, 120.000 cm × 100.000 cm × 93.000 cm (L × W × H), 188.400 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3D6G32515P: frequently asked questions
Can I still buy the NSYS3D6G32515P now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYS3D6G32515P, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYS3D6G32515P be shipped?
NSYS3D6G32515P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3D6G32515P in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3D6G32515P and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D6G32515P, subject to availability and destination.
