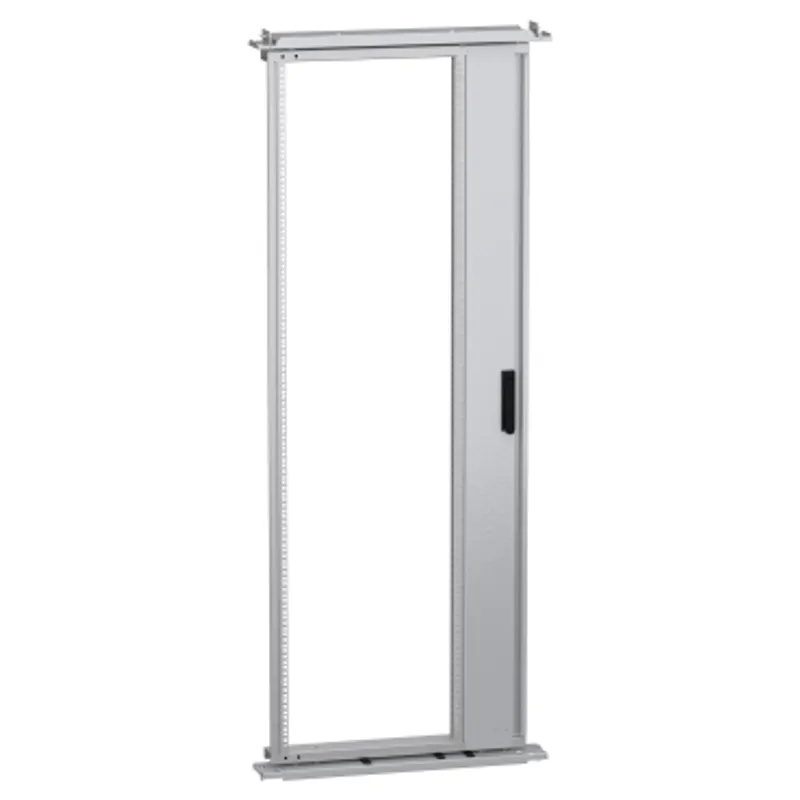

PanelSeT SF/SM 19" swing rack - 2000x800 mm - 40 modules
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT for IT network and server cabinets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 26 kg |
Shipping & availability
When can NSYRSW40 be shipped?
NSYRSW40 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYRSW40 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYRSW40 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYRSW40, subject to availability and destination.

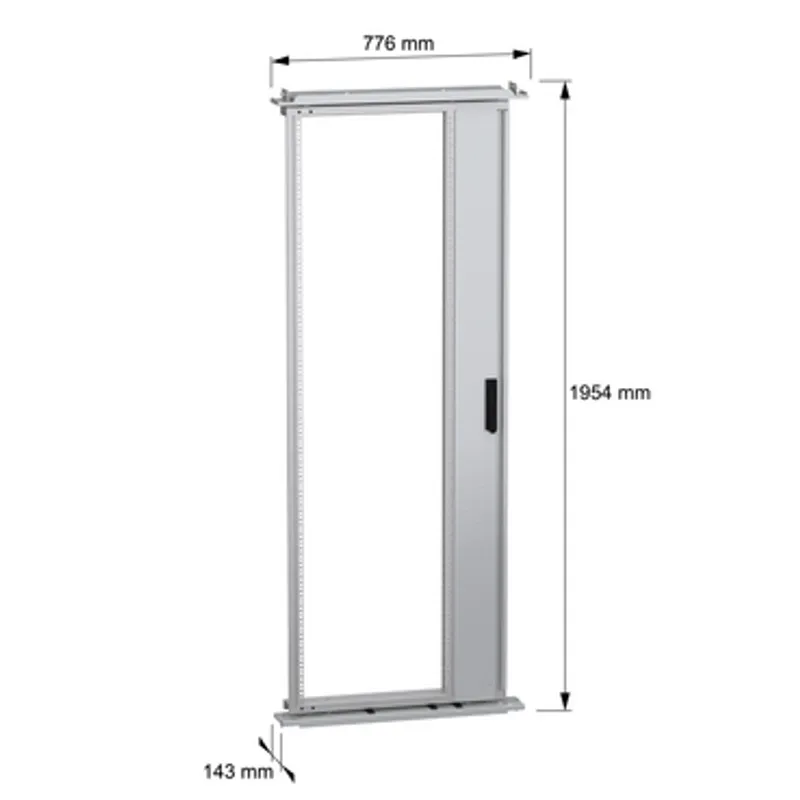

Swing off-centred racks allow mounting rackable electronic equipment with 19" server racks in Spacial SF and Spacial SM enclosures The width is 800mm The height is 2000mm The depth is 1901mm Supports mounting of 40 units Depth adjustable in steps of 25mm Opening is reversible, opening angle is 120 ° The kit supplied with fixing elements, 2 800mm swing rack supports, 1 hinged rack and 1 side lid with handle
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - H: 2000 mm |
| Rack type | Swing |
| Mounting location | On structure of enclosure |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | Fixing elements, 2 800 mm swing rack supports, 1 hinged rack, 1 side lid with handle |
| Quantity per set | Set of 1 |
| Number of units 19" | 40 |
| Rack coverage | Complete |
| Rack position | Off-centered |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| Lock type | Handle with ball lock |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Colour | Side plate: grey (RAL 7035) |
| Permanent permissible load | 3.75 kg per unit with a maximum of 150 kg |
| Opening of the 19" racks | Reversible 120 ° |
| Height | 2000 mm |
| Width | 800 mm |
| Depth | 1901 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 72.500 cm |
| Package 1 Length | 196.000 cm |
| Package 1 Weight | 26.000 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 120.000 cm |
| Package 2 Width | 120.000 cm |
| Package 2 Length | 210.000 cm |
| Package 2 Weight | 349.000 kg |
| Warranty | 18 months |
