PanelSeT for IT network and server cabinets Parts

Schneider Electric

NSYPCVDN228

Ventilated single door;PanelSeT SFN;for 19" electronic enclosure H2200 W800mm

Schneider Electric

NSYPCVDN226

Ventilated single door;PanelSeT SFN;for 19" electronic enclosure H2200 W600mm

Schneider Electric

NSYPCVDN208

Ventilated single door;PanelSeT SFN; for 19" electronic enclosure H2000 W800mm

Schneider Electric

NSYPCVDN206

Ventilated single door;PanelSeT SFN;for 19" electronic enclosure H2000 W600mm

Schneider Electric

NSYPCVDN188

Ventilated single door;PanelSeT SFN;for 19" electronic enclosure H1800 W800mm

Schneider Electric

NSYPCVDN128

Ventilated single door;PanelSeT SFN;for 19" electronic enclosure H1200 W800mm

Schneider Electric

NSYPCVDN126

Ventilated single door;PanelSeT SFN;for 19" electronic enclosure H1200 W600mm

Schneider Electric

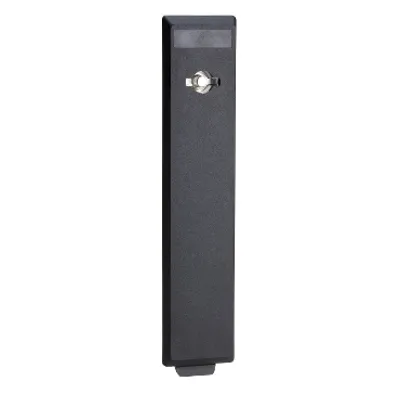

NSYRCLOCK

PanelSeT SF/SM flat escutcheon - lock 5 mm double bar

Schneider Electric

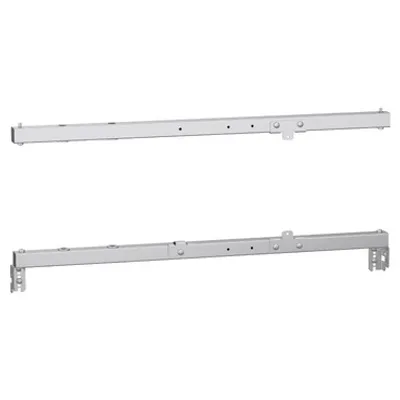

NSYRSWSP8

Set of 2 PanelSeT SF/SM partial 19" swing rack supports - 800 mm

Schneider Electric

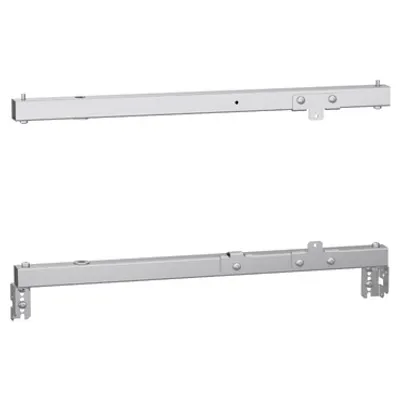

NSYRSWSP6

Set of 2 PanelSeT SF/SM partial 19" swing rack supports - 600 mm

Schneider Electric

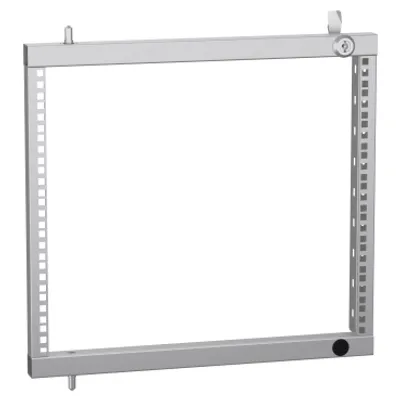

NSYRSWP9

PanelSeT SF/SM partial 19" swing rack - 468 mm

Schneider Electric

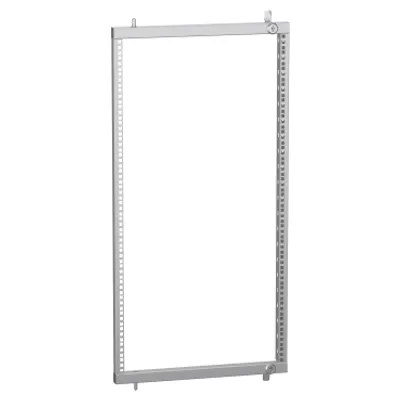

NSYRSWP21

PanelSeT SF/SM partial 19" swing rack - 1002 mm

Schneider Electric

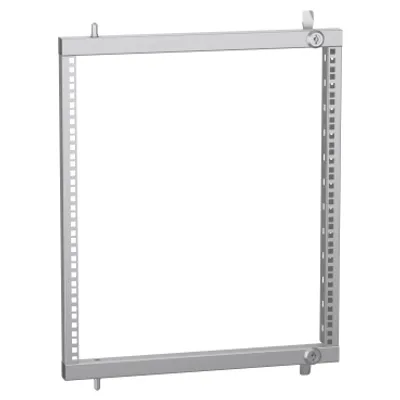

NSYRSWP12

PanelSeT SF/SM partial 19" swing rack - 601 mm

Schneider Electric

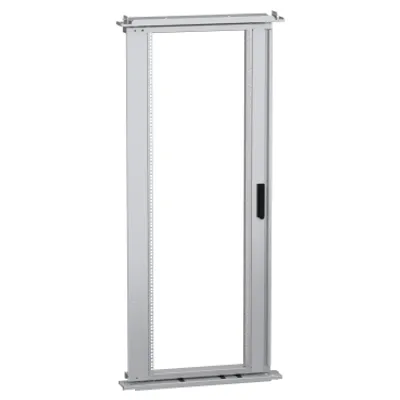

NSYRSWC36

PanelSeT SF/SM 19" swing rack - 1800x800 mm - 36 modules

Schneider Electric

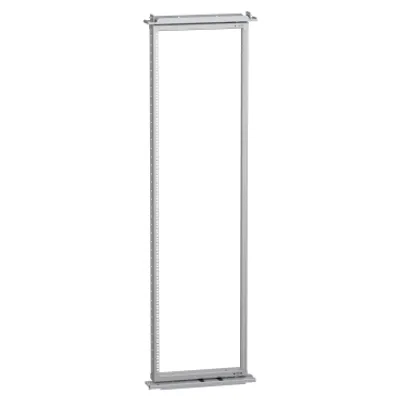

NSYRSW640

PanelSeT SF/SM 19" swing rack - 2000x600 mm - 40 modules

Schneider Electric

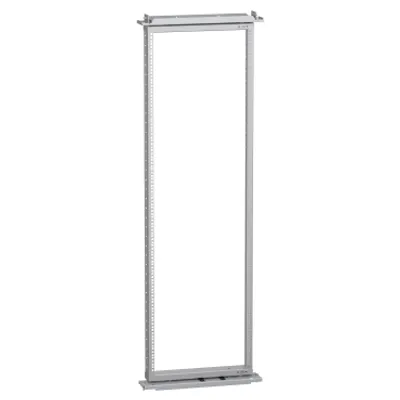

NSYRSW636

PanelSeT SF/SM 19" swing rack - 1800x600 mm - 36 modules

Schneider Electric

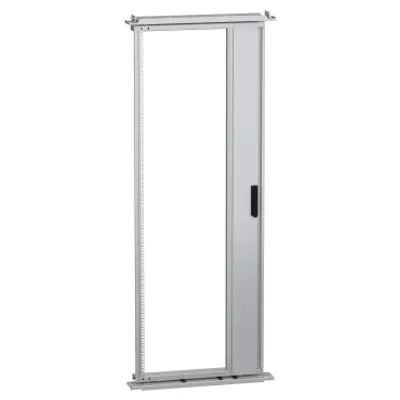

NSYRSW40

PanelSeT SF/SM 19" swing rack - 2000x800 mm - 40 modules

Schneider Electric

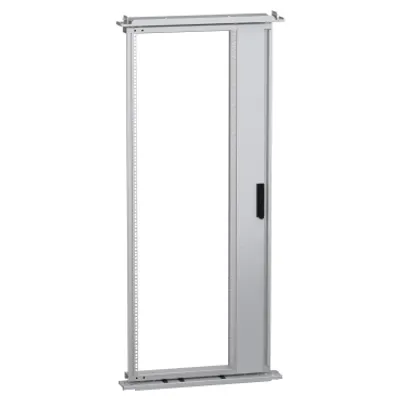

NSYRSW36

PanelSeT SF/SM 19" swing rack - 1800x800 mm - 36 modules

Schneider Electric

NSYRSW31

PanelSeT SF/SM 19" swing rack - 1600x800 mm - 31 modules

Schneider Electric

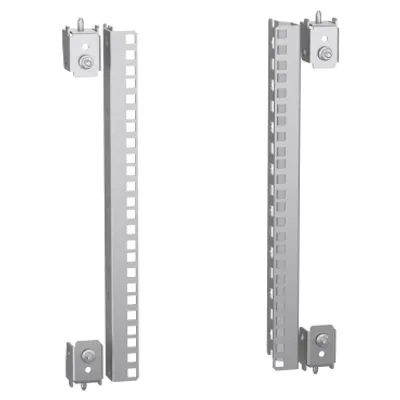

NSYRCKP8

PanelSeT SF/SM partial 19" fixed rack - 400 mm

Schneider Electric

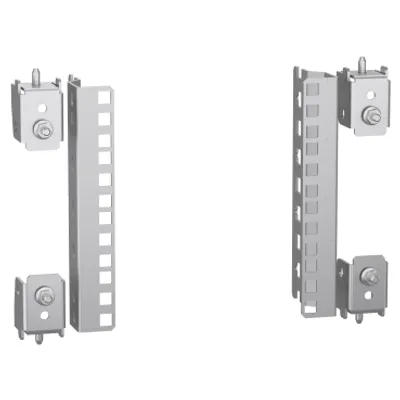

NSYRCKP4

PanelSeT SF/SM partial 19" fixed rack - 200 mm

Schneider Electric

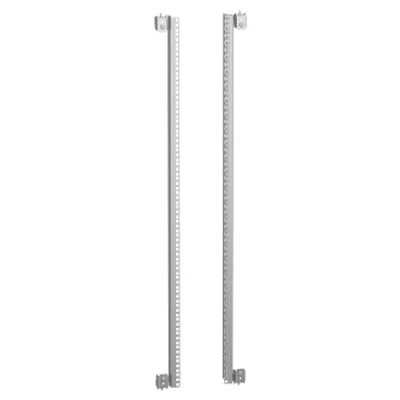

NSYRCKP26

PanelSeT SF/SM partial 19" fixed rack - 1200 mm

Schneider Electric

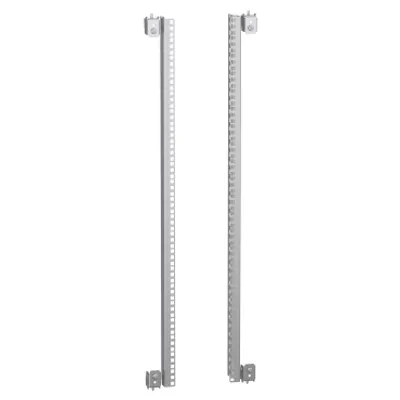

NSYRCKP21

PanelSeT SF/SM partial 19" fixed rack - 1000 mm

Schneider Electric

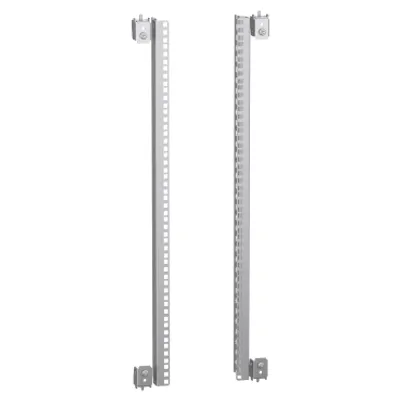

NSYRCKP17

PanelSeT SF/SM partial 19" fixed rack - 800 mm

Compare PanelSeT for IT network and server cabinets

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product or component type	For enclosure nominal dimensions	Mounting location	Height	Width
NSYPCVDN228	19" door	-	Front	Nominal: 2200 mm	Nominal: 800 mm
NSYPCVDN226	19" door	-	Front	Nominal: 2200 mm	Nominal: 600 mm
NSYPCVDN208	19" door	-	Front	Nominal: 2000 mm	Nominal: 800 mm
NSYPCVDN206	19" door	-	Front	Nominal: 2000 mm	Nominal: 600 mm
NSYPCVDN188	19" door	-	Front	Nominal: 1800 mm	Nominal: 800 mm
NSYPCVDN128	19" door	-	Front	Nominal: 1200 mm	Nominal: 800 mm
NSYPCVDN126	19" door	-	Front	Nominal: 1200 mm	Nominal: 600 mm
NSYRCLOCK	Escutcheon	—	—	—	—
NSYRSWSP8	Swing rack support	- W: 800 mm	—	Real: 40 mm	Nominal: 800 mm, Real: 9.5 mm
NSYRSWSP6	Swing rack support	-	—	45 mm	Nominal: 600 mm, 650 mm
NSYRSWP9	19" rack	- H: 468 mm	Front of enclosure	468 mm	600 mm, 800 mm
NSYRSWP21	19" rack	- H: 1002 mm	Front of enclosure	1002 mm	600 mm, 800 mm
NSYRSWP12	19" rack	- H: 601 mm	Front of enclosure	601 mm	600 mm, 800 mm
NSYRSWC36	19" rack	- H: 1800 mm	On structure of enclosure	1800 mm	800 mm
NSYRSW640	19" rack	-	On structure of enclosure	2000 mm	600 mm
NSYRSW636	19" rack	-	On structure of enclosure	1800 mm	600 mm
NSYRSW40	19" rack	- H: 2000 mm	On structure of enclosure	2000 mm	800 mm
NSYRSW36	19" rack	- H: 1800 mm	On structure of enclosure	1800 mm	800 mm
NSYRSW31	19" rack	- H: 1600 mm	On structure of enclosure	1600 mm	800 mm
NSYRCKP8	19" rack	- H: 400 mm	Top front of enclosure	400 mm	Nominal: 600 mm, Nominal: 800 mm
NSYRCKP4	19" rack	- H: 200 mm	Top front of enclosure	200 mm	Nominal: 600 mm
NSYRCKP26	19" rack	- H: 1200 mm	Top front of enclosure	1200 mm	Nominal: 600 mm, Nominal: 800 mm
NSYRCKP21	19" rack	- H: 1000 mm	Top front of enclosure	1000 mm	Nominal: 600 mm, Nominal: 800 mm
NSYRCKP17	19" rack	- H: 800 mm	Top front of enclosure	800 mm	Nominal: 600 mm, Nominal: 800 mm
