Schneider Electric NSYMP2010L
Wide mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H2000 W1000mm, galvanized steel
- MPN
- NSYMP2010L
- EAN
- 3606480398452
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMP2010L?

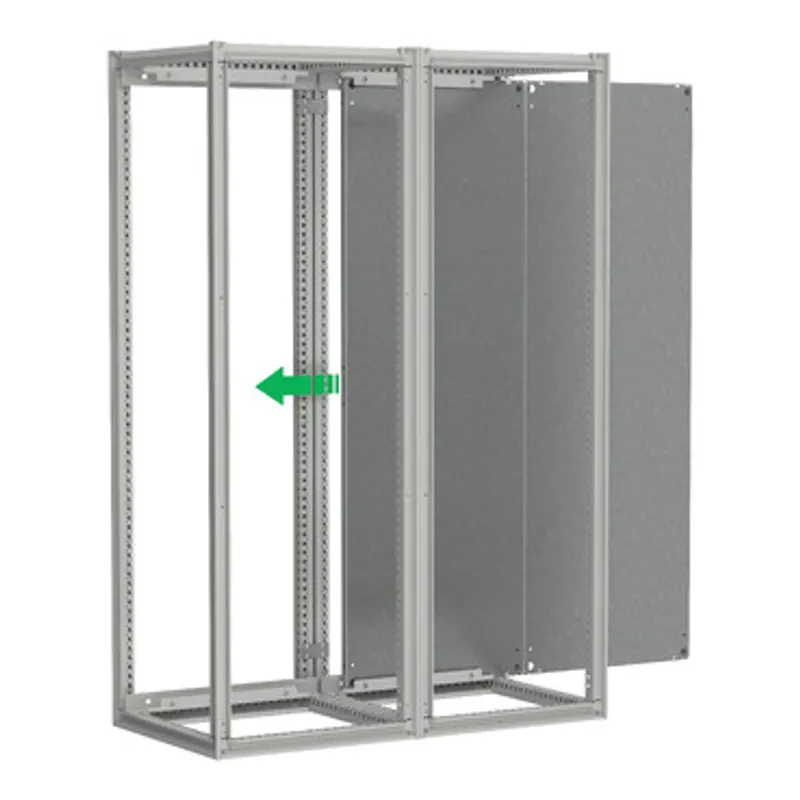

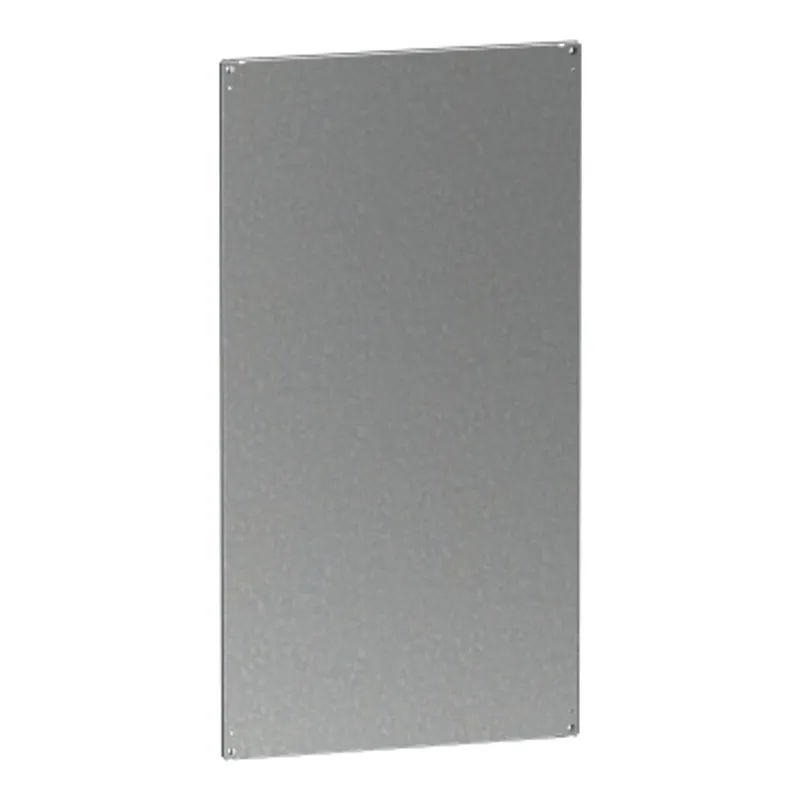

This is an extra-large mounting plate suitable for PanelSeT SFN and PanelSeT floor-standing electrical enclosures. It can be installed in enclosures with nomial height and depth of 2000 and 1000 mm respectively. It is made of galvanized steel. It can be adjusted in depth with a pitch of 25 mm.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 2000 mm W: 1000 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Device composition | 1 mounting plate |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |

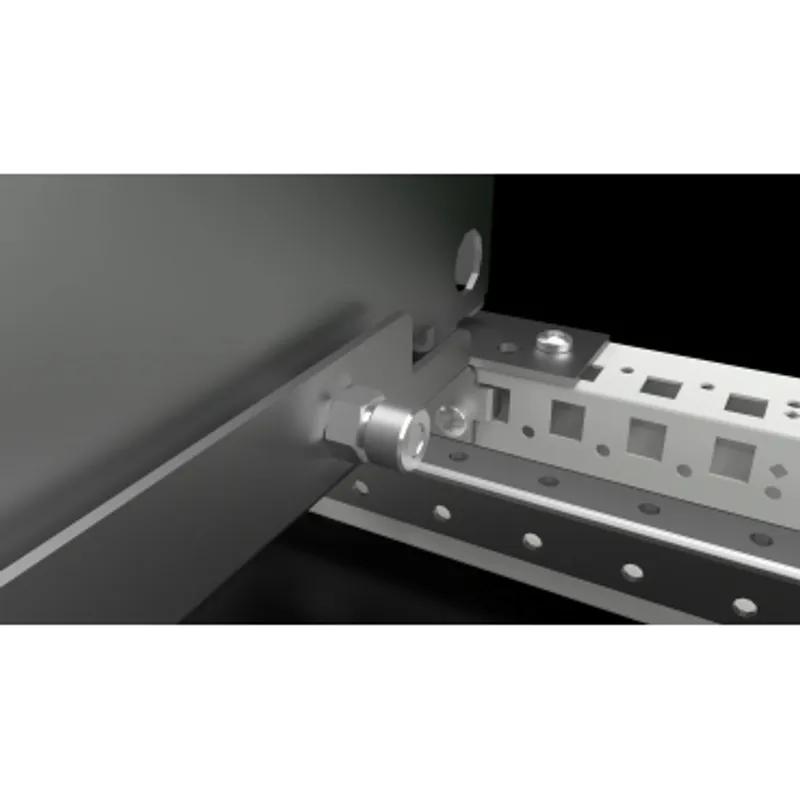

| Fixing mode | Side fixing - rails location |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |

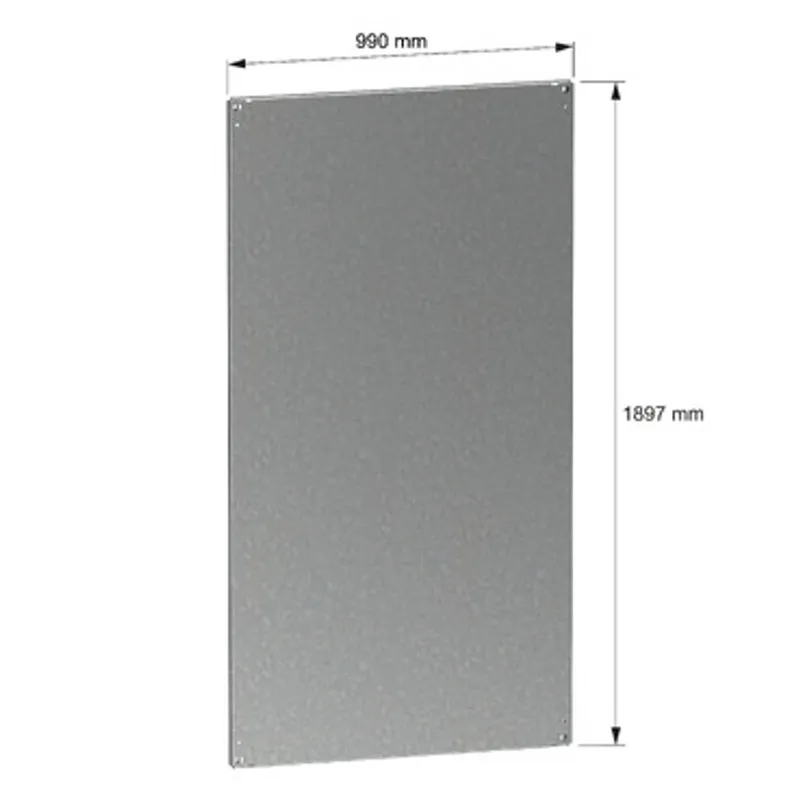

| Height | Nominal: 2000 mm, Real: 1897 mm |
| Width | Nominal: 1000 mm, Real: 990 mm |
| Depth | 27 mm |
Packaging
| Package 1 | 1 PCE, 190.000 cm × 101.000 cm × 4.000 cm (L × W × H), 42.100 kg |
| Package 2 | 15 P2M, 200.000 cm × 120.000 cm × 78.000 cm (L × W × H), 663.000 kg |
