Schneider Electric NSYMP188L
Wide mounting plate, PanelSeT SFN, PanelSeT SF, for electrical enclosure H1800 W800mm, galvanized steel
- MPN
- NSYMP188L
- EAN
- 3606480398414
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMP188L?

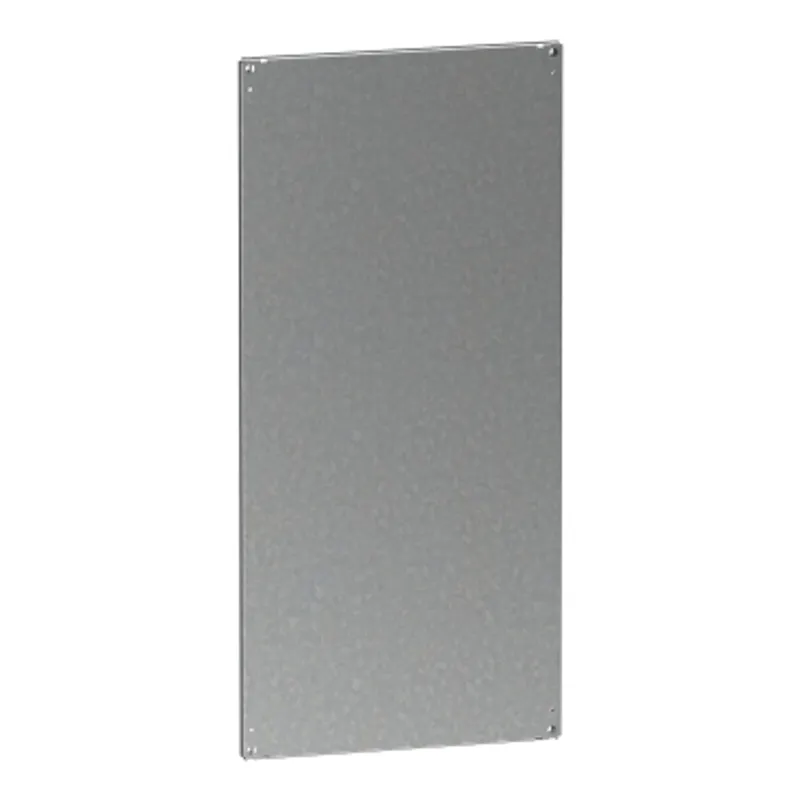

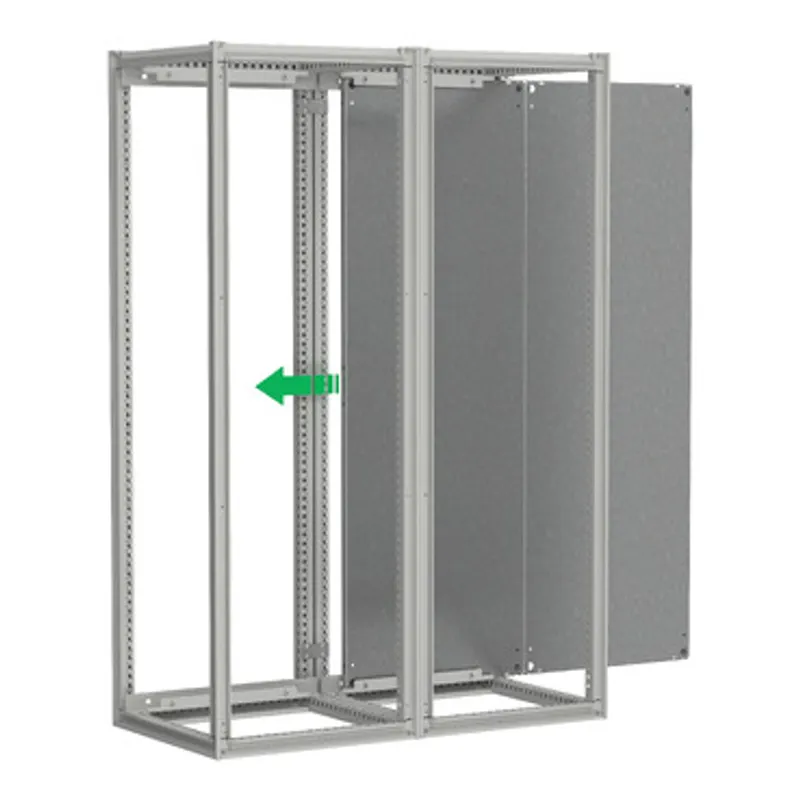

This is an extra-large mounting plate suitable for PanelSeT SFN and PanelSeT floor-standing electrical enclosures. It can be installed in enclosures with nomial height and depth of 1800 and 800 mm respectively. It is made of galvanized steel. It can be adjusted in depth with a pitch of 25 mm.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - H: 1800 mm W: 600 mm |
| Mounting plate description | Plain |
| Range compatibility | PanelSeT PanelSeT SF SF |
| Device composition | 1 mounting plate |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |

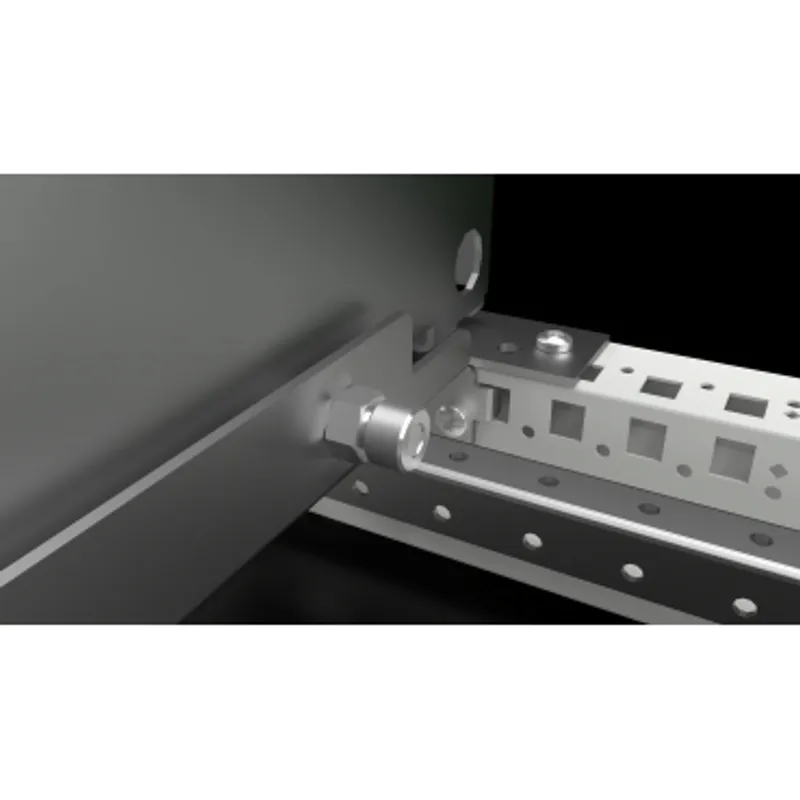

| Fixing mode | Side fixing - rails location |
| Permanent permissible load | 500 kg intermediate position, 600 kg back of the enclosure |
| Height | Nominal: 1800 mm, Real: 1967 mm |
| Width | Nominal: 800 mm, Real: 590 mm |
| Depth | 27 mm |
Packaging
| Package 1 | 1 PCE, 170.000 cm × 81.000 cm × 4.000 cm (L × W × H), 30.000 kg |
| Package 2 | 20 P2M, 200.000 cm × 120.000 cm × 98.000 cm (L × W × H), 649.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMP188L: frequently asked questions
When can NSYMP188L be shipped?
NSYMP188L is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMP188L in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMP188L and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMP188L, subject to availability and destination.
