Schneider Electric NSYMFSC60D

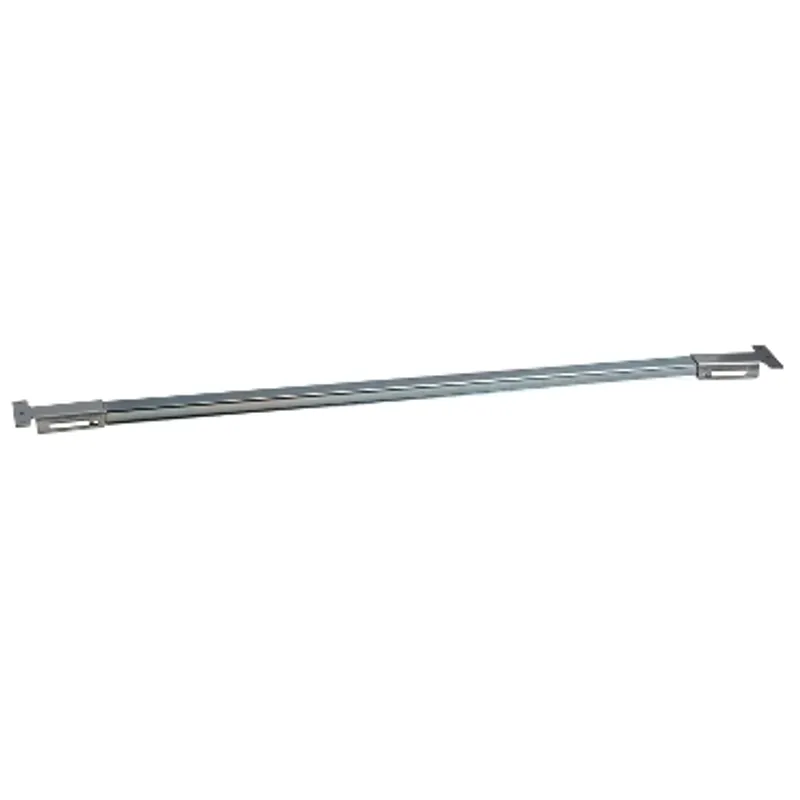

Depth-adjustable rail with supports, PanelSeT SFN, PanelSeT SF, PanelSeT SM, for electrical enclosure W600mm , steel
- MPN
- NSYMFSC60D
- EAN
- 3606480065545
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYMFSC60D?
This is a set made up of a galvanized symmetric DIN rail and depth adjustable mounting supports, for the installation of modular devices or not. The product is suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It is designed to be affixed using screws directly onto the uprights of the modular chassis-coupling set, with an adjustable depth of 52 mm The real depth and height are 495mm and 26mm repectively. The support is made of zinc-coated steel and the DIN is made of galvanized steel. The color is grey RAL7035. The kit contains 1 DIN rail, 2 adjustable supports and fixing elements.
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Din rail support |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Adjustable symmetrical DIN rail |
| Enclosure nominal dimensions | - W: 600 mm |
| Mounting support | Uprights of the chassis coupling set |
| Range compatibility | PanelSeT |
| Device composition | Fixing elements, 1 DIN rail, 2 adjustable support |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By screws |
| Adjustment | Adjustable in depth 52 mm |
| Height | Real: 26 mm |
| Depth | Real : 495 mm |
Packaging
| Package 1 | 1 PCE, 50.000 cm × 6.500 cm × 3.000 cm (L × W × H), 532.000 g |
| Package 2 | 250 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 150.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMFSC60D: frequently asked questions
When can NSYMFSC60D be shipped?
NSYMFSC60D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMFSC60D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMFSC60D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMFSC60D, subject to availability and destination.
