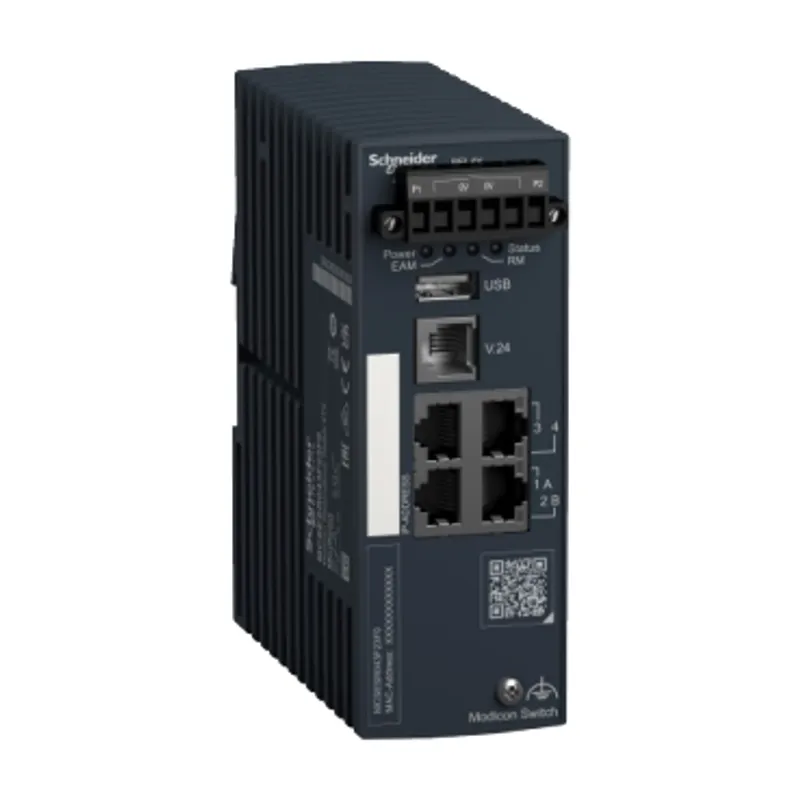

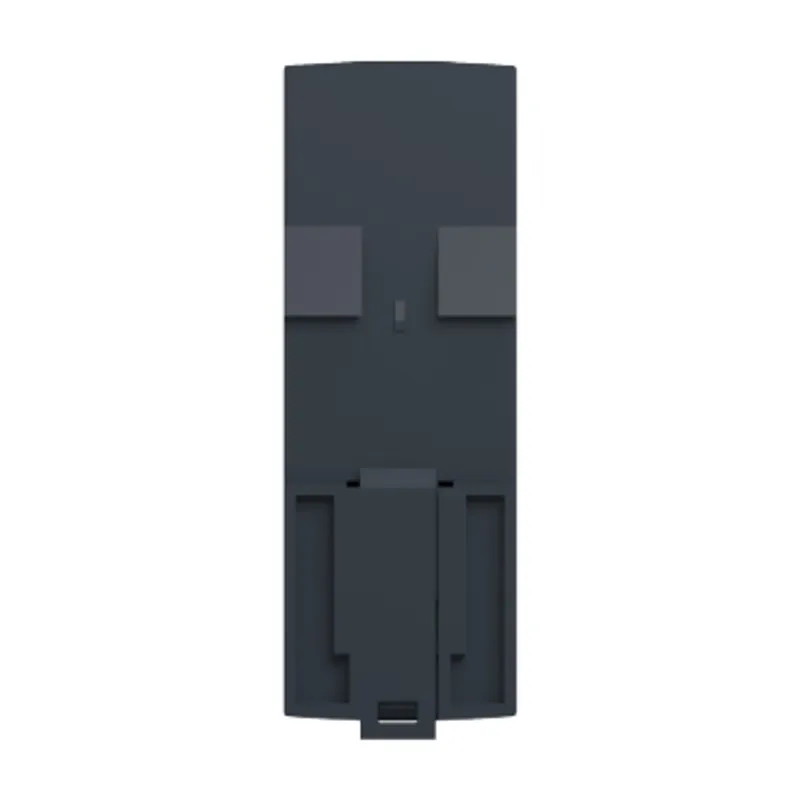

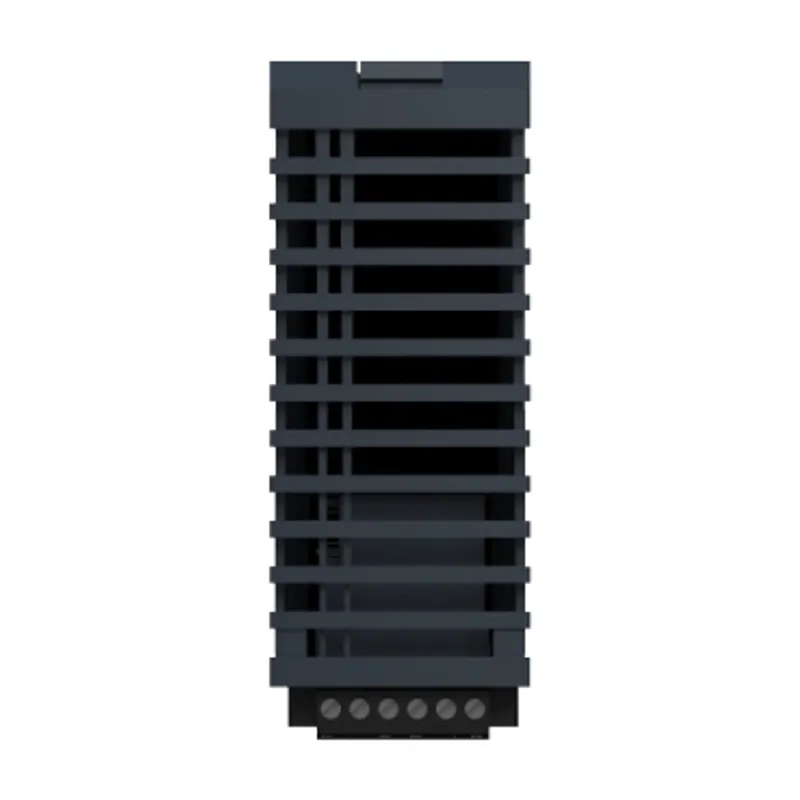

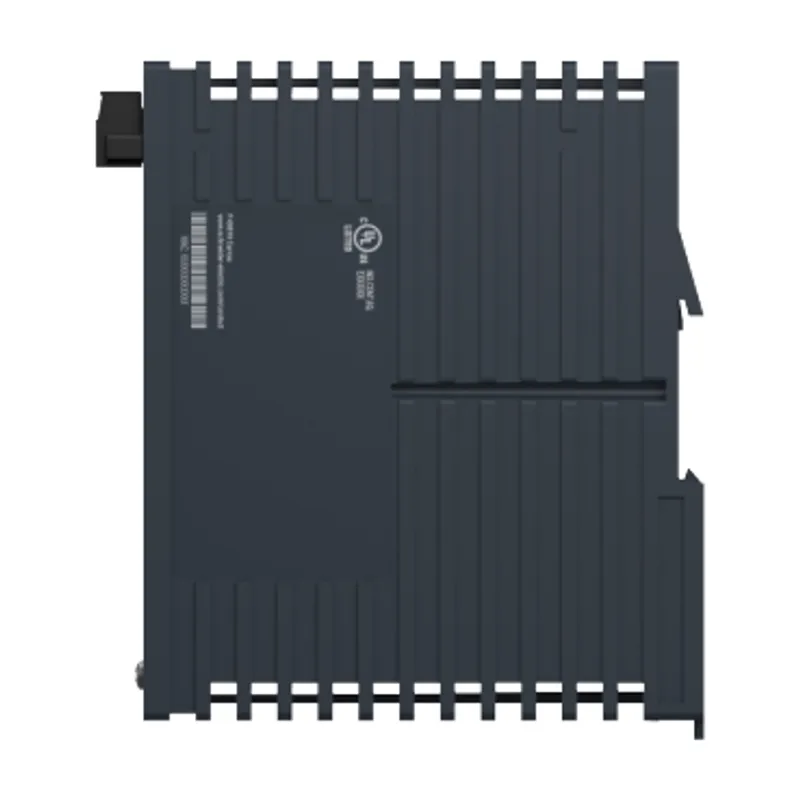

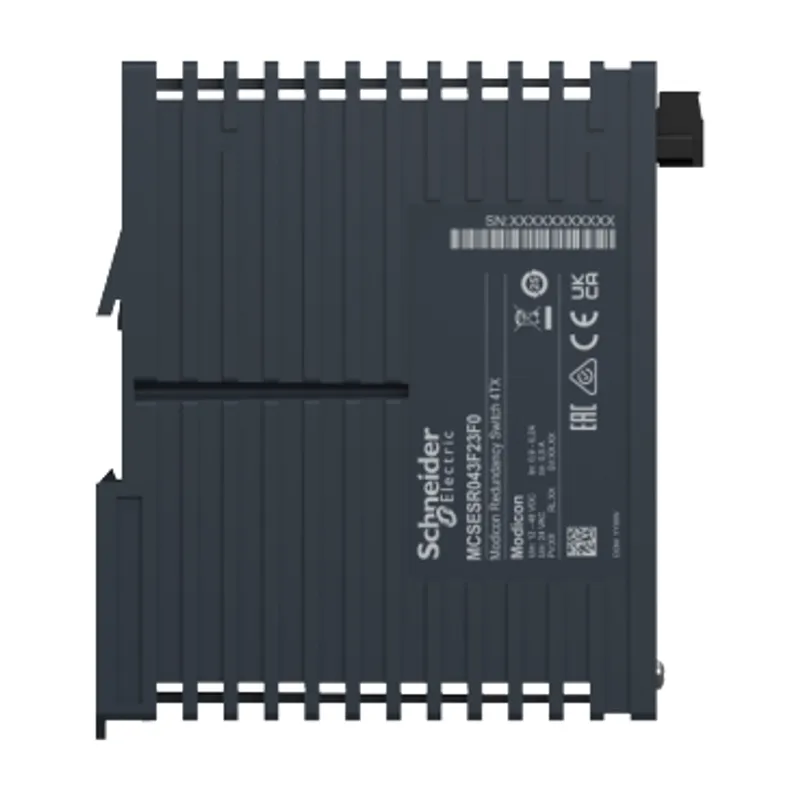

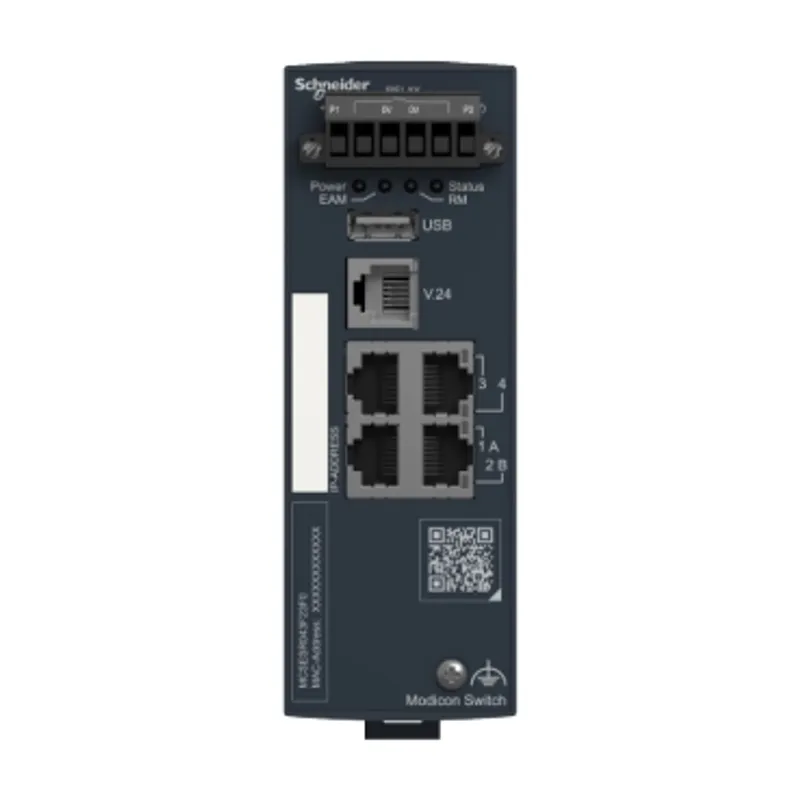

Redundancy Switch, Modicon Networking, 4 ports for copper

Name: Redundancy Switch, Modicon Networking, 4 ports for copper
Brand: Schneider Electric
SKU: MCSESR043F23F0

MPN: MCSESR043F23F0 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Modicon Networking
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.29 kg

Shipping & availability

When can MCSESR043F23F0 be shipped?

MCSESR043F23F0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MCSESR043F23F0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MCSESR043F23F0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MCSESR043F23F0, subject to availability and destination.

Specifications

Range of product	Modicon Networking
Product or component type	Ethernet TCP/IP managed switch
Communication port protocol	Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, SFTP, SCP, LLDP, Telnet, SNTP
Port Ethernet	10/100BASE-TX - 4 port(s) copper cable
Maximum number of switches in cascade	Unlimited
Cybersecurity	IP-based port security, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging
Integrated connection type	Shielded RJ45 copper cable
Transmission support medium	Twisted shielded pairs cable CAT 5E for copper cable
Maximum cable distance between devices	100 m copper cable
Ethernet service	Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG
Communication service	TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection
Diagnostics run time	Signal contact, Self test, MAC notification
Redundancy	RSTP, Link aggregation, Link backup, MRP, PRP
[Us] rated supply voltage	12...48 V, 24 V
Supply voltage limits	9.6…60 V DC SELV, 18…30 V AC SELV
Power consumption in W	7 W
Electrical connection	Removable connector 6 ways power supply
Mounting support	35 mm symmetrical DIN rail
Marking	CE, CULus, RCM
Function available	System information, Alarms (Traps)
Local signalling	1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for ring manager, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for channel diagnostic
Alarm output	1 voltfree contact 1000 mA
Alarm function	Power supply fault, Data link status, Redundancy ring fault, Switch fault, Temperature threshold, Incorrect configuration, External memory removed
Ethernet cabling system	TF switches
Width	46 mm
Height	130 mm
Depth	105 mm
Net weight	0.29 kg
Ambient air temperature for operation	0…60 °C
Relative humidity	10…95 % non-condensing
IP degree of protection	IP20
Directives	2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
Standards	UL 61010-2-201, EN/IEC 61131-2
Product certifications	CE, UL, RCM, EAC, UKCA
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.200 cm
Package 1 Width	16.500 cm
Package 1 Length	24.100 cm
Package 1 Weight	425.000 g
Unit Type of Package 2	S04
Number of Units in Package 2	20
Package 2 Height	30.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	9.421 kg
