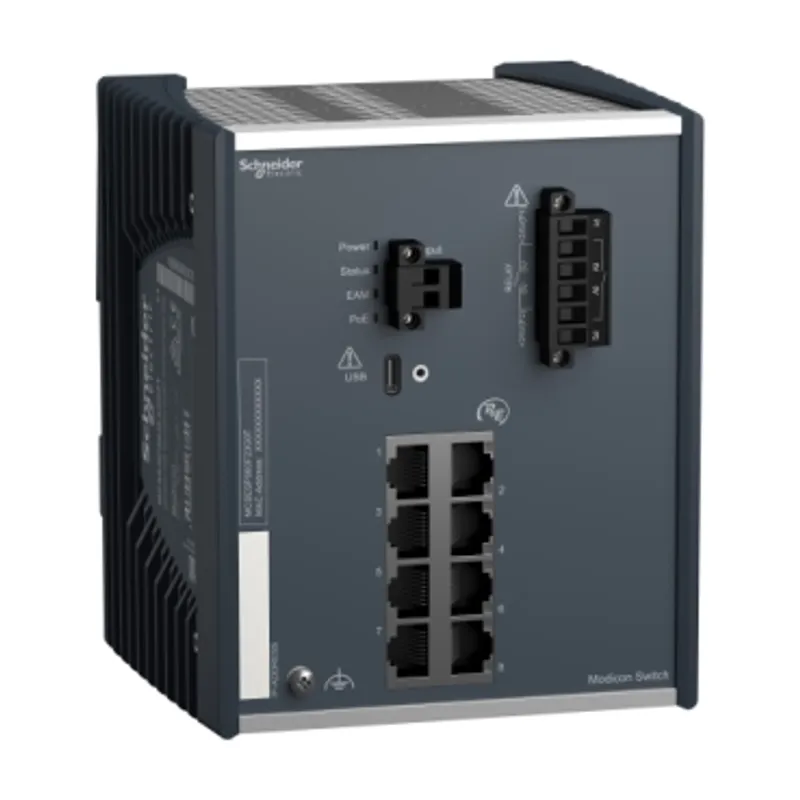

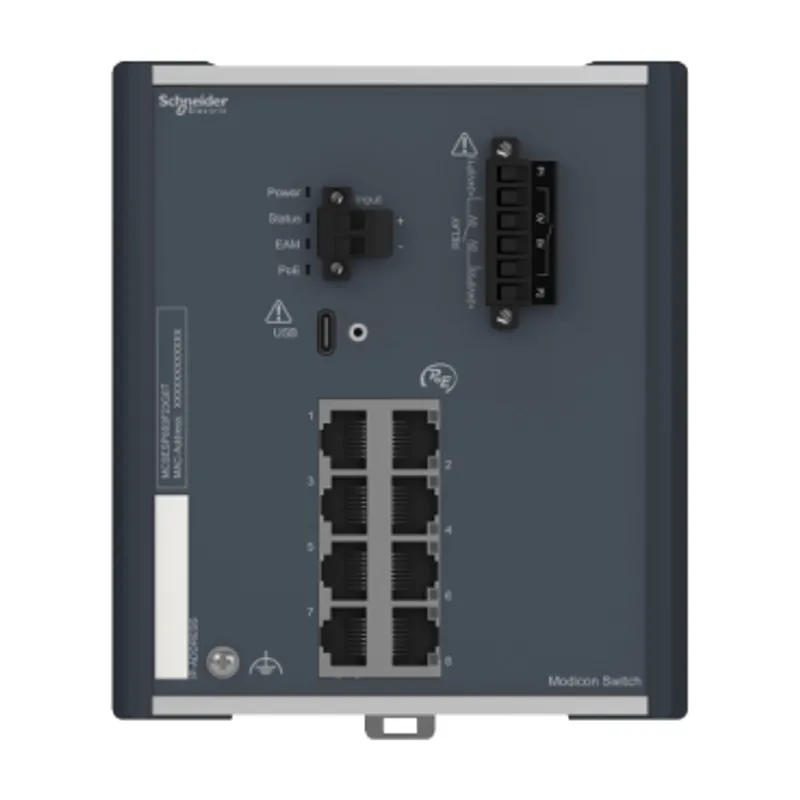

Modicon PoE (Power over Ethernet) Managed Switch - 8 Gigabit ports for copper - extended temperature
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Networking |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.4 kg |
Shipping & availability
When can MCSESP083F23G0T be shipped?
MCSESP083F23G0T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MCSESP083F23G0T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MCSESP083F23G0T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MCSESP083F23G0T, subject to availability and destination.
This product is part of the Modicon Networking range, an offer of Modicon PoE Managed Switch. This managed switch comes with Ethernet TCP/IP protocol. It comes with 8 copper cable transmission ports. It can operate between -40 to 70 degree celcius. Power over Ethernet feature is available on this switch. It provides simple and complex connectivity for multiple Ethernet device, network management, enhanced cyber security and more advanced switching features. This product works at a power consumption of 106W and a rated voltage of 24V DC. It has a removable 6-pin power supply connector. Its dimensions are 125mm (width) x 138mm (height) x 111mm (depth) and weighs 1.40 kg. It allows supplying current to a powered device, such as an IP camera, via the 4 twisted pair cable, which at the same time are used as Ethernet communiction. It is CE, UL, RCM, EAC, UKCA, DNV certified and conforms to UL 61010, EN/IEC 61131 and EN/IEC 62368-1 standards. It is designed to be mounted on a 35mm symmetrical DIN rail. It provides low power consumption and compact footprint. It also provides simple connectivity for multiple Ethernet device. The Modicon Networking range offers you a smart and flexible way to integrate Ethernet solutions into your operation, from the device level to the control network and to your corporate network.
Specifications
Specifications
| Range of product | Modicon Networking |
| Product or component type | Ethernet TCP/IP managed switch |
| Communication port protocol | Ethernet TCP/IP, SSH, HTTP, HTTPS, SNMP, RS232, SFTP, SCP, LLDP, Telnet, SNTP |
| Port Ethernet | 10/100/1000 BASE-TX - 8 port(s) copper cable |
| Maximum number of switches in cascade | Unlimited |
| Cybersecurity | Port hardening, IP-based port security, MAC-based port security, Port-based access control, Role-based access control, RADIUS assignment, HTTPS, DoS prevention, VLAN-based ACL, Audit trail, SNMP logging, Pre-login banner |
| Integrated connection type | Shielded RJ45 copper (Gbit) |
| Transmission support medium | Twisted shielded pairs cable CAT 5E for copper (Gbit) |
| Maximum cable distance between devices | 100 m copper (Gbit) |
| Ethernet service | Configuration via web server, VLAN, Multicast filtering, Data stream control, IGMP Snooping, SNMP-Traps and SYSLOG |
| Communication service | TFTP, Quality of Service (QoS), Port monitoring, Port mirroring, Address conflict detection |
| Diagnostics run time | Signal contact, Self test, MAC notification |
| Maximum number of switches in a ring | 50 |
| Redundancy | HiPER ring, RSTP, Link aggregation, Link backup, Redundant network coupling, MRP |
| [Us] rated supply voltage | 24 V |
| Supply voltage limits | 18…30 V DC SELV |
| Power consumption in W | 106 W |
| Electrical connection | Removable connector 6 ways power supply |
| Mounting support | 35 mm symmetrical DIN rail |
| Marking | CE, CULus, RCM |
| Function available | Security status, Alarms (Traps), System information, Report |
| Local signalling | 1 dual colour LED (green/yellow) for P1 P2 power supplies, 1 dual colour LED (green/red) for device status, 1 dual colour LED (green/yellow) for memory key status, 1 dual colour LED (green/yellow) for PoE power supply, 1 dual colour LED (green/yellow) for channel diagnostic |
| Alarm output | 1 voltfree contact 1 A |
| Alarm function | Power supply fault, Data link status, Switch fault, Temperature threshold, Redundancy ring fault, Incorrect configuration, External memory removed |
| Ethernet cabling system | TF switches |
| Width | 122.4 mm |
| Height | 144.2 mm |
| Depth | 117.15 mm |
| Net weight | 1.4 kg |
| Ambient air temperature for operation | -40…70 °C |
| Relative humidity | 1…95 % non-condensing |
| IP degree of protection | IP30 |
| Directives | 2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility |
| Standards | UL 61010-2-201, EN/IEC 61131-2, EN/IEC 62368-1, IEC 62443-4-2, EN 50121-4 |
| Product certifications | CE, UL, RCM, DNV, ATEX, EAC, UKCA, UKEX, CSA C22-2 No 213 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 22.5 cm |
| Package 1 Width | 20.5 cm |
| Package 1 Length | 22.5 cm |
| Package 1 Weight | 1.4 kg |
| Warranty | 18 months |
