Schneider Electric KAE1BZ

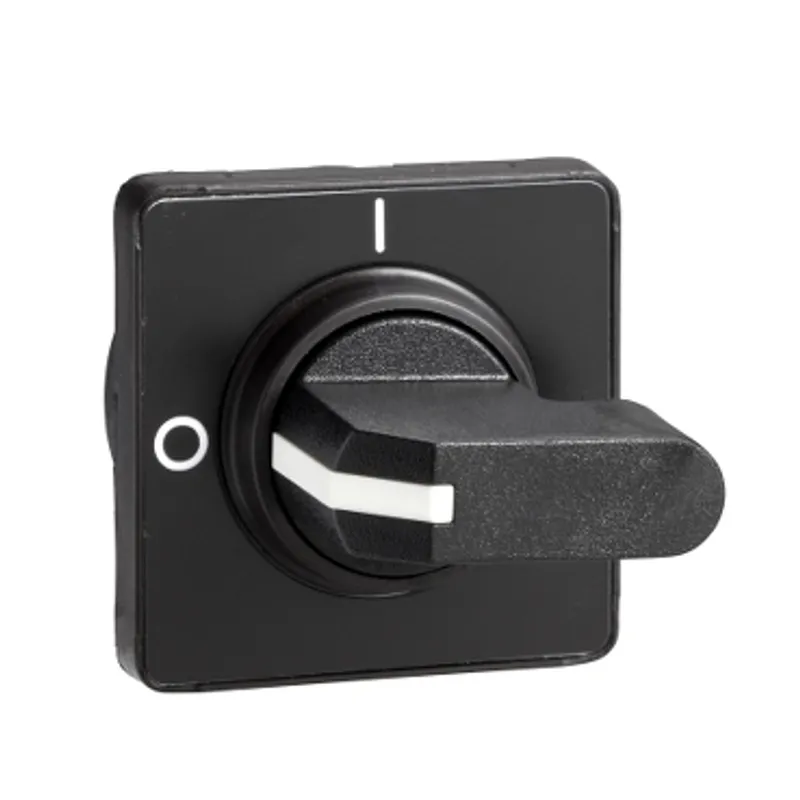

TeSys VARIO / Mini VARIO - front and black rotary handle - without padlocking
- MPN
- KAE1BZ
- EAN
- 3389110424379
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric KAE1BZ?
TeSys Vario operating handle, for TeSys Vario switch bodies VN12, VN20, V02 to V2. It provides a black handle and black front plate 45x45mm, for switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle not padlockable. Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | KAE1 |
| Product or component type | Rotary handle |
| Product compatibility | VN20, VN12, V02...V2 |
| Handle colour | Black |
| Handle front plate colour | Black |
| Rotary handle padlocking | Without |
| Marking | 0 - 1 |
| Fixing mode | By 4 screws |
| handle front plate dimension | 45 x 45 mm |
| Height | 45 mm |
| Width | 45 mm |
| Net weight | 0.04 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 6.5 cm × 6.5 cm × 8.0 cm (L × W × H), 54.0 g |
| Package 2 | 15 S02, 40.0 cm × 30.0 cm × 15.0 cm (L × W × H), 1.124 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
KAE1BZ: frequently asked questions
When can KAE1BZ be shipped?
KAE1BZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KAE1BZ in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KAE1BZ and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KAE1BZ, subject to availability and destination.
