Schneider Electric KAD1PZ

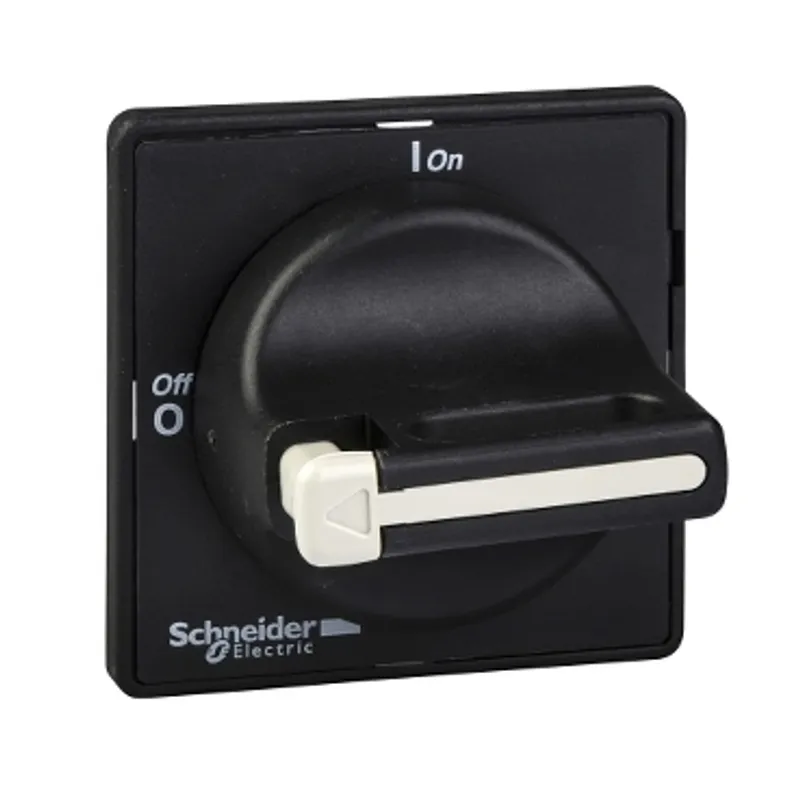

Handles and front plates,TeSys Control,black handle,black front,1-3 padlocking,fixing by single hole Ø22.5mm
- MPN
- KAD1PZ
- EAN
- 3389110725094
- Category
- TeSys Vario
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric KAD1PZ?
TeSys Vario operating handle, for TeSys Vario switch bodies VN12, VN20, V02 to V2. It provides a black handle and black front plate 60x60mm, for main switch-disconnector assembly. It operates a switch body directly or through a shaft extension (to be ordered seprately). Handle padlockable, for 3 padlocks (to be ordered separately). Front plate with I-O indicators and with a central hole fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Specifications
Specifications
| Range | TeSys |
| Device short name | KAD1 |
| Product or component type | Rotary handle |
| Product compatibility | V02...V2, VN20, VN12 |
| Handle colour | Black |
| Handle front plate colour | Black |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Fixing mode | Hole, with diameter 22.5 mm |
| handle front plate dimension | 60 x 60 mm |
| Height | 60 mm |
| Width | 60 mm |
| Net weight | 0.082 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 8.500 cm × 7.000 cm × 7.000 cm (L × W × H), 78.000 g |
| Package 2 | 45 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 4.000 kg |
