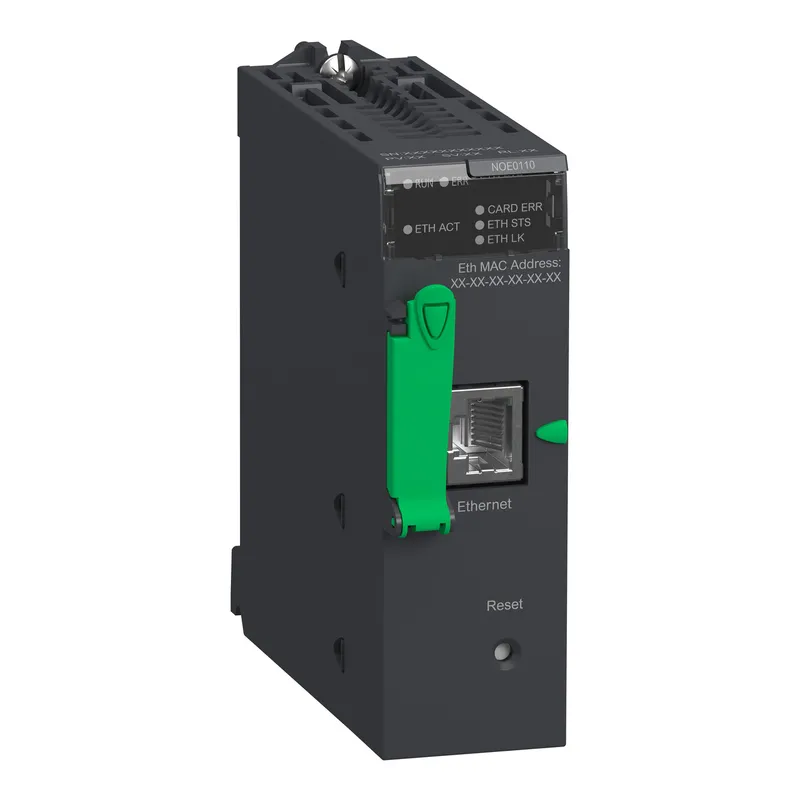

Schneider Electric BMXNOE0110
Ethernet module M340 - flash memory card - internal RAM 16 Mb - 1 x RJ45 10/100
- MPN
- BMXNOE0110
- EAN
- 3595863972856
- Category
- Modicon M340
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMXNOE0110?
This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This Ethernet TCP/IP network module supports RJ45 10/100 connection. It is a network module with a current consumption of 90mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. It is an IP20 rated product. Communication services are bandwidth management, data editor (via PC, pocket PC or PDA terminal), FDR server, rack viewer, SNMP network administrator, global data, I/O scanning, Modbus TCP messaging, web server configurable etc. It weighs 0.2kg. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M340 automation platform |
| Product or component type | Ethernet TCP/IP network module |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 |
| Protective treatment | TC |
Complementary
| Communication service | Bandwidth management; FDR server; Rack Viewer; SNMP network administrator; Global Data; I/O scanning; Modbus TCP messaging; Web server configurable; Data Editor (via PC, pocket PC or PDA terminal); SOAP XML Web service (server) |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory description | Supplied Flash memory card (BMXRWSC016M); Internal RAM 16000 kB |
| Memory usage | User web page size: internal RAM; Activating the standard web server: supplied Flash memory card (BMXRWSC016M); Application saving: supplied Flash memory card (BMXRWSC016M) |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for activity on Ethernet network (ETH ACT); 1 LED (green) for processor running (RUN); 1 LED (green) for status of Ethernet network (ETH STS); 1 LED (red) for data rate (ETH 100); 1 LED (red) for memory card fault (CARD ERR); 1 LED (red) for processor or system fault (ERR) |
| Control type | RESET push-button cold restart |
| Current consumption | 90 mA at 24 V DC |
| Module format | Standard |
| Net weight | 0.2 kg |
Environment
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
BMXNOE0110: frequently asked questions
When can BMXNOE0110 be shipped?
BMXNOE0110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BMXNOE0110 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BMXNOE0110 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BMXNOE0110, subject to availability and destination.
