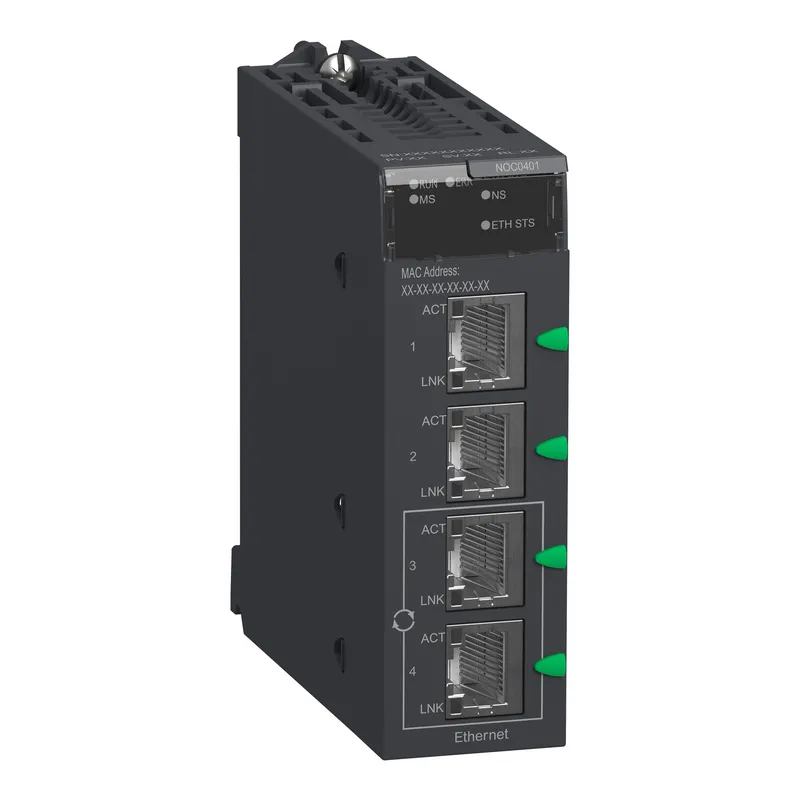

Schneider Electric BMXNOC0401
Ethernet module M340 - 4 x RJ45 10/100
- MPN
- BMXNOC0401
- EAN
- 3595864083575
- Category
- Modicon M340
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric BMXNOC0401?
This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has 4 x RJ45 10/100Mbps connections. It is a module with a current consumption of 555mA at 3.3V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, Modbus TCP I/O scanner and messaging, Ethernet/IP I/O scanner and messaging, embedded 4-port switch etc. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE, ODVA, UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC), if equipped with a standard BMXP341000 processor or BMXP3420102, BMXP3420302, BMXP3420102CL, BMXP3420302CL Performance processor. It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices. PartnerPLC sources new and surplus Schneider Electric automation parts — request a quote for price, condition and lead time.
Specifications
Main
| Range of product | Modicon M340 automation platform |
| Product or component type | Ethernet TCP/IP network module |
| Concept | Transparent Ready |
| Integrated connection type | Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30 |
| Protective treatment | TC |
Complementary
| Communication service | Bandwidth management; Data Editor (via PC terminal); FDR server; Rack Viewer; SNMP network administrator; Modbus TCP I/O Scanner and Messaging; Ethernet/IP I/O Scanner and Messaging; Embedded 4-port switch; RSTP support; Port mirroring |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Memory usage | Application saving; Activating the standard web server |
| Supply | Internal power supply via rack |
| Marking | CE |
| Local signalling | 1 LED (green) for processor running (RUN); 1 LED (red) for processor or system fault (ERR); 1 LED (amber) for status of Ethernet network (ETH STS); 1 LED (green/red) for MS (Module Status); 1 LED (green/red) for NS (Network Status) |
| Control type | Processor or system fault (ERR) |
| Current consumption | 555 mA at 3.3 V DC |
| Module format | Standard |
| Net weight | 0.2 kg |
Environment
| Ambient air temperature for operation | 0…60 °C |
| Relative humidity | 10…95 % without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2014/34/EU - ATEX directive |
| Product certifications | CE; UL; CSA; RCM; EAC; Merchant Navy; ATEX zone 2/22; IECEx zone 2/22 |
| Standards | IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; IEC 61000-6-5, interface type 1 and type 2; IEC 61850-3, location G; IEC 60079-0 |
| Environmental characteristic | Hazardous location class I division 2 |
