distributed analog input Modicon Momentum - 16 Input
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Momentum |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.22 kg |
Shipping & availability
When can 170AAI14000 be shipped?
170AAI14000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 170AAI14000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 170AAI14000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170AAI14000, subject to availability and destination.

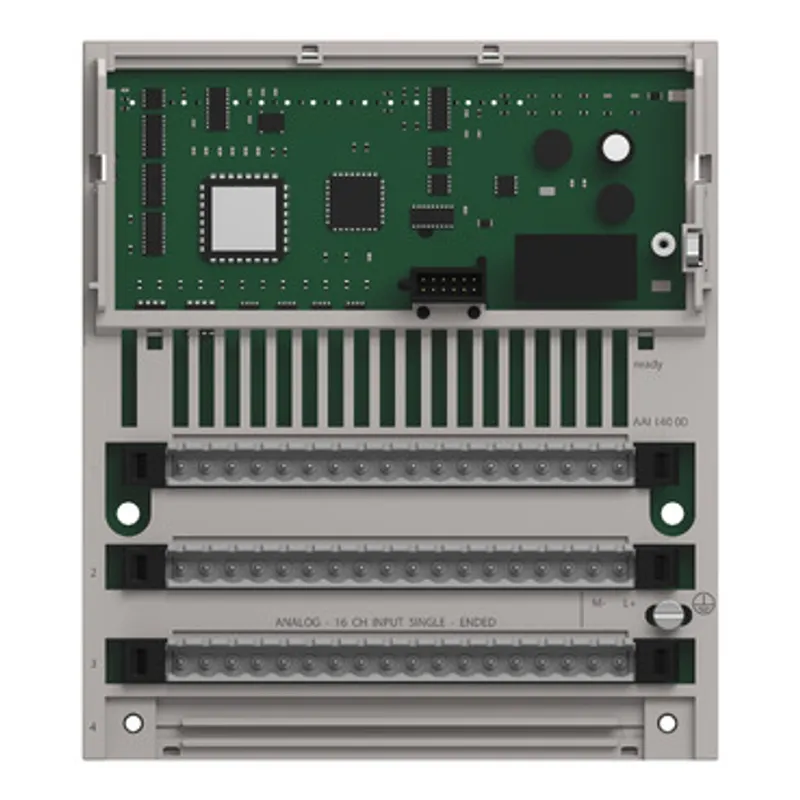

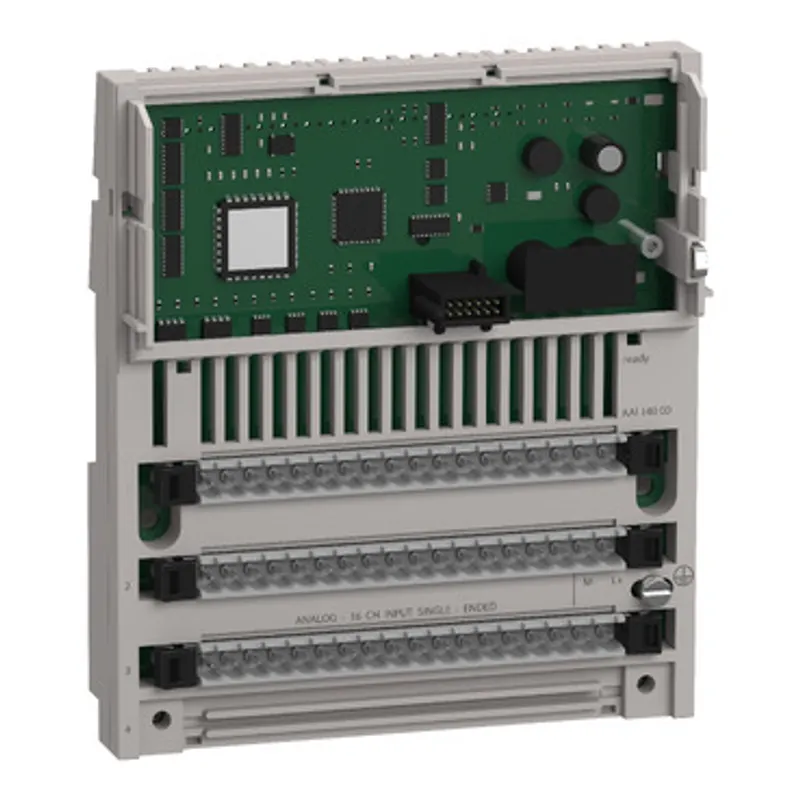

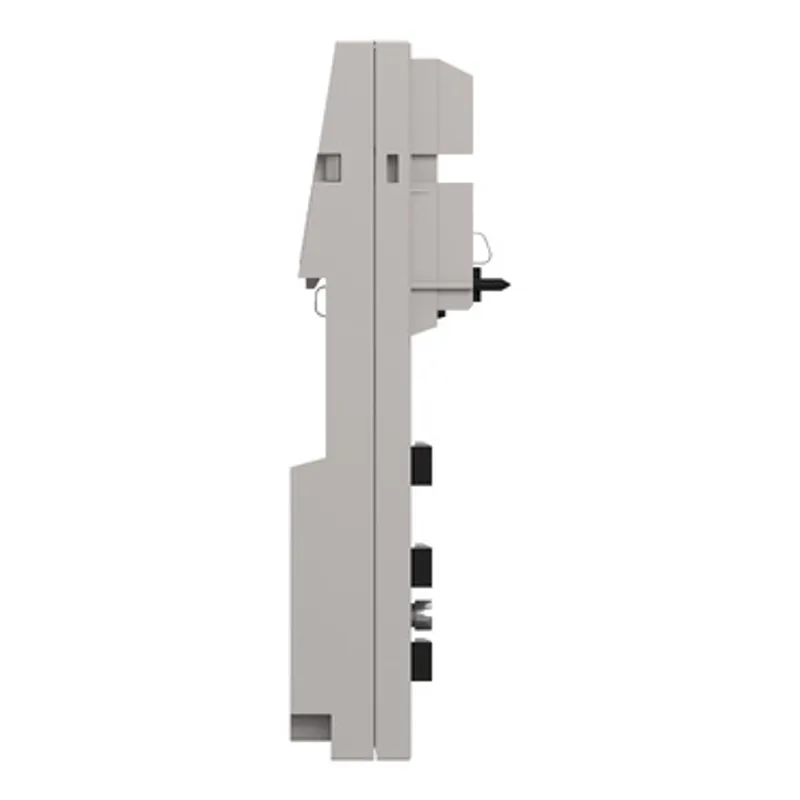

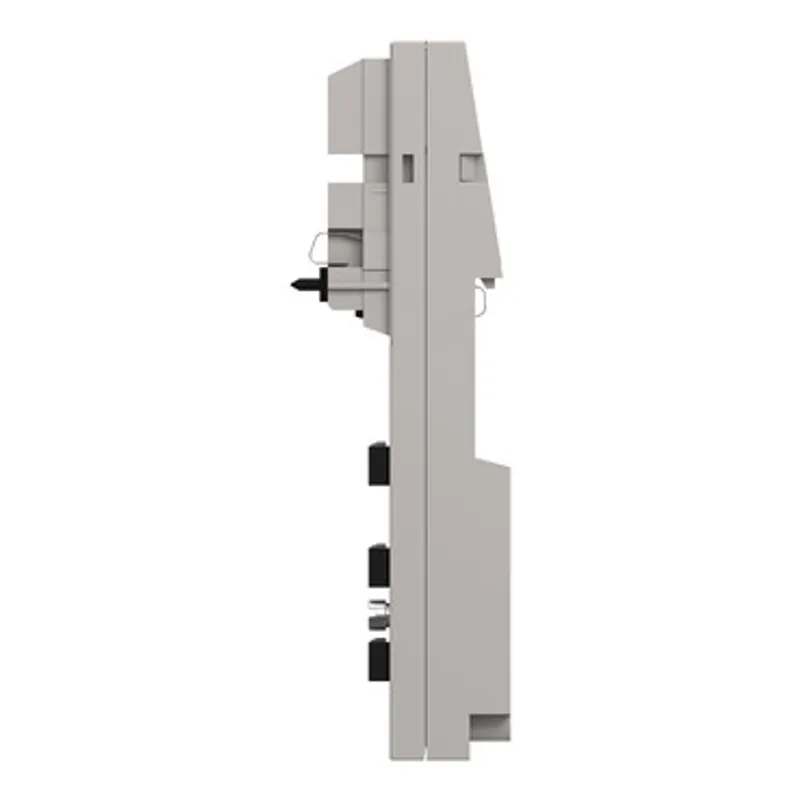

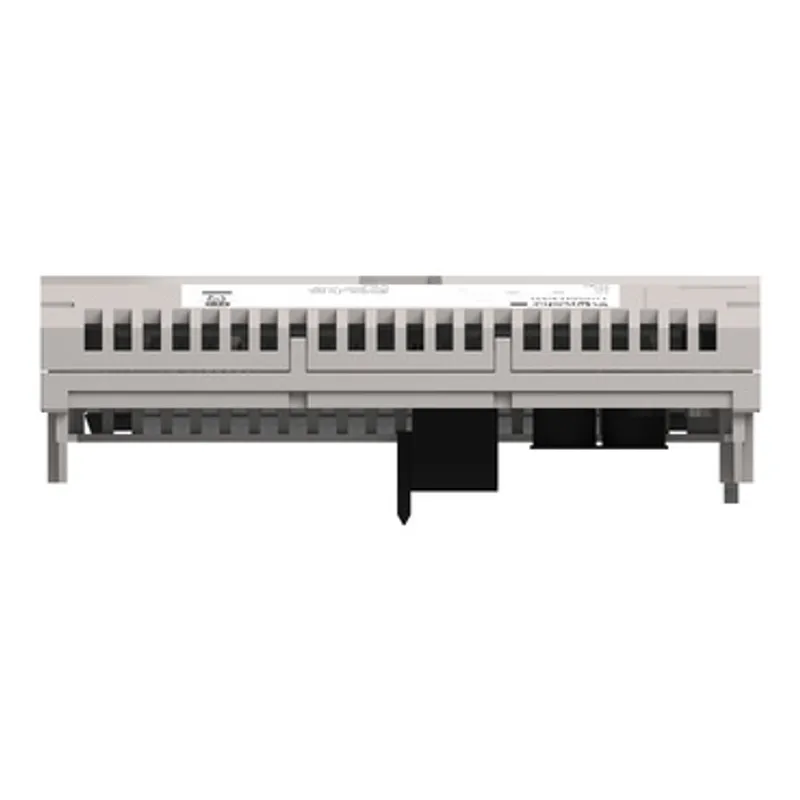

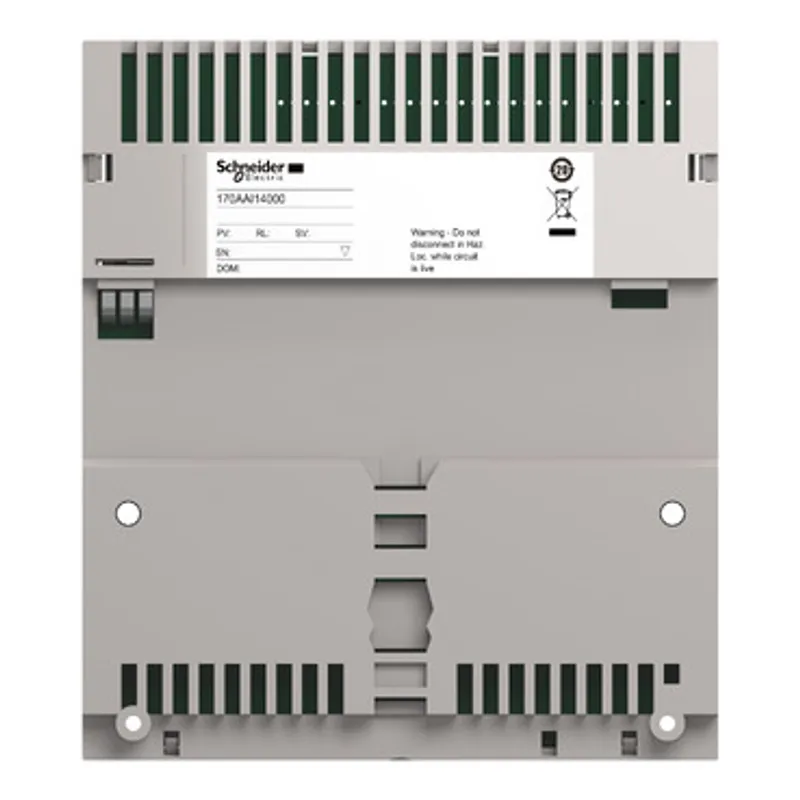

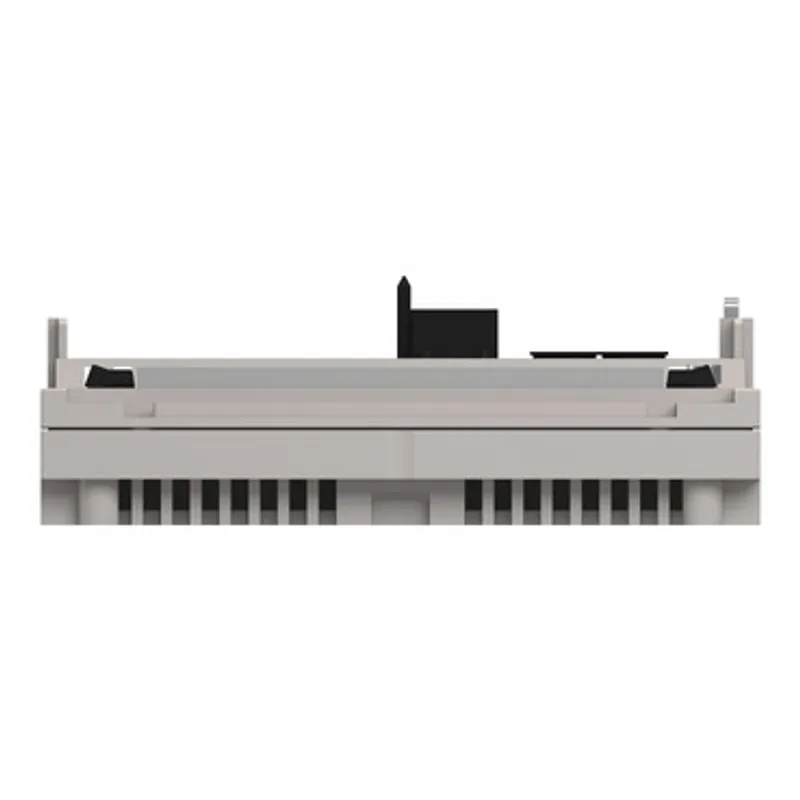

This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, ±10V, ±5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.
Specifications
Specifications
| Range of product | Modicon Momentum automation platform |
| Product or component type | Analogue input base |
| Analogue input number | 16 |
| Analogue input type | Single ended |
| Analogue input range | 4...20 mA 12 bits < 0.25 Ohm, +/- 10 V 12 bits + sign > 2200 kOhm, +/- 5 V 12 bits + sign > 2200 kOhm |
| Type of filter | Low pass input filter 10 kHz |
| Data format | Full 16 bits signed |
| Absolute accuracy error | +/- 0.15 % of full scale 25 °C +/- 10 V, +/- 0.15 % of full scale 25 °C +/- 5 V, +/- 0.25 % full scale 25 °C 4...20 mA, +/- 0.25 % full scale 60 °C +/- 10 V, +/- 0.25 % full scale 60 °C +/- 5 V, +/- 0.45 % full scale 60 °C 4...20 mA |
| Temperature drift | 30 %oFS/°C +/- 10 V 60 °C, 30 %oFS/°C +/- 5 V 60 °C, 60 %oFS/°C 4...20 mA 60 °C |
| Full scale | 10 V +/- 10 V, 16 mA 4...20 mA, 5 V +/- 5 V |
| Update time | 25 ms |
| Isolation between channels and ground | 1780 V AC for 1 minute |
| Isolation between supply and ground | 500 V for 1 minute |
| Permissible common mode voltage | 100 V 47...63 Hz DC between channels to ground, 250 V 47...63 Hz AC between channels to ground |
| External power requirement | +/- 30 V DC |
| Maximum power dissipation in W | 5.55 W |
| Reverse polarity protection | Internal |
| Protection type | Internal 2 A slow-blow |
| Associated fuse rating | 500 mA, fast blow |
| Marking | CE |
| Local signalling | 16 LEDs for channel status |
| Electrical connection | 2 connectors for removable terminal blocks |
| Current consumption | 305 mA at 24 V DC |
| Depth | 47.5 mm |
| Height | 125 mm |
| Width | 141.5 mm |
| Net weight | 0.215 kg |
| Product certifications | UL, FM Class 1 Division 2, CSA |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 18.0 cm |
| Package 1 Length | 26.0 cm |
| Package 1 Weight | 385.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 3.85 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 80 |
| Package 3 Height | 75.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 46 kg |
| Warranty | 18 months |
