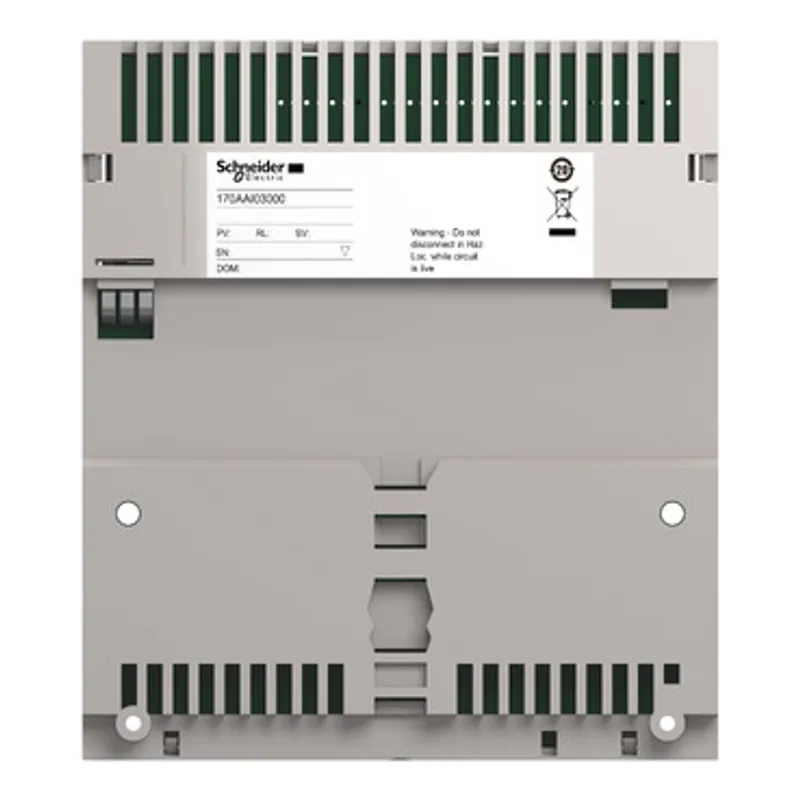

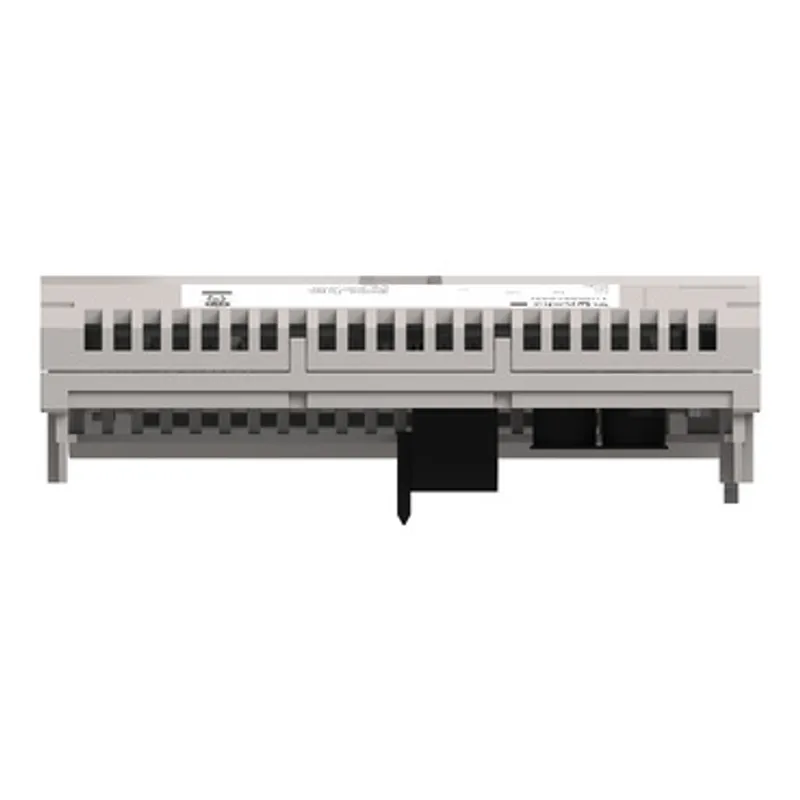

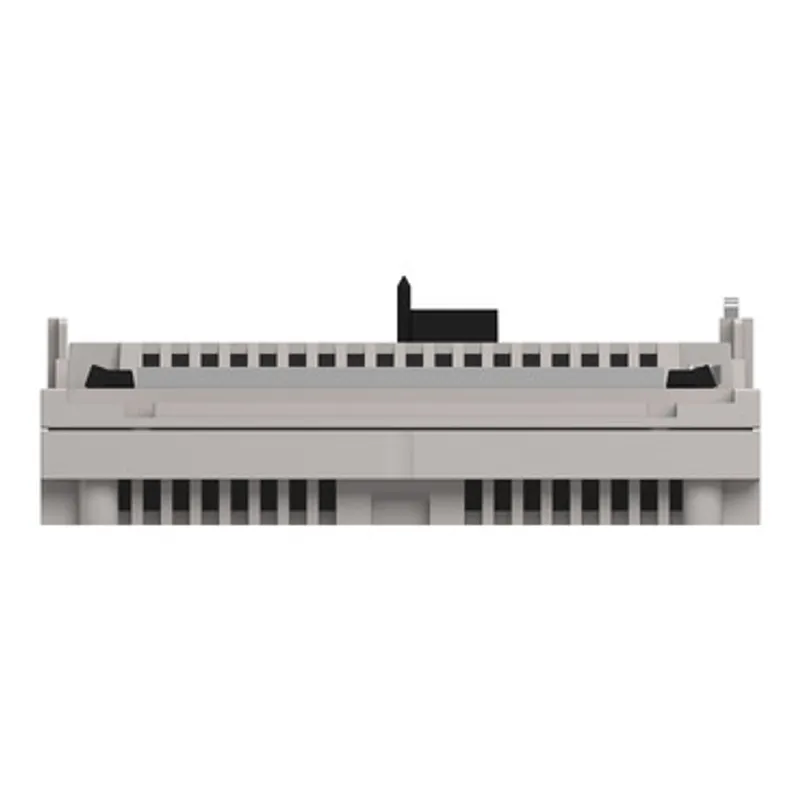

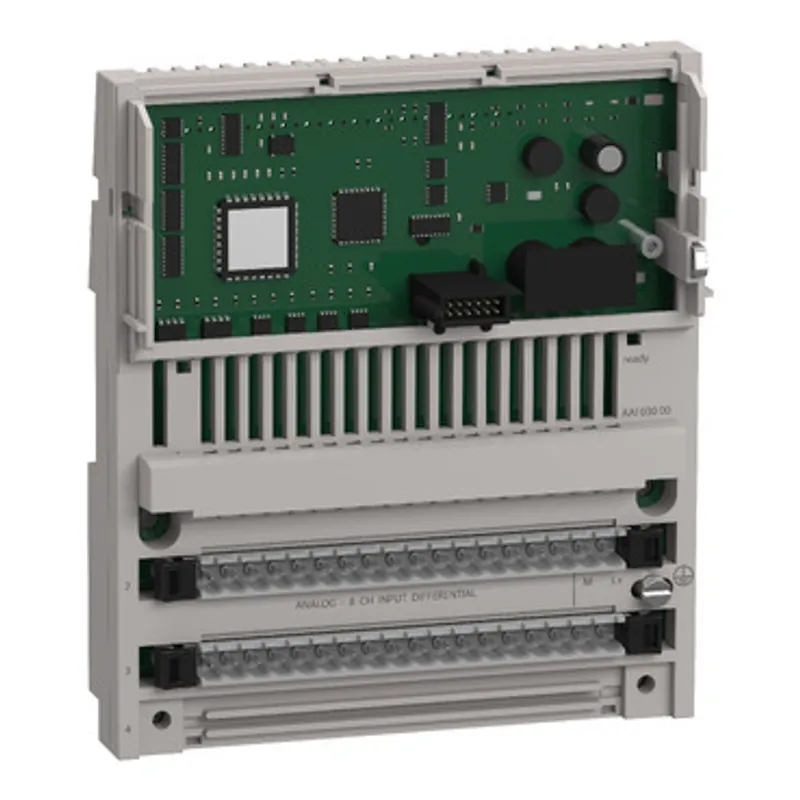

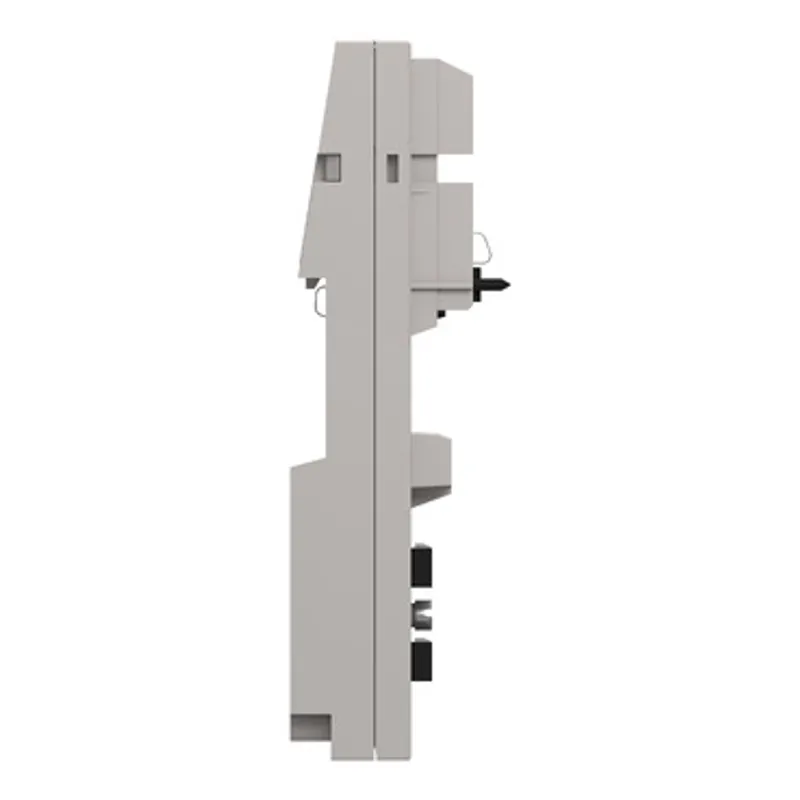

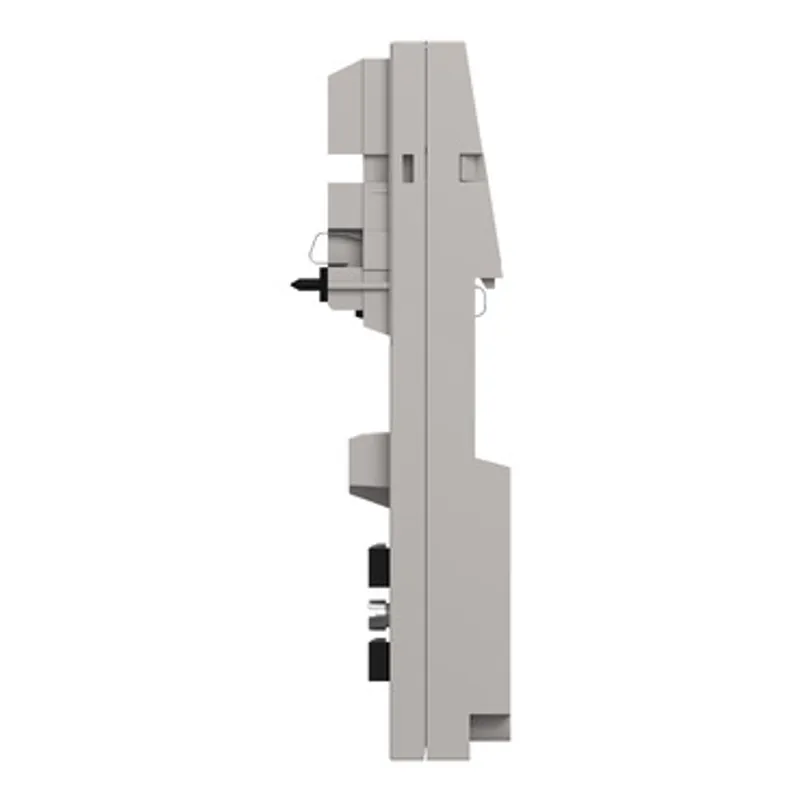

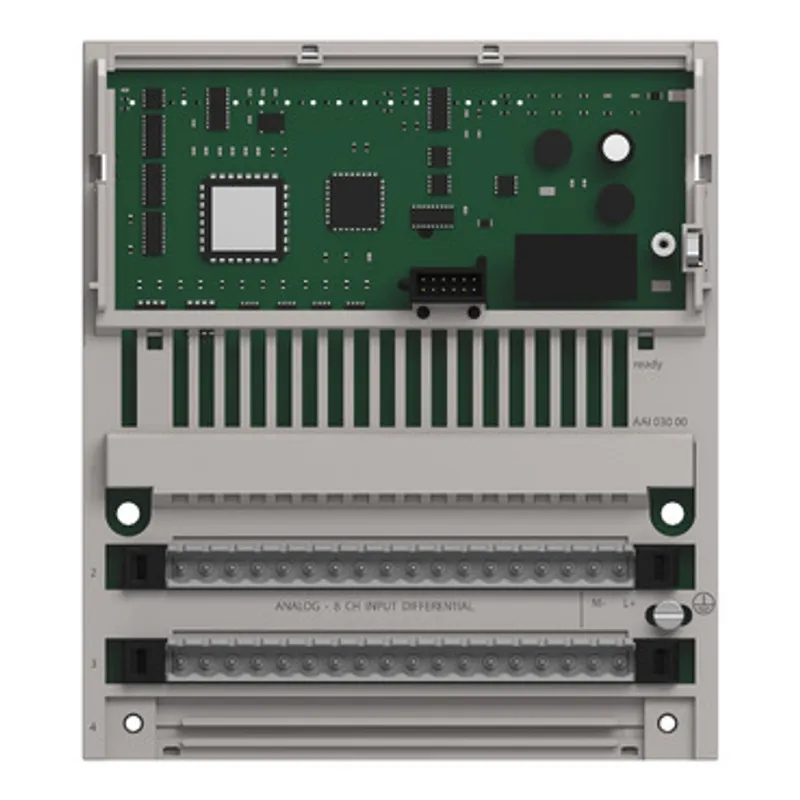

distributed analog input Modicon Momentum - 8 Input
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Modicon Momentum |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.22 kg |
Shipping & availability
When can 170AAI03000 be shipped?
170AAI03000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 170AAI03000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 170AAI03000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 170AAI03000, subject to availability and destination.
This input base is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This analog input base offers 8 inputs with a full 16bit signed resolution. It offers differential analog input ranges from ±20mA, 4mA to 20mA, ±10V, ±5V and 1V to 5V. There is an isolation between channels and bus, channels and ground at 500V AC. It is furnished with 2 removable terminal blocks for electrical connection. It features 1 LED for ready and 8 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, FM Class 1 Division 2, CSA and UL. It meets EN 50081-2 and IEC 1131 standards. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Specifications
Specifications
| Range of product | Modicon Momentum automation platform |
| Product or component type | Analogue input base |
| Analogue input number | 8 |
| Analogue input type | Differential |
| Analogue input range | +/- 20 mA 14 bits + sign 250 kOhm, 4...20 mA 15 bits + sign 250 kOhm, +/- 10 V 14 bits + sign > 0.1 kOhm, +/- 5 V 14 bits + sign > 0.1 kOhm, 1...5 V 15 bits + sign > 0.1 kOhm |
| Data format | Full 16 bits signed |
| Absolute accuracy error | +/- 0.13 % full scale 25 °C 1...5 V, +/- 0.19 % full scale 60 °C 1...5 V, +/- 0.21 % full scale 25 °C +/- 5 V, +/- 0.26 % full scale 60 °C +/- 5 V, +/- 0.27 % full scale 25 °C +/- 10 V, +/- 0.27 % full scale 25 °C 4...20 mA, +/- 0.32 % full scale 25 °C +/- 20 mA, +/- 0.32 % full scale 60 °C +/- 10 V, +/- 0.38 % full scale 60 °C 4...20 mA, +/- 0.41 % full scale 60 °C +/- 20 mA |
| Conversion time | 12 ms 8 |
| Isolation between channels | +/- 200 V DC for 1 minute |
| Isolation between channels and ground | 500 V AC for 1 minute |
| Isolation between channels and bus | 500 V AC for 1 minute |
| Permissible common mode voltage | 100 V 47...63 Hz DC between channels to ground, 250 V 47...63 Hz AC between channels to ground |
| Common mode rejection | > 80 dB between channels to ground |
| External power requirement | < 382 mA DC, 20.4...28.8 V DC, 24 V DC |
| Reverse polarity protection | Internal |
| Marking | CE |
| Local signalling | 1 LED (green) for ready, 8 LEDs for channel status |
| Electrical connection | 2 connectors for removable terminal blocks |
| Depth | 47.5 mm |
| Height | 125 mm |
| Width | 141.5 mm |
| Net weight | 0.215 kg |
| Standards | EN 50081-2, IEC 1131 |
| Product certifications | FM Class 1 Division 2, CSA, UL |
| Protective treatment | TC |
| Resistance to electrostatic discharge | 4 kV contact conforming to IEC 801-2, 8 kV on air conforming to IEC 801-2 |
| Resistance to electromagnetic fields | 10 V/m 80...1000 MHz conforming to IEC 801-3 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 5000 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 400.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.421 kg |
| Warranty | 18 months |
