Pilz 6N000028
PSEN sl2-M-VA actuator
- MPN
- 6N000028
- EAN
- 4046548092622
- Category
- PSENslock 2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 6N000028?

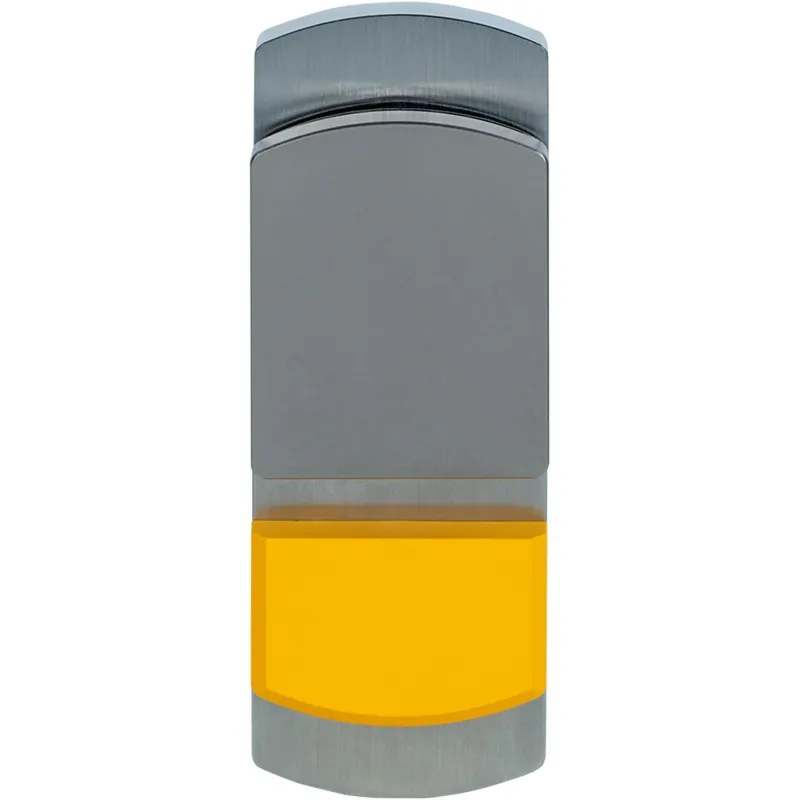

Actuator for safety guard locking device PSENslock2, base plate of stainless steel, for holding force 1000 N
Specifications
General data
| Product ID (Pilz order number) | 6N000028 |
| Approval | CE, UKCA, cULus Listed, TÜV, ECOLAB |
| Sensor principle | Transponder |
| Coding level to ISO 14119 | gering |
| Transponder coding | codiert |
| unit type | Betätiger |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -25 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | P_FEUCHTE_WERT_93 % r. F. bei 40 °C |
| EMC to standard ... | EN 55011: class A, EN 60947-5-3, EN 61326-3-1 |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Acc. shock to standard2 | 10g |
| Protection type, housing | IP67, IP6K9K |
Mechanical data
| Housing material upper part | PBT |
| Material of anchor plate | Stahl vernickelt |
| Material actuator | Edelstahl 1.4301 |
| Height dimension | 138 mm |
| Width dimension | 52 mm |
| Depth dimension | 22.5 mm |
| Net weight | 730 g |
| Gross weight | 843 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272606 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001487 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548092622 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
6N000028: frequently asked questions
When can 6N000028 be shipped?
6N000028 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6N000028 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6N000028 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6N000028, subject to availability and destination.
