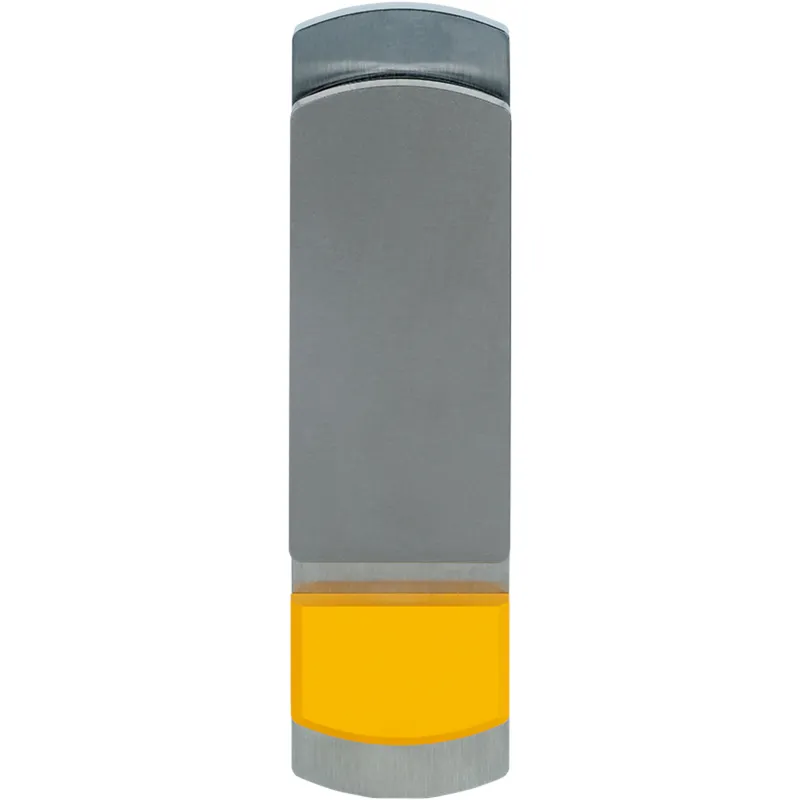

Pilz 6N000027
PSEN sl2-L-VA actuator
- MPN
- 6N000027
- EAN
- 4046548092615
- Category
- PSENslock 2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 6N000027?
Actuator for safety guard locking device PSENslock2, base plate of stainless steel, for holding force 2000 N
Specifications
General data
| Product ID (Pilz order number) | 6N000027 |
| Approval | CE, UKCA, cULus Listed, TÜV |
| Sensor principle | Transponder |
| Coding level to ISO 14119 | gering |
| Transponder coding | codiert |
| unit type | Betätiger |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature standard | EN 60068-2-14 |
| Ambient temperature | -25 °C |
| Storage temperature standard | EN 60068-2-1/-2 |
| Climatic suitability standard | EN 60068-2-78 |
| Humidity rating | 93 % r. F. bei 40 °C |
| EMC to standard ... | EN 55011: class A, EN 60947-5-3, EN 61326-3-1 |
| Vibration to standard ... | EN 60947-5-2 |
| Acc. shock to standard1 | 30g |
| Acc. shock to standard2 | 10g |
| Protection type, housing | IP67, IP6K9K |
Mechanical data
| Housing material upper part | PBT |
| Material of anchor plate | Stahl vernickelt |
| Material actuator | Edelstahl 1.4301 |
| Height dimension | 188 mm |
| Width dimension | 52 mm |
| Depth dimension | 22.5 mm |
| Net weight | 1102 g |
| Gross weight | 1230 g |
Environment
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27272606 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000026 |
| ETIM Reference Feature | EC001487 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548092615 |
| Volume | 0 dm3 |
| Harmonized System Code | 85389099 |
| Quantity per packaging unit | 1 |
