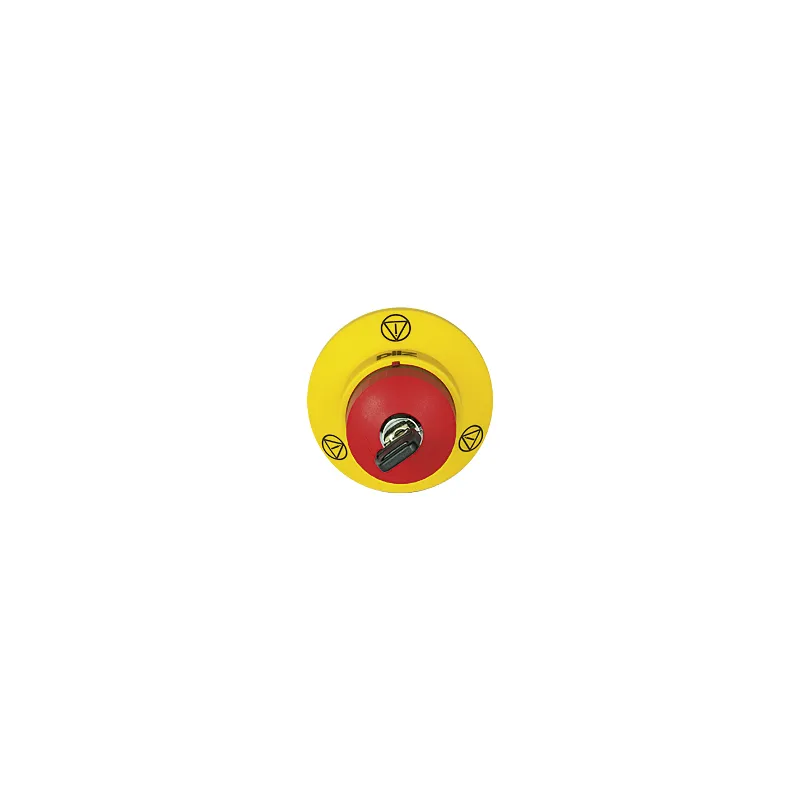

Pilz 400138
PIT es8s
- MPN
- 400138
- EAN
- 4046548071436
- Category
- PITestop - actuators
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pilz 400138?
PITestop, E-STOP pushbutton IP65, key switch, with E-STOP symbol and with logo, installation diameter: 22.3 mm.
Specifications
General data
| Product ID (Pilz order number) | 400138 |
| Approval | CE, UKCA, cULus Listed, UL Recognized Component, EAC (Eurasian), TÜV |
| Lifecycle | Active (current Pilz product) |
Environmental data
| Ambient temperature | -30 … 70 °C |
| Protection type, housing | IP65 |
Mechanical data
| Mounting position | any |
| Height dimension | 42 mm |
| Width dimension | 55 mm |
| Diameter | 55 |
| Net weight | 48 g |
| Gross weight | 61 g |
Environment
| RoHS directive | 2011/65/EU, 2015/863/EU |
| RoHS conformity | yes |
| RoHS exceptions | no |
| REACh compliance | Contains no SVHC substances |
| WEEE classification (08/2018) | 5 devices (feed size < 50cm) |
Commercial data
| ECLASS version | ECLASS-13 |
| ECLASS Reference Feature | 27371244 |
| ETIM Version | ETIM-9.0 |
| ETIM Reference Group | EG000017 |
| ETIM Reference Feature | EC002034 |
| UNSPSC 25 | 39122205 |
| GTIN | 4046548071436 |
| Volume | 0 dm3 |
| Harmonized System Code | 85365080 |
| Quantity per packaging unit | 1 |
Downloads & documentation
Official documents from Pilz, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
400138: frequently asked questions
When can 400138 be shipped?
400138 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 400138 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 400138 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 400138, subject to availability and destination.
